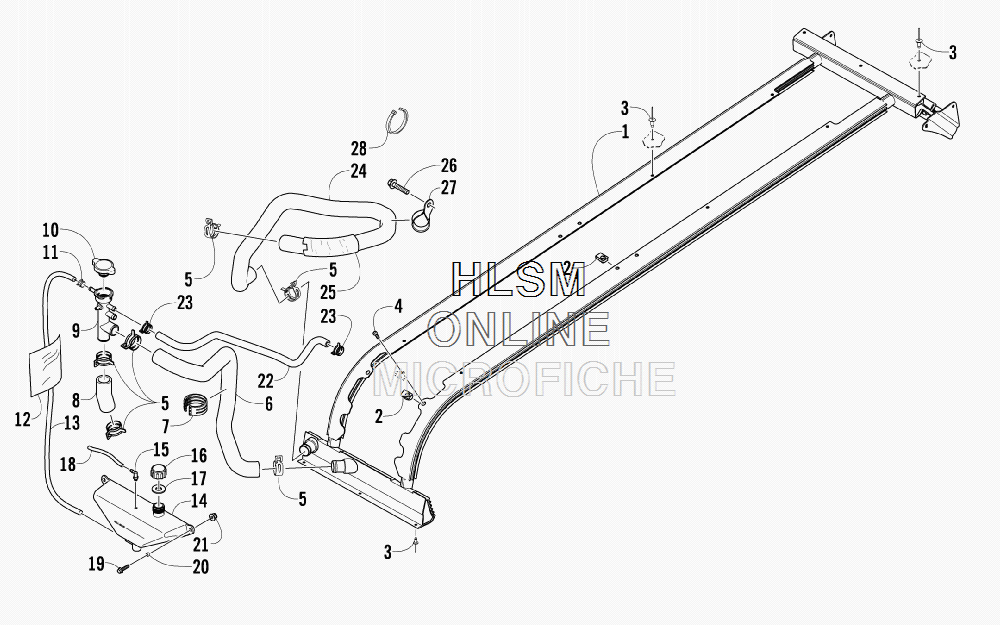

COOLING ASSEMBLY для Arctic Cat Z1 SNO PRO (GREEN) - 2011 года выпуска
-
№АртикулНазвание
-
14706-378 EXCHANGER, HEAT (INC. 2)EXCHANGER, HEAT (INC. 2)
-
21623-637 ...CLIP, U-NUT...CLIP, U-NUT
-
38060-686 RIVETRIVET
-
48470-520 SCREW, MACHINESCREW, MACHINE
-
51623-322 CLAMP, HOSECLAMP, HOSE
-
60610-778 HOSE, COOLANT - HEAT EXCHANGERHOSE, COOLANT - HEAT EXCHANGER
-
70623-540 TIE, CABLE - TRIPLETIE, CABLE - TRIPLE
-
80610-753 HOSE, COOLANT - COOLANT TANK/ENGINEHOSE, COOLANT - COOLANT TANK/ENGINE
-
91670-998 NECK, FILLERNECK, FILLER
-
102606-284 CAPCAP
-
111623-351 CLAMP, HOSE-12.32MM IDCLAMP, HOSE-12.32MM ID
-
122606-556 FOIL, PROTECTIVE,3" X 6"FOIL, PROTECTIVE,3" X 6"
-
130610-692 HOSE - GREEN - 25 FTHOSE - GREEN - 25 FT
-
130610-693 HOSE - GREEN - 100 FTHOSE - GREEN - 100 FT
-
140613-026 TANK, COOLANT (INC. 15)TANK, COOLANT (INC. 15)
-
152670-132 ...FITTING, VENT...FITTING, VENT
-
160670-035 CAP, COOLANT TANKCAP, COOLANT TANK
-
171623-834 SEALSEAL
-
180610-010 HOSE, COOLANT - 25 FTHOSE, COOLANT - 25 FT
-
198408-630 SCREW, CAPSCREW, CAP
-
205606-560 SPACERSPACER
-
218427-602 NUT, LOCKNUT, LOCK
-
220610-783 HOSE, COOLANT - BYPASSHOSE, COOLANT - BYPASS
-
231623-278 CLAMP, HOSECLAMP, HOSE
-
240610-638 HOSE, COOLANT - ENGINE/HEAT EXCHANGERHOSE, COOLANT - ENGINE/HEAT EXCHANGER
-
250610-790 CONDUIT - 5 FTCONDUIT - 5 FT
-
268408-020 SCREW, CAPSCREW, CAP
-
274606-388 BRACKET, COOLANT HOSEBRACKET, COOLANT HOSE
-
280123-788 TIE, CABLE - 8 IN.TIE, CABLE - 8 IN.
