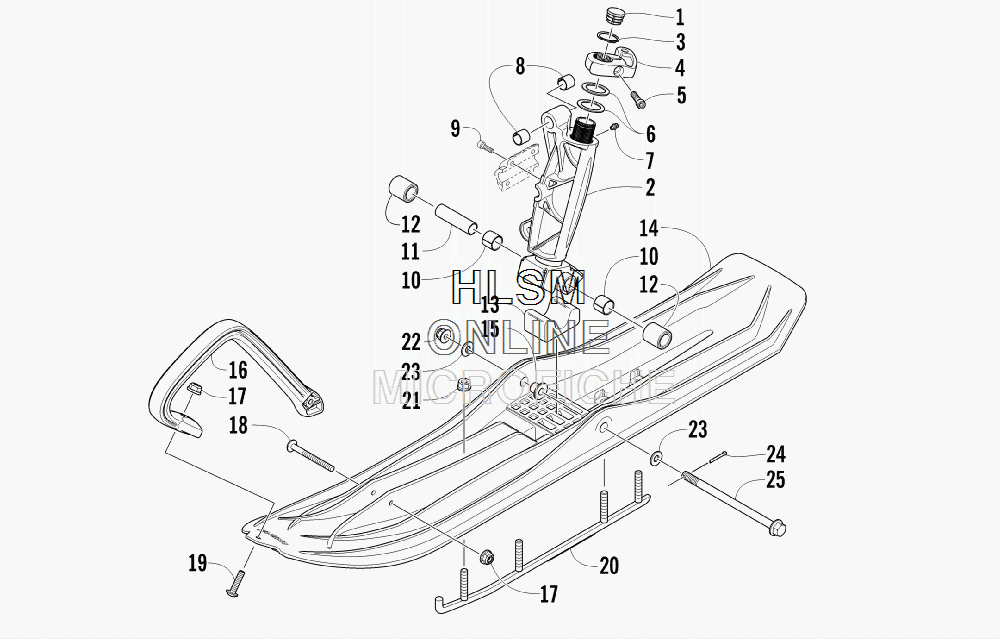

SKI AND SPINDLE ASSEMBLY для Arctic Cat BEARCAT Z1 XT (BLACK/BLUE) - 2012 года выпуска
-
№АртикулНазвание
-
10623-831 CAP, SPINDLECAP, SPINDLE
-
22703-452 SPINDLE, STEERING - RIGHT - PLATINUM (INC. 3-10)SPINDLE, STEERING - RIGHT - PLATINUM (INC. 3-10)
-
22703-453 SPINDLE, STEERING - LEFT - PLATINUM (INC. 3-10)SPINDLE, STEERING - LEFT - PLATINUM (INC. 3-10)
-
30623-796 ...RING, RETAINING...RING, RETAINING
-
44706-116 ...ARM, SPINDLE - RIGHT - PLATINUM...ARM, SPINDLE - RIGHT - PLATINUM
-
44706-117 ...ARM, SPINDLE - LEFT - PLATINUM...ARM, SPINDLE - LEFT - PLATINUM
-
50623-872 ...SCREW, CAP...SCREW, CAP
-
62603-382 ...WASHER, THRUST...WASHER, THRUST
-
71623-654 ...FITTING, GREASE...FITTING, GREASE
-
81603-895 ...BEARING...BEARING
-
91623-582 ...SCREW, CAP...SCREW, CAP
-
100603-158 ...BEARING...BEARING
-
112603-730 AXLE, SPINDLEAXLE, SPINDLE
-
122603-731 SPACERSPACER
-
130603-036 DAMPER, SKIDAMPER, SKI
-
142603-729 SKI, PLASTIC - BLACKSKI, PLASTIC - BLACK
-
152603-746 INSERTINSERT
-
162603-598 HANDLE, PLASTIC - BLACKHANDLE, PLASTIC - BLACK
-
178047-366 NUT, LOCKNUT, LOCK
-
181623-688 SCREW, MACHINESCREW, MACHINE
-
191623-689 SCREW, MACHINESCREW, MACHINE
-
200703-871 WEARBARWEARBAR
-
218047-486 NUT, LOCKNUT, LOCK
-
220423-744 NUT, LOCKNUT, LOCK
-
238050-282 WASHERWASHER
-
240123-458 PIN, COTTERPIN, COTTER
-
251623-718 SCREW, CAPSCREW, CAP
