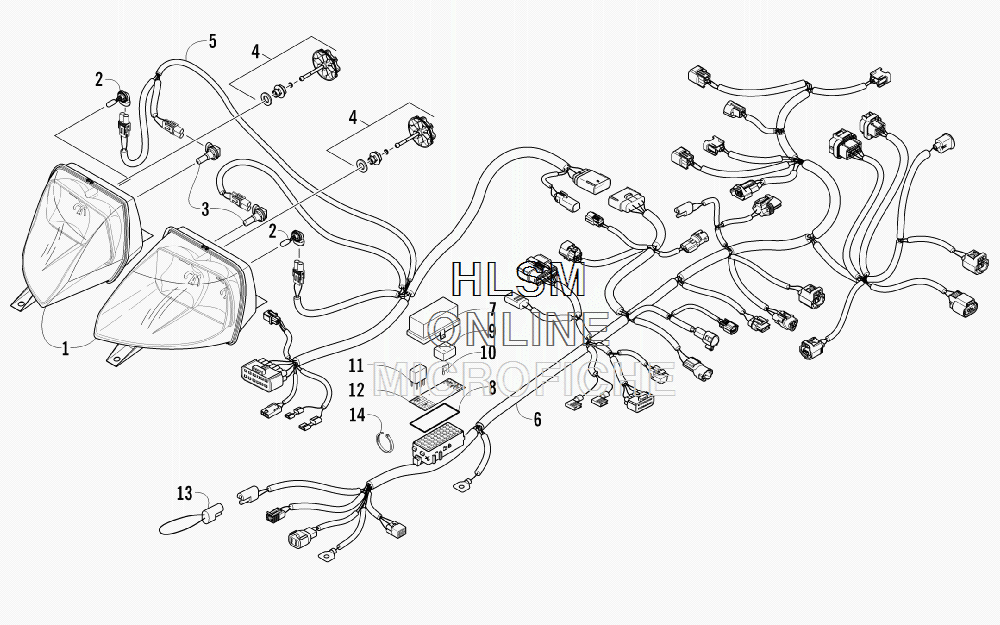

HEADLIGHT AND WIRING ASSEMBLIES для Arctic Cat BEARCAT Z1 XT LTD - 2012 года выпуска
-
№АртикулНазвание
-
10609-870 LENS/REFLECTOR - HEADLIGHT - RIGHT (INC. 2-4)LENS/REFLECTOR - HEADLIGHT - RIGHT (INC. 2-4)
-
10609-871 LENS/REFLECTOR - HEADLIGHT - LEFT (INC. 2-4)LENS/REFLECTOR - HEADLIGHT - LEFT (INC. 2-4)
-
20609-783 ...BULB, HEADLIGHT - LOW BEAM...BULB, HEADLIGHT - LOW BEAM
-
30609-782 ...BULB, HEADLIGHT - HIGH BEAM...BULB, HEADLIGHT - HIGH BEAM
-
40609-779 ...ADJUSTER, HEADLIGHT - ASSEMBLY...ADJUSTER, HEADLIGHT - ASSEMBLY
-
51686-549 HARNESS, CONSOLEHARNESS, CONSOLE
-
61686-615 HARNESS, MAIN (INC. 7-13)HARNESS, MAIN (INC. 7-13)
-
70430-085 ...COVER, FUSE BLOCK...COVER, FUSE BLOCK
-
80430-086 ...SEAL, COVER...SEAL, COVER
-
90430-037 ...HOLDER, FUSE...HOLDER, FUSE
-
100430-031 ...FUSE - 15 AMP...FUSE - 15 AMP
-
100430-098 ...FUSE - 20 AMP...FUSE - 20 AMP
-
100430-099 ...FUSE - 25 AMP...FUSE - 25 AMP
-
100430-030 ...FUSE - 30 AMP...FUSE - 30 AMP
-
110430-045 ...RELAY (4-PIN) - 20 AMP...RELAY (4-PIN) - 20 AMP
-
110430-033 ...RELAY (5-PIN) - 30 AMP...RELAY (5-PIN) - 30 AMP
-
128611-663 ...DECAL, FUSE BLOCK...DECAL, FUSE BLOCK
-
130486-164 ...TETHER, ACCESSORY CONNECTOR...TETHER, ACCESSORY CONNECTOR
-
140123-788 TIE, CABLE - 8 IN.TIE, CABLE - 8 IN.
-
140123-903 TIE, CABLE - 11.5 IN.TIE, CABLE - 11.5 IN.
