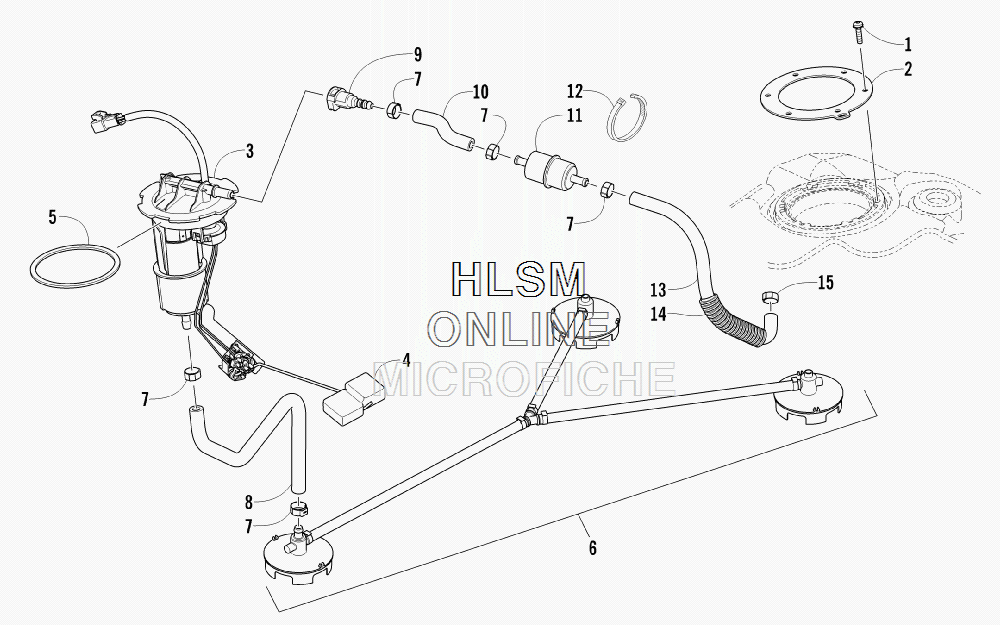

FUEL PUMP ASSEMBLY для Arctic Cat F 1100 SNO PRO - ANNIVERSARY EDITION (INTERNATIONAL) - 2012 года выпуска
-
№АртикулНазвание
-
10423-898 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
22670-042 PLATE, RETAINING - FUEL PUMPPLATE, RETAINING - FUEL PUMP
-
32670-274 PUMP, FUEL - ASSEMBLY (INC. 4)PUMP, FUEL - ASSEMBLY (INC. 4)
-
42670-235 ...FLOAT...FLOAT
-
50470-838 SEALSEAL
-
62670-301 PICKUP, FUEL - ASSEMBLYPICKUP, FUEL - ASSEMBLY
-
70610-563 CLAMP, HOSECLAMP, HOSE
-
82670-272 HOSE, FUEL PUMP/PICKUPHOSE, FUEL PUMP/PICKUP
-
92670-141 FITTING, QUICK-CONNECTFITTING, QUICK-CONNECT
-
100610-875 HOSE, GASLINE - PUMP/FILTERHOSE, GASLINE - PUMP/FILTER
-
111670-825 FILTER, FUELFILTER, FUEL
-
120123-788 TIE, CABLE - 8 IN.TIE, CABLE - 8 IN.
-
120623-751 TIE, CABLE - 11.75 IN.TIE, CABLE - 11.75 IN.
-
130610-873 HOSE, GASLINE - FILTER/THROTTLE BODYHOSE, GASLINE - FILTER/THROTTLE BODY
-
140619-776 CONDUIT, FLEXIBLE - 5 FTCONDUIT, FLEXIBLE - 5 FT
-
150610-419 CLAMP, HOSECLAMP, HOSE
