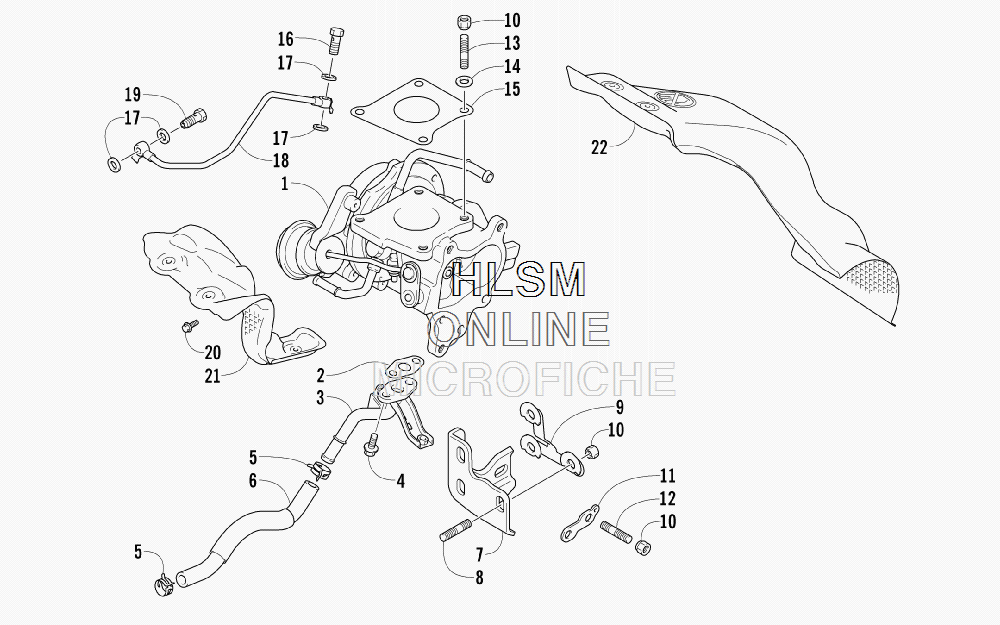

TURBOCHARGER ASSEMBLY для Arctic Cat F 1100 Turbo LXR (BLACK) - 2012 года выпуска
-
№АртикулНазвание
-
13007-806 TURBOCHARGER ASSY.TURBOCHARGER ASSY.
-
23007-814 GASKETGASKET
-
33007-813 FITTING, OIL DRAINFITTING, OIL DRAIN
-
43007-371 SCREW, CAPSCREW, CAP
-
53006-855 CLAMP, HOSECLAMP, HOSE
-
63007-815 HOSE, DRAINHOSE, DRAIN
-
73007-797 MOUNT, TURBOCHARGERMOUNT, TURBOCHARGER
-
83007-415 BOLT, STUDBOLT, STUD
-
93007-800 RETAINER, BRACKETRETAINER, BRACKET
-
103006-111 NUTNUT
-
113007-799 RETAINER, BRACKETRETAINER, BRACKET
-
123007-798 BOLT, STUDBOLT, STUD
-
133007-807 BOLT, STUDBOLT, STUD
-
143007-793 WASHERWASHER
-
153007-801 GASKET, EXHAUST MANIFOLD/TURBOCHARGERGASKET, EXHAUST MANIFOLD/TURBOCHARGER
-
163007-811 BOLT, UNIONBOLT, UNION
-
173006-112 GASKETGASKET
-
183007-898 LINE, OILLINE, OIL
-
193006-892 BOLT, UNIONBOLT, UNION
-
203007-804 SCREW, CAPSCREW, CAP
-
213007-803 SHIELD, HEAT - LOWERSHIELD, HEAT - LOWER
-
223007-805 SHIELD, HEAT - UPPERSHIELD, HEAT - UPPER
