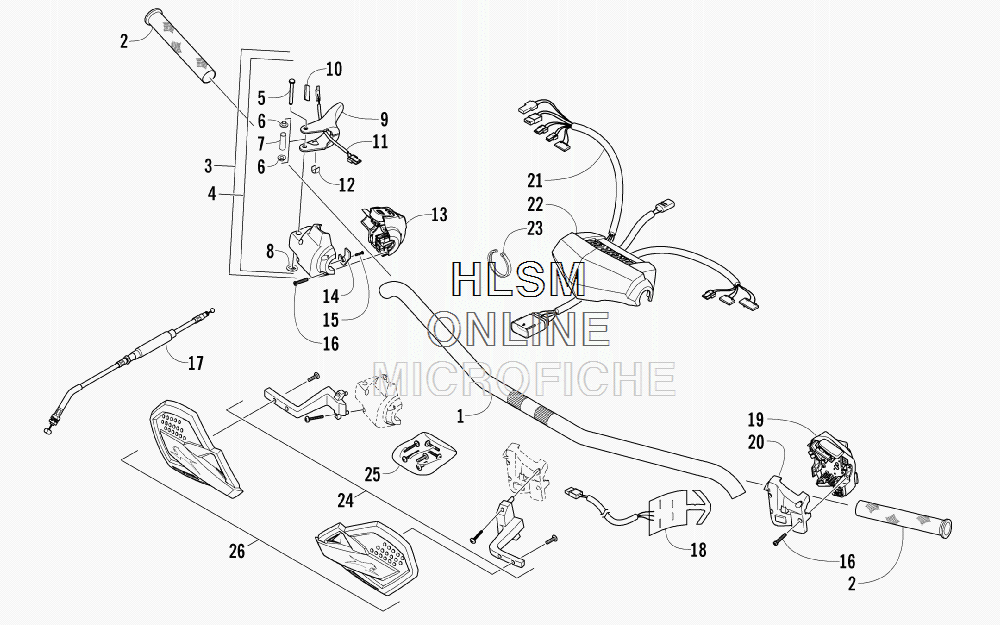

HANDLEBAR AND CONTROLS для Arctic Cat F 1100 TURBO SNO PRO LTD - 2012 года выпуска
-
№АртикулНазвание
-
11705-092 HANDLEBAR - BLACKHANDLEBAR - BLACK
-
24606-945 GRIP, HANDLEBARGRIP, HANDLEBAR
-
30609-882 CONTROL, THROTTLE - REAR (INC. 4-9)CONTROL, THROTTLE - REAR (INC. 4-9)
-
40609-859 ...KIT, THROTTLE LEVER MOUNTING (INC. 5-8)...KIT, THROTTLE LEVER MOUNTING (INC. 5-8)
-
80123-766 ......NUT, PUSH - INCLUDED IN KIT......NUT, PUSH - INCLUDED IN KIT
-
90609-795 ...LEVER, THROTTLE...LEVER, THROTTLE
-
100617-248 PAD, INSULATORPAD, INSULATOR
-
110609-827 ELEMENT, THUMBWARMERELEMENT, THUMBWARMER
-
120609-595 CLIP, RETAININGCLIP, RETAINING
-
130609-884 CONTROL, THROTTLE - FRONTCONTROL, THROTTLE - FRONT
-
140609-792 COVER, CONNECTORCOVER, CONNECTOR
-
150609-793 SCREW, MACHINESCREW, MACHINE
-
160609-791 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
170687-227 CABLE, THROTTLECABLE, THROTTLE
-
180609-856 ELEMENT, HANDWARMER - RIGHTELEMENT, HANDWARMER - RIGHT
-
180609-857 ELEMENT, HANDWARMER - LEFTELEMENT, HANDWARMER - LEFT
-
190609-921 CONTROL, DIMMER - FRONTCONTROL, DIMMER - FRONT
-
200609-883 CONTROL, DIMMER - REARCONTROL, DIMMER - REAR
-
211686-637 HARNESS, HANDLEBARHARNESS, HANDLEBAR
-
226606-129 PAD, HANDLEBARPAD, HANDLEBAR
-
230123-811 CABLE TIE - 4 IN.CABLE TIE - 4 IN.
-
230123-788 TIE, CABLE - 8 IN.TIE, CABLE - 8 IN.
-
245639-385 KIT, HANDGUARD MOUNT (INC. 25)KIT, HANDGUARD MOUNT (INC. 25)
-
250641-258 ...KIT, HARDWARE...KIT, HARDWARE
-
265639-715 KIT, HANDGUARD - WHITEKIT, HANDGUARD - WHITE
