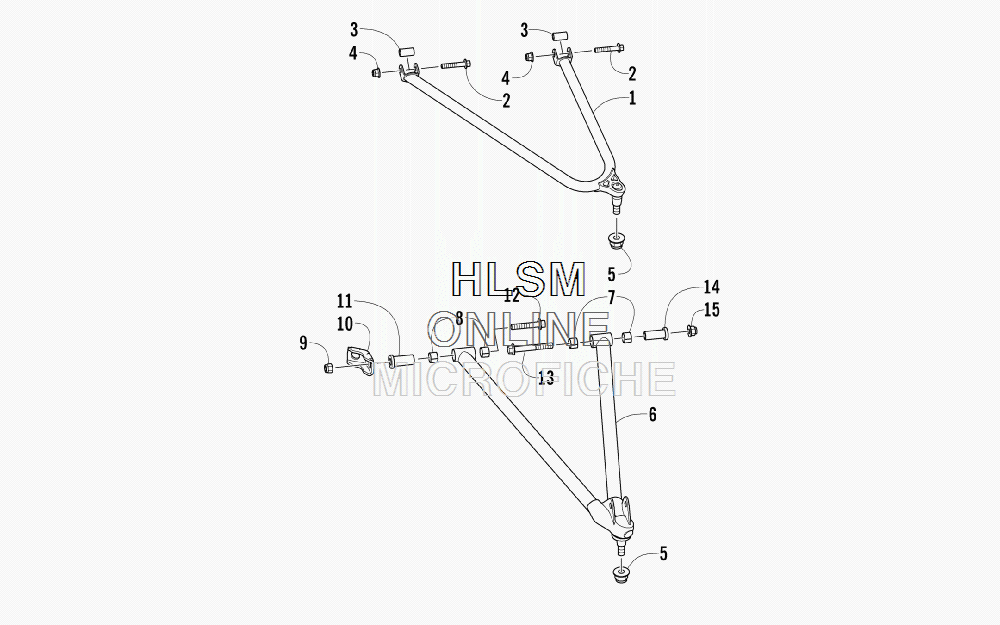

A-ARM ASSEMBLY для Arctic Cat M 1100 TURBO SNO PRO HCR - 2012 года выпуска
-
№АртикулНазвание
-
12703-852 A-ARM, UPPER RIGHT - GREENA-ARM, UPPER RIGHT - GREEN
-
12703-853 A-ARM, UPPER LEFT - GREENA-ARM, UPPER LEFT - GREEN
-
28408-845 SCREW, CAPSCREW, CAP
-
32603-841 AXLE, UPPERAXLE, UPPER
-
48427-802 NUT, LOCKNUT, LOCK
-
58427-202 NUT, LOCKNUT, LOCK
-
62703-848 A-ARM, LOWER RIGHT - GREEN (INC. 7-8)A-ARM, LOWER RIGHT - GREEN (INC. 7-8)
-
62703-849 A-ARM, LOWER LEFT - GREEN (INC. 7-8)A-ARM, LOWER LEFT - GREEN (INC. 7-8)
-
71603-895 ...BEARING...BEARING
-
82603-911 ...BEARING...BEARING
-
91623-965 NUT, LOCKNUT, LOCK
-
102603-909 BRACE, LOWER A-ARMBRACE, LOWER A-ARM
-
112603-916 AXLE, INNER - LOWER A-ARM - FRONTAXLE, INNER - LOWER A-ARM - FRONT
-
121623-953 SCREW, CAPSCREW, CAP
-
138409-075 SCREW, CAPSCREW, CAP
-
142603-543 AXLE, LOWER A-ARM - REARAXLE, LOWER A-ARM - REAR
-
158427-002 NUT, LOCKNUT, LOCK
