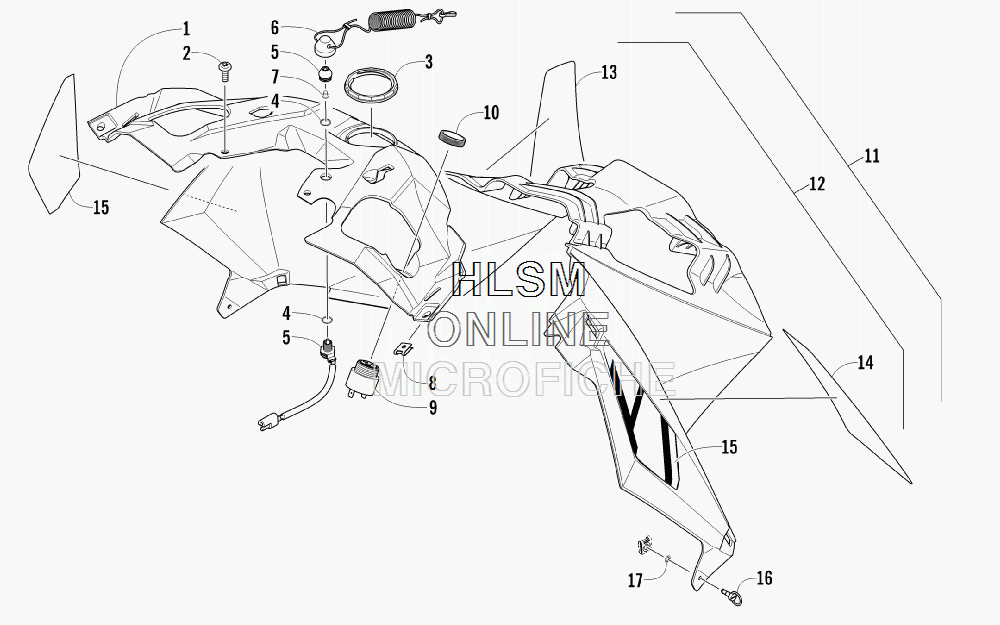

CONSOLE ASSEMBLY для Arctic Cat M 800 HCR (INTERNATIONAL) - 2012 года выпуска
-
№АртикулНазвание
-
15706-188 CONSOLE, UPPERCONSOLE, UPPER
-
20423-396 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
36606-390 NUT, RETAININGNUT, RETAINING
-
40123-985 WASHER, INTERNAL TOOTH LOCKWASHER, INTERNAL TOOTH LOCK
-
50709-071 TETHER SWITCH (INC. 6-7)TETHER SWITCH (INC. 6-7)
-
60709-055 ...TETHER CORD W/SCREW (INC. 7)...TETHER CORD W/SCREW (INC. 7)
-
70623-338 ......SCREW, SELF-TAPPING......SCREW, SELF-TAPPING
-
81623-939 CLIP, U-NUTCLIP, U-NUT
-
90630-243 ALARM, REVERSE (INC. 10)ALARM, REVERSE (INC. 10)
-
100630-017 ...RING, RETAINING...RING, RETAINING
-
113718-614 CONSOLE, LOWER W/DECALS (INC. 12-15)CONSOLE, LOWER W/DECALS (INC. 12-15)
-
123718-153 ...CONSOLE, LOWER (INC. 13-14)...CONSOLE, LOWER (INC. 13-14)
-
139611-499 ......DECAL, WARNING - ENGLISH......DECAL, WARNING - ENGLISH
-
149611-498 ......DECAL, WARNING - FRENCH......DECAL, WARNING - FRENCH
-
159611-588 ...DECAL, CONSOLE - RIGHT...DECAL, CONSOLE - RIGHT
-
159611-589 ...DECAL, CONSOLE - LEFT...DECAL, CONSOLE - LEFT
-
161623-746 PIN, RETAININGPIN, RETAINING
-
171623-747 NUT, PUSHNUT, PUSH
