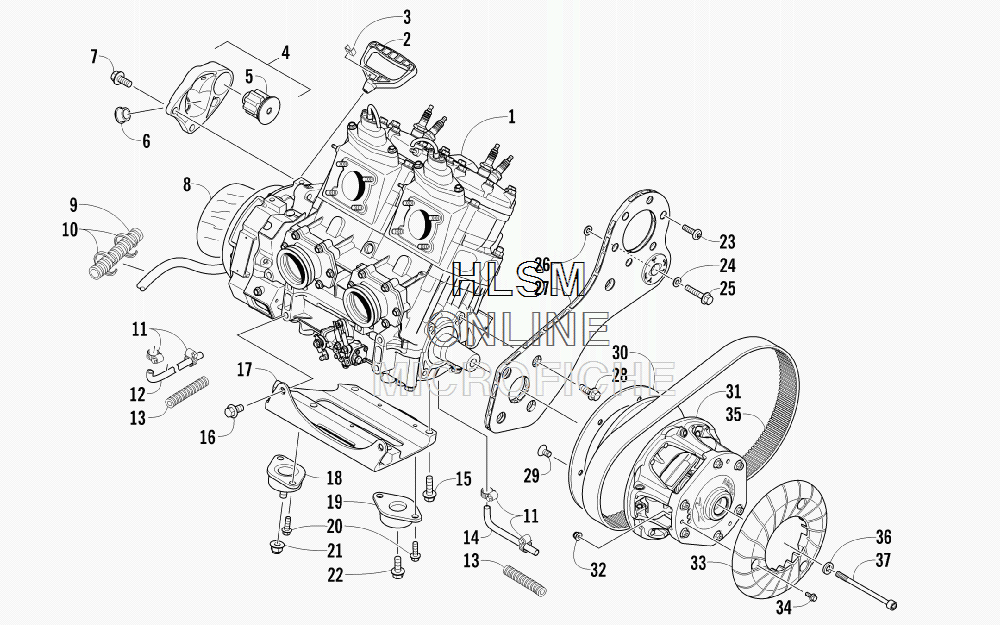

ENGINE AND RELATED PARTS для Arctic Cat M 800 SNO PRO 153 (GREEN) - 2012 года выпуска
-
№АртикулНазвание
-
10662-609 ENGINE, AB80L4 W/O EFI COMPONENTSENGINE, AB80L4 W/O EFI COMPONENTS
-
20636-363 HANDLE, RECOILHANDLE, RECOIL
-
30606-885 CAP, RECOIL HANDLECAP, RECOIL HANDLE
-
40708-582 BRACKET, ENGINE MOUNTING - MAG (INC. 5-6)BRACKET, ENGINE MOUNTING - MAG (INC. 5-6)
-
50608-630 ...MOUNT, ENGINE...MOUNT, ENGINE
-
60608-633 ...BUSHING...BUSHING
-
78409-026 SCREW, CAPSCREW, CAP
-
84606-425 FOIL, PROTECTIVEFOIL, PROTECTIVE
-
91619-131 CONDUIT, FLEXIBLE - (3/4 IN. ID) - 12 IN.CONDUIT, FLEXIBLE - (3/4 IN. ID) - 12 IN.
-
100123-788 TIE, CABLE - 8 IN.TIE, CABLE - 8 IN.
-
110623-373 CLAMP, HOSECLAMP, HOSE
-
120610-779 HOSE, COOLANT - MAG/THROTTLE BODYHOSE, COOLANT - MAG/THROTTLE BODY
-
130619-776 CONDUIT, FLEXIBLE - 5 FTCONDUIT, FLEXIBLE - 5 FT
-
140610-878 HOSE, COOLANT - PTO/THROTTLE BODYHOSE, COOLANT - PTO/THROTTLE BODY
-
158409-036 SCREW, CAPSCREW, CAP
-
168409-021 SCREW, CAPSCREW, CAP
-
170708-564 PLATE, ENGINE MOUNTING - LOWERPLATE, ENGINE MOUNTING - LOWER
-
180708-587 MOUNT, ENGINE - LOWERMOUNT, ENGINE - LOWER
-
190608-496 MOUNT, ENGINE - LOWERMOUNT, ENGINE - LOWER
-
201623-944 SCREW, SHOULDERSCREW, SHOULDER
-
218427-002 NUT, LOCKNUT, LOCK
-
228409-017 SCREW, CAPSCREW, CAP
-
238468-617 SCREW, MACHINESCREW, MACHINE
-
248050-242 WASHERWASHER
-
251623-932 SCREW, CAPSCREW, CAP
-
260623-987 WASHER, SPRINGWASHER, SPRING
-
270708-595 PLATE, ENGINE MOUNTING - PTOPLATE, ENGINE MOUNTING - PTO
-
281623-937 SCREW, CAPSCREW, CAP
-
291623-821 SCREW, MACHINESCREW, MACHINE
-
300645-410 RING, DAMPERRING, DAMPER
-
310746-435 CLUTCH, DRIVE - UNCALIBRATEDCLUTCH, DRIVE - UNCALIBRATED
-
320627-084 BELT, DRIVEBELT, DRIVE
-
331623-649 WASHER, HIGH COLLARWASHER, HIGH COLLAR
-
341623-792 BOLT, CLUTCHBOLT, CLUTCH
