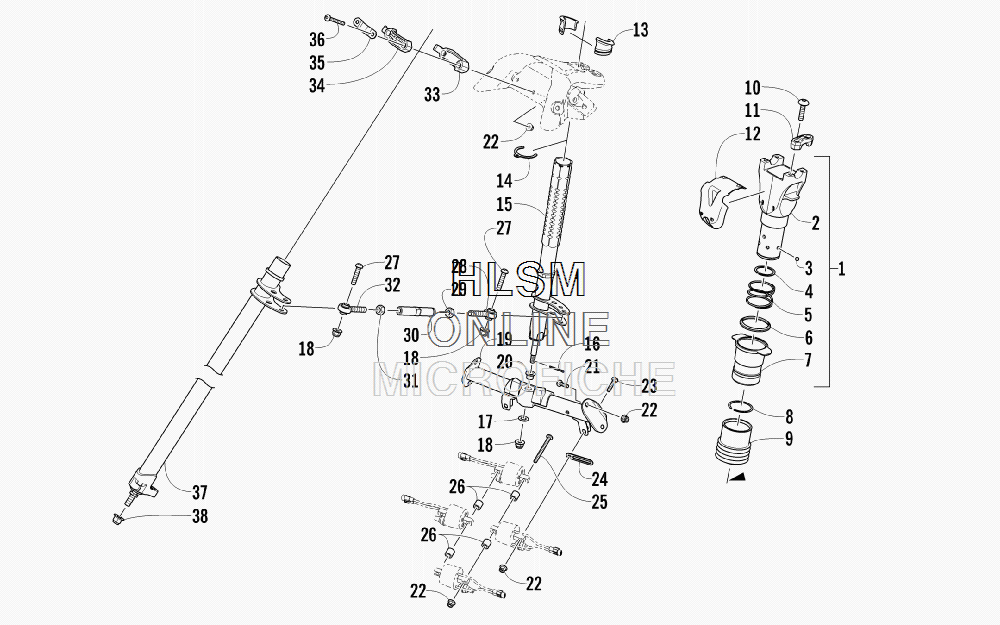

STEERING POST ASSEMBLY для Arctic Cat M 800 SNO PRO 153 (ORANGE) (INTERNATIONAL) - 2012 года выпуска
-
№АртикулНазвание
-
10705-985 BLOCK, ADJUSTING - ASSEMBLY (INC. 2-7)BLOCK, ADJUSTING - ASSEMBLY (INC. 2-7)
-
20605-713 ...BLOCK, ADJUSTING...BLOCK, ADJUSTING
-
30605-714 ...BEARING, BALL...BEARING, BALL
-
41623-506 ...RING, RETAINING...RING, RETAINING
-
50605-715 ...SPRING, COMPRESSION...SPRING, COMPRESSION
-
60605-852 ...SEAL, WIPER...SEAL, WIPER
-
71705-283 ...COLLAR, SLIDE...COLLAR, SLIDE
-
81623-507 RING, RETAININGRING, RETAINING
-
90605-992 SLEEVE, PROTECTIVESLEEVE, PROTECTIVE
-
108477-830 SCREW, MACHINESCREW, MACHINE
-
111705-408 CAP, ADJUSTING BLOCKCAP, ADJUSTING BLOCK
-
120605-867 COVER, ADJUSTING BLOCKCOVER, ADJUSTING BLOCK
-
131605-054 BEARING - RIGHTBEARING - RIGHT
-
131605-055 BEARING - LEFTBEARING - LEFT
-
141605-056 RING, RETAININGRING, RETAINING
-
151705-405 POST, STEERING - UPPERPOST, STEERING - UPPER
-
160623-175 PIN, COTTERPIN, COTTER
-
171605-067 WASHER, THRUSTWASHER, THRUST
-
188427-802 NUT, LOCKNUT, LOCK
-
191705-397 BRACKET, STEERING SUPPORT (INC. 20)BRACKET, STEERING SUPPORT (INC. 20)
-
201605-057 ...BEARING...BEARING
-
218476-625 SCREW, MACHINESCREW, MACHINE
-
228427-602 NUT, LOCKNUT, LOCK
-
238468-625 SCREW, MACHINESCREW, MACHINE
-
243002-964 CLAMP, WIRECLAMP, WIRE
-
258468-665 SCREW, MACHINESCREW, MACHINE
-
261623-041 SPACERSPACER
-
271623-913 SCREW, MACHINESCREW, MACHINE
-
281605-032 BALL JOINT, TIE ROD - RIGHT-HAND THREADBALL JOINT, TIE ROD - RIGHT-HAND THREAD
-
298420-002 NUT, HEX - RIGHT-HAND THREADNUT, HEX - RIGHT-HAND THREAD
-
301605-053 TUBE, TIE RODTUBE, TIE ROD
-
310423-013 NUT, HEX - LEFT-HAND THREADNUT, HEX - LEFT-HAND THREAD
-
321605-051 BALL JOINT, STEERING - LEFT-HAND THREADBALL JOINT, STEERING - LEFT-HAND THREAD
-
331605-043 BLOCK, MOUNTING - STEERING POST - UPPERBLOCK, MOUNTING - STEERING POST - UPPER
-
341605-044 BLOCK, MOUNTING - STEERING POST - LOWERBLOCK, MOUNTING - STEERING POST - LOWER
-
350605-998 PLATE, RETAININGPLATE, RETAINING
-
368468-655 SCREW, MACHINESCREW, MACHINE
-
371705-399 POST, STEERING - LOWERPOST, STEERING - LOWER
-
388427-002 NUT, LOCKNUT, LOCK
