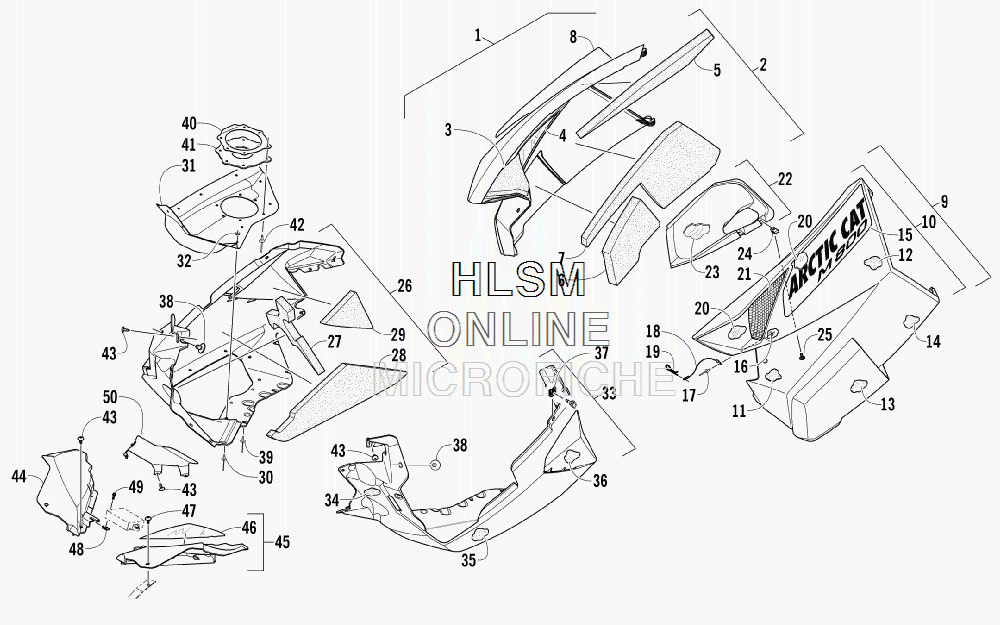

SKID PLATE AND SIDE PANEL ASSEMBLY для Arctic Cat M 800 SNO PRO LTD - 2012 года выпуска
-
№АртикулНазвание
-
13718-344 PANEL, SIDE - RIGHT W/DECALS - WHITE (INC. 2-8)PANEL, SIDE - RIGHT W/DECALS - WHITE (INC. 2-8)
-
23718-334 ...PANEL, SIDE - RIGHT W/O DECALS - WHITE (INC. 3-7)...PANEL, SIDE - RIGHT W/O DECALS - WHITE (INC. 3-7)
-
30617-626 ......FOAM, SIDE PANEL - UPPER FRONT - RIGHT......FOAM, SIDE PANEL - UPPER FRONT - RIGHT
-
46606-414 ......FOIL, PROTECTIVE - MIDDLE - RIGHT......FOIL, PROTECTIVE - MIDDLE - RIGHT
-
50617-628 ......FOAM, SIDE PANEL - UPPER REAR -......FOAM, SIDE PANEL - UPPER REAR -
-
60617-632 ......FOAM, SIDE PANEL - LOWER FRONT - RIGHT......FOAM, SIDE PANEL - LOWER FRONT - RIGHT
-
70617-634 ......FOAM, SIDE PANEL - LOWER REAR - RIGHT......FOAM, SIDE PANEL - LOWER REAR - RIGHT
-
89611-732 ...DECAL, SIDE PANEL - UPPER FRONT - RIGHT...DECAL, SIDE PANEL - UPPER FRONT - RIGHT
-
93718-345 PANEL, SIDE - LEFT W/DECALS - WHITE (INC. 10-15)PANEL, SIDE - LEFT W/DECALS - WHITE (INC. 10-15)
-
103718-335 ...PANEL, SIDE - LEFT W/O DECALS - WHITE (INC. 11-14)...PANEL, SIDE - LEFT W/O DECALS - WHITE (INC. 11-14)
-
110617-631 ......FOAM, SIDE PANEL - CENTER FRONT - LEFT......FOAM, SIDE PANEL - CENTER FRONT - LEFT
-
120617-629 ......FOAM, SIDE PANEL - UPPER REAR - LEFT......FOAM, SIDE PANEL - UPPER REAR - LEFT
-
130617-633 ......FOAM, SIDE PANEL - LOWER FRONT - LEFT......FOAM, SIDE PANEL - LOWER FRONT - LEFT
-
140617-635 ......FOAM, SIDE PANEL - LOWER REAR - LEFT......FOAM, SIDE PANEL - LOWER REAR - LEFT
-
159611-733 ...DECAL, SIDE PANEL - UPPER FRONT - LEFT...DECAL, SIDE PANEL - UPPER FRONT - LEFT
-
168050-127 WASHERWASHER
-
178060-486 RIVETRIVET
-
180607-447 CABLECABLE
-
190605-283 CLIP, HAIRPINCLIP, HAIRPIN
-
200619-206 FOIL, PROTECTIVE - 30 FTFOIL, PROTECTIVE - 30 FT
-
215706-227 SCREEN, INTAKESCREEN, INTAKE
-
221702-242 DUCT, AIR - CLUTCH (INC. 23)DUCT, AIR - CLUTCH (INC. 23)
-
236606-462 ...FOIL, PROTECTIVE...FOIL, PROTECTIVE
-
241623-030 CLIP, U-NUTCLIP, U-NUT
-
250623-797 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
263718-254 PLATE, SKID - RIGHT W/O DECALS - WHITE (INC. 27-32)PLATE, SKID - RIGHT W/O DECALS - WHITE (INC. 27-32)
-
270617-636 ...FOAM, SKID PLATE - UPPER FRONT - RIGHT...FOAM, SKID PLATE - UPPER FRONT - RIGHT
-
280617-638 ...FOAM, SKID PLATE - CENTER FRONT - RIGHT...FOAM, SKID PLATE - CENTER FRONT - RIGHT
-
290617-640 ...FOAM, SKID PLATE - UPPER REAR - RIGHT...FOAM, SKID PLATE - UPPER REAR - RIGHT
-
308061-688 ...RIVET...RIVET
-
311712-723 ...DEFLECTOR, HEAT - WHITE...DEFLECTOR, HEAT - WHITE
-
320123-802 ...WASHER...WASHER
-
333718-255 PLATE, SKID - LEFT W/O DECALS - WHITE (INC. 34-36)PLATE, SKID - LEFT W/O DECALS - WHITE (INC. 34-36)
-
340617-637 ...FOAM, SKID PLATE - UPPER FRONT - LEFT...FOAM, SKID PLATE - UPPER FRONT - LEFT
-
350617-639 ...FOAM, SKID PLATE - CENTER FRONT - LEFT...FOAM, SKID PLATE - CENTER FRONT - LEFT
-
360617-641 ...FOAM, SKID PLATE - UPPER REAR - LEFT...FOAM, SKID PLATE - UPPER REAR - LEFT
-
371623-748 CLIP, RETAININGCLIP, RETAINING
-
385606-639 PIN, RETAININGPIN, RETAINING
-
398061-708 RIVETRIVET
-
402612-685 PLATE, EXHAUST OUTLETPLATE, EXHAUST OUTLET
-
412612-554 SEAL, EXHAUST OUTLETSEAL, EXHAUST OUTLET
-
428060-508 RIVETRIVET
-
431623-129 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
446606-342 FASCIA, FRONT RIGHT - BLACKFASCIA, FRONT RIGHT - BLACK
-
453718-303 FASCIA, FRONT LEFT - BLACK (INC. 46)FASCIA, FRONT LEFT - BLACK (INC. 46)
-
466606-405 ...FOIL, PROTECTIVE...FOIL, PROTECTIVE
-
470623-784 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
480423-031 CLIP, U-NUTCLIP, U-NUT
-
498408-620 SCREW, CAPSCREW, CAP
-
506606-295 SHIELD, HEAT - ECUSHIELD, HEAT - ECU
