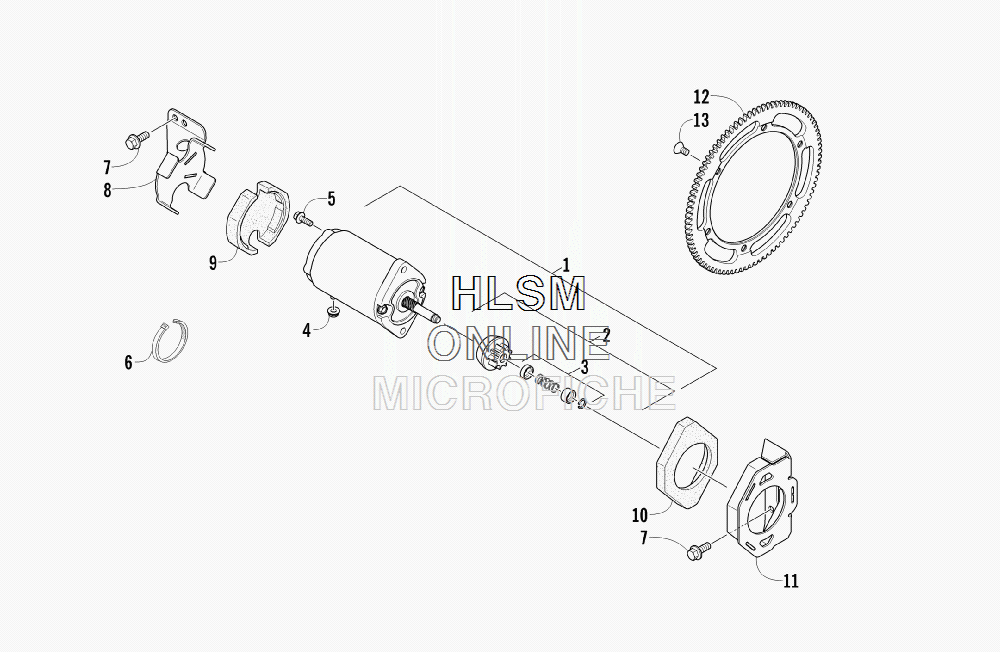

ELECTRIC START - STARTER MOTOR ASSEMBLY для Arctic Cat T570 (INTERNATIONAL) - 2012 года выпуска
-
№АртикулНазвание
-
10745-382 MOTOR, STARTER (INC. 2-4)MOTOR, STARTER (INC. 2-4)
-
20745-381 ...PINION DRIVE ASSEMBLY (INC. 3)...PINION DRIVE ASSEMBLY (INC. 3)
-
30745-380 ......KIT, PINION STOPPER......KIT, PINION STOPPER
-
48427-602 ...NUT, LOCK...NUT, LOCK
-
50623-892 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
60623-144 TIE, CABLE - 17.5 IN.TIE, CABLE - 17.5 IN.
-
71623-553 SCREW, CAPSCREW, CAP
-
80745-334 BRACKET, MOUNTING - RIGHTBRACKET, MOUNTING - RIGHT
-
90645-568 ISOLATOR, STARTER MOUNTING - RIGHTISOLATOR, STARTER MOUNTING - RIGHT
-
100645-569 ISOLATOR, STARTER MOUNTING - LEFTISOLATOR, STARTER MOUNTING - LEFT
-
110745-335 BRACKET, MOUNTING - LEFTBRACKET, MOUNTING - LEFT
-
120645-591 GEAR, RINGGEAR, RING
-
131623-821 SCREW, MACHINESCREW, MACHINE
