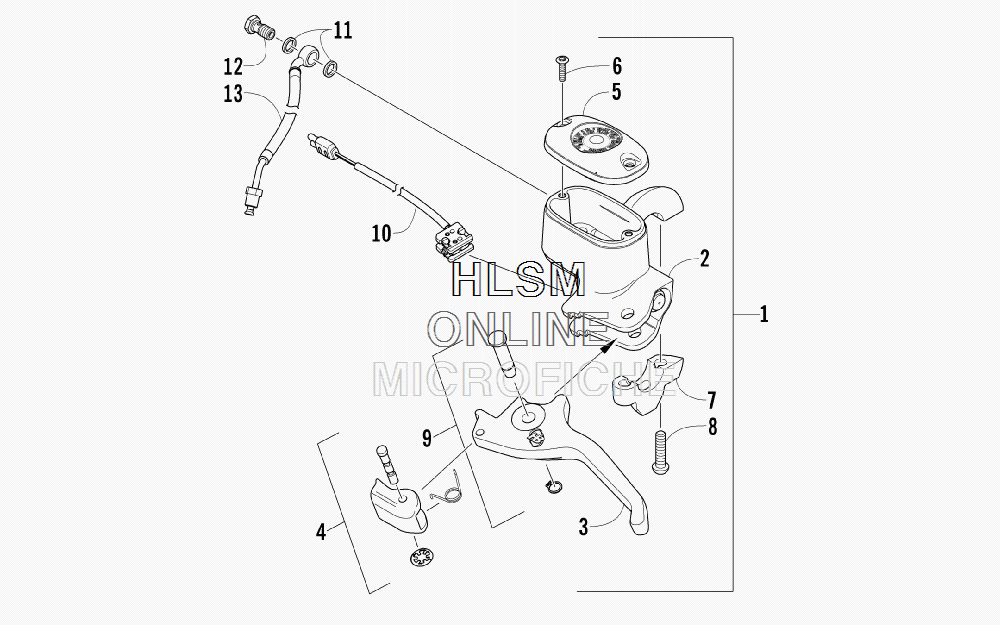

HYDRAULIC BRAKE CONTROL ASSEMBLY для Arctic Cat T570 - 2012 года выпуска
-
№АртикулНазвание
-
11602-930 BRAKE ASSEMBLY (INC. 2-10)BRAKE ASSEMBLY (INC. 2-10)
-
21602-929 ...MASTER CYLINDER - ASSEMBLY...MASTER CYLINDER - ASSEMBLY
-
31602-931 ...LEVER, BRAKE (INC. 4)...LEVER, BRAKE (INC. 4)
-
41602-932 ......LOCK, BRAKE LEVER - KIT......LOCK, BRAKE LEVER - KIT
-
51602-933 ...COVER, RESERVOIR...COVER, RESERVOIR
-
61602-934 ...SCREW, MACHINE...SCREW, MACHINE
-
71602-935 ...CLAMP, BRAKE...CLAMP, BRAKE
-
81602-936 ...SCREW, MACHINE...SCREW, MACHINE
-
91602-937 ...PIN, BRAKE LEVER - KIT...PIN, BRAKE LEVER - KIT
-
101602-938 ...SWITCH, BRAKE...SWITCH, BRAKE
-
110423-178 WASHER, CRUSHWASHER, CRUSH
-
120423-413 BOLT, BANJO-FITTINGBOLT, BANJO-FITTING
-
131602-926 BRAKELINE, HYDRAULICBRAKELINE, HYDRAULIC
-
-0436-902 FLUID, BRAKE - HIGH TEMPERATURE - 12 OZ - NOT SHOWNFLUID, BRAKE - HIGH TEMPERATURE - 12 OZ - NOT SHOWN
