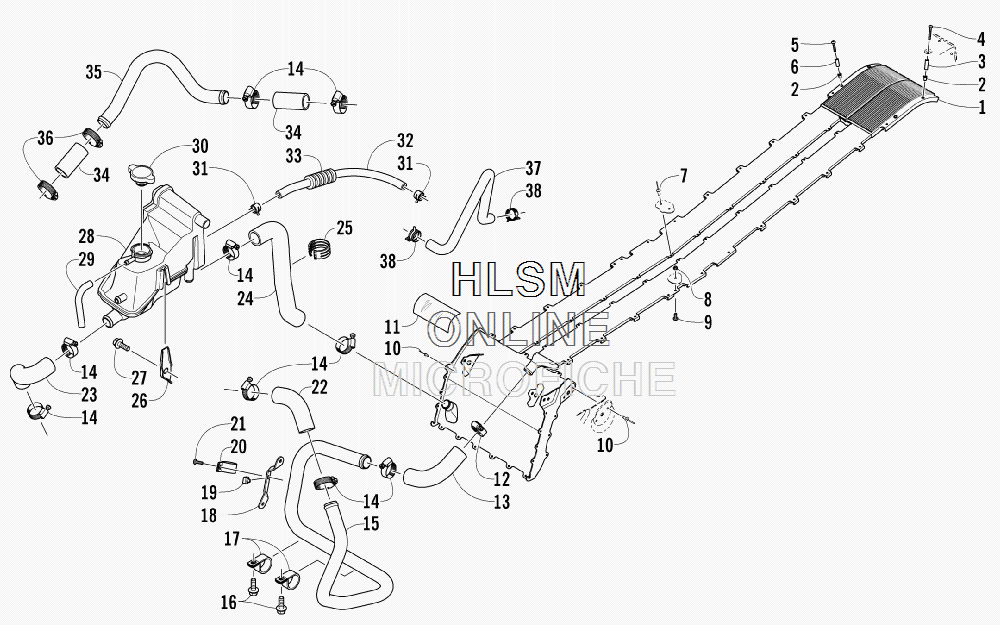

COOLING ASSEMBLY для Arctic Cat XF 1100 SNO PRO ANNIVERSARY EDITION (INTERNATIONAL) - 2012 года выпуска
-
№АртикулНазвание
-
10713-053 EXCHANGER, HEAT (INC. 2)EXCHANGER, HEAT (INC. 2)
-
21623-562 ...INSERT...INSERT
-
30613-052 SPACERSPACER
-
48017-406 SCREW, MACHINESCREW, MACHINE
-
58017-405 SCREW, MACHINESCREW, MACHINE
-
60613-053 SPACERSPACER
-
78060-702 RIVETRIVET
-
88422-502 NUT, LOCKNUT, LOCK
-
98476-516 SCREW, MACHINESCREW, MACHINE
-
108060-706 RIVETRIVET
-
110619-206 FOIL, PROTECTIVE - 30 FTFOIL, PROTECTIVE - 30 FT
-
121623-092 CLAMP, HOSECLAMP, HOSE
-
130610-866 HOSE, COOLANT - COOLANT TUBE/HEAT EXCHANGERHOSE, COOLANT - COOLANT TUBE/HEAT EXCHANGER
-
141623-230 CLAMP, HOSECLAMP, HOSE
-
150613-050 TUBE, COOLANT - ENGINE/HEAT EXCHANGERTUBE, COOLANT - ENGINE/HEAT EXCHANGER
-
168409-017 SCREW, CAPSCREW, CAP
-
171623-916 CLAMP, ROUTINGCLAMP, ROUTING
-
180608-668 BRACKET, MOUNTING - COOLANT TUBEBRACKET, MOUNTING - COOLANT TUBE
-
191623-637 CLIP, U-NUTCLIP, U-NUT
-
200423-044 CLAMP, ROUTINGCLAMP, ROUTING
-
218476-516 SCREW, MACHINESCREW, MACHINE
-
220610-865 HOSE, COOLANT - THERMOSTAT/COOLANT TUBEHOSE, COOLANT - THERMOSTAT/COOLANT TUBE
-
230610-849 HOSE, COOLANT - ENGINE/COOLANT-OIL SEPARATOR TANKHOSE, COOLANT - ENGINE/COOLANT-OIL SEPARATOR TANK
-
240610-842 HOSE, COOLANT - HEAT EXCHANGER/COOLANT-OIL SEPARATOR TANKHOSE, COOLANT - HEAT EXCHANGER/COOLANT-OIL SEPARATOR TANK
-
250623-540 TIE, CABLE - TRIPLETIE, CABLE - TRIPLE
-
260613-048 BRACKET, MOUNTING - COOLANT-OIL SEPARATOR TANKBRACKET, MOUNTING - COOLANT-OIL SEPARATOR TANK
-
278408-026 SCREW, CAPSCREW, CAP
-
280613-072 TANK, COOLANT-OIL SEPARATOR - ASSEMBLYTANK, COOLANT-OIL SEPARATOR - ASSEMBLY
-
290610-818 HOSE, VENTHOSE, VENT
-
302606-284 CAPCAP
-
311623-278 CLAMP, HOSECLAMP, HOSE
-
320610-854 HOSE, COOLANT - COOLANT-OIL SEPARATOR TANK/THROTTLE BODYHOSE, COOLANT - COOLANT-OIL SEPARATOR TANK/THROTTLE BODY
-
330619-776 CONDUIT, FLEXIBLE - 5 FTCONDUIT, FLEXIBLE - 5 FT
-
340610-840 HOSEHOSE
-
350613-049 TUBE, COOLANT - CYLINDER HEAD/PUMPTUBE, COOLANT - CYLINDER HEAD/PUMP
-
363004-786 CLAMP, HOSECLAMP, HOSE
-
370610-879 HOSE, COOLANT - CYLINDER HEAD/THROTTLE BODYHOSE, COOLANT - CYLINDER HEAD/THROTTLE BODY
-
383004-923 CLAMP, HOSECLAMP, HOSE
