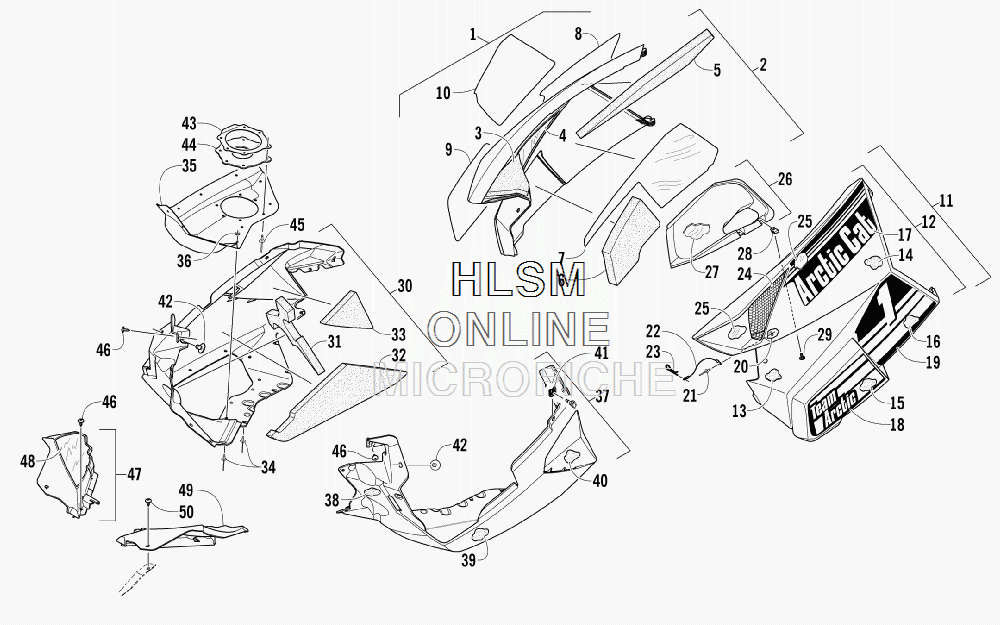

SKID PLATE AND SIDE PANEL ASSEMBLY для Arctic Cat XF 1100 SNO PRO ANNIVERSARY EDITION - 2012 года выпуска
-
№АртикулНазвание
-
13718-244 PANEL, SIDE - RIGHT W/DECALS - BLACK (INC. 2-10)PANEL, SIDE - RIGHT W/DECALS - BLACK (INC. 2-10)
-
23718-312 ...PANEL, SIDE - RIGHT W/O DECALS - BLACK (INC. 3-7)...PANEL, SIDE - RIGHT W/O DECALS - BLACK (INC. 3-7)
-
30617-626 ......FOAM, SIDE PANEL - UPPER FRONT - RIGHT......FOAM, SIDE PANEL - UPPER FRONT - RIGHT
-
46606-414 ......FOIL, PROTECTIVE - MIDDLE - RIGHT......FOIL, PROTECTIVE - MIDDLE - RIGHT
-
50617-628 ......FOAM, SIDE PANEL - UPPER REAR - RIGHT......FOAM, SIDE PANEL - UPPER REAR - RIGHT
-
60617-632 ......FOAM, SIDE PANEL - LOWER FRONT - RIGHT......FOAM, SIDE PANEL - LOWER FRONT - RIGHT
-
76606-416 ......FOIL, PROTECTIVE - LOWER - REAR - RIGHT......FOIL, PROTECTIVE - LOWER - REAR - RIGHT
-
89611-604 ...DECAL, SIDE PANEL - UPPER FRONT - RIGHT...DECAL, SIDE PANEL - UPPER FRONT - RIGHT
-
99611-608 ...DECAL, SIDE PANEL - LOWER FRONT - RIGHT...DECAL, SIDE PANEL - LOWER FRONT - RIGHT
-
109611-606 ...DECAL, SIDE PANEL - LOWER REAR - RIGHT...DECAL, SIDE PANEL - LOWER REAR - RIGHT
-
113718-245 PANEL, SIDE - LEFT W/DECALS - BLACK (INC. 12-19)PANEL, SIDE - LEFT W/DECALS - BLACK (INC. 12-19)
-
123718-181 ...PANEL, SIDE - LEFT W/O DECALS - BLACK (INC. 13-16)...PANEL, SIDE - LEFT W/O DECALS - BLACK (INC. 13-16)
-
130617-631 ......FOAM, SIDE PANEL - CENTER FRONT - LEFT......FOAM, SIDE PANEL - CENTER FRONT - LEFT
-
140617-629 ......FOAM, SIDE PANEL - UPPER REAR - LEFT......FOAM, SIDE PANEL - UPPER REAR - LEFT
-
150617-633 ......FOAM, SIDE PANEL - LOWER FRONT - LEFT......FOAM, SIDE PANEL - LOWER FRONT - LEFT
-
160617-635 ......FOAM, SIDE PANEL - LOWER REAR - LEFT......FOAM, SIDE PANEL - LOWER REAR - LEFT
-
179611-605 ...DECAL, SIDE PANEL - UPPER FRONT - LEFT...DECAL, SIDE PANEL - UPPER FRONT - LEFT
-
189611-609 ...DECAL, SIDE PANEL - LOWER FRONT - LEFT...DECAL, SIDE PANEL - LOWER FRONT - LEFT
-
199611-607 ...DECAL, SIDE PANEL - LOWER REAR - LEFT...DECAL, SIDE PANEL - LOWER REAR - LEFT
-
208050-127 WASHERWASHER
-
218060-486 RIVETRIVET
-
220607-447 CABLECABLE
-
230605-283 CLIP, HAIRPINCLIP, HAIRPIN
-
245706-227 SCREEN, INTAKESCREEN, INTAKE
-
250619-206 FOIL, PROTECTIVE - 30 FTFOIL, PROTECTIVE - 30 FT
-
261702-242 DUCT, AIR - CLUTCH (INC. 27)DUCT, AIR - CLUTCH (INC. 27)
-
276606-462 ...FOIL, PROTECTIVE - OPTIONAL...FOIL, PROTECTIVE - OPTIONAL
-
281623-030 CLIP, U-NUTCLIP, U-NUT
-
290623-797 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
303718-234 PLATE, SKID - RIGHT W/O DECALS - BLACK (INC. 31-36)PLATE, SKID - RIGHT W/O DECALS - BLACK (INC. 31-36)
-
310617-636 ...FOAM, SKID PLATE - UPPER FRONT - RIGHT...FOAM, SKID PLATE - UPPER FRONT - RIGHT
-
320617-638 ...FOAM, SKID PLATE - CENTER FRONT - RIGHT...FOAM, SKID PLATE - CENTER FRONT - RIGHT
-
330617-640 ...FOAM, SKID PLATE - UPPER REAR - RIGHT...FOAM, SKID PLATE - UPPER REAR - RIGHT
-
348061-708 ...RIVET...RIVET
-
351712-722 ...DEFLECTOR, HEAT...DEFLECTOR, HEAT
-
360123-802 ...WASHER...WASHER
-
373718-235 PLATE, SKID - LEFT W/O DECALS - BLACK (INC. 38-40)PLATE, SKID - LEFT W/O DECALS - BLACK (INC. 38-40)
-
380617-637 ...FOAM, SKID PLATE - UPPER FRONT - LEFT...FOAM, SKID PLATE - UPPER FRONT - LEFT
-
390617-639 ...FOAM, SKID PLATE - CENTER FRONT - LEFT...FOAM, SKID PLATE - CENTER FRONT - LEFT
-
400617-641 ...FOAM, SKID PLATE - UPPER REAR - LEFT...FOAM, SKID PLATE - UPPER REAR - LEFT
-
411623-748 CLIP, RETAININGCLIP, RETAINING
-
425606-639 PIN, RETAININGPIN, RETAINING
-
432612-685 PLATE, EXHAUST OUTLETPLATE, EXHAUST OUTLET
-
442612-669 SEAL, EXHAUST OUTLETSEAL, EXHAUST OUTLET
-
458060-508 RIVETRIVET
-
461623-129 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
473718-302 FASCIA, FRONT RIGHT - BLACK (INC. 48)FASCIA, FRONT RIGHT - BLACK (INC. 48)
-
486606-404 ...FOIL, PROTECTIVE...FOIL, PROTECTIVE
-
496606-343 FASCIA, FRONT LEFT - BLACKFASCIA, FRONT LEFT - BLACK
-
500623-784 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
