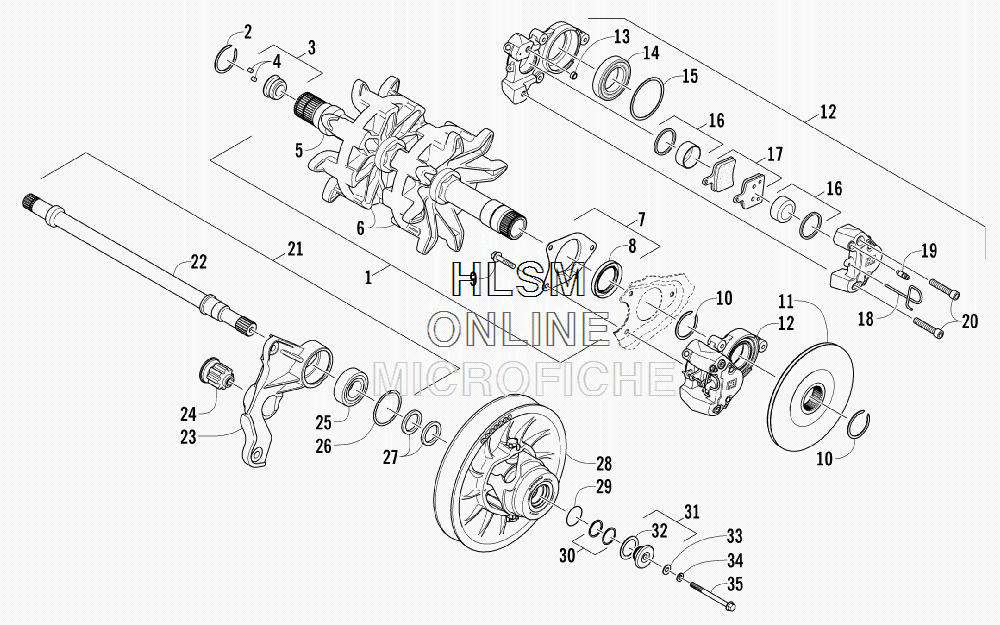

DRIVE TRAIN SHAFTS AND BRAKE ASSEMBLIES для Arctic Cat XF 1100 SNO PRO (GREEN) - 2012 года выпуска
-
№АртикулНазвание
-
10728-178 TRACK, DRIVE - ASSEMBLY (INC. 2-8)TRACK, DRIVE - ASSEMBLY (INC. 2-8)
-
21702-072 ...PLUG, MAGNETIC - ASSEMBLY (INC. 3)...PLUG, MAGNETIC - ASSEMBLY (INC. 3)
-
32602-211 ......MAGNET......MAGNET
-
42602-197 ...DRIVESHAFT...DRIVESHAFT
-
51602-592 ...SPROCKET, DRIVE...SPROCKET, DRIVE
-
61702-206 ...PLATE, RETAINING - SEAL (INC. 7)...PLATE, RETAINING - SEAL (INC. 7)
-
71602-344 ......SEAL......SEAL
-
82602-233 ...RING, RETAINING...RING, RETAINING
-
98408-831 SCREW, CAPSCREW, CAP
-
102602-343 CALIPER, BRAKE - ASSEMBLY (INC. 11-18)CALIPER, BRAKE - ASSEMBLY (INC. 11-18)
-
112602-411 ...SEAL...SEAL
-
122602-198 ...BEARING...BEARING
-
132602-280 ...RING, RETAINING...RING, RETAINING
-
142602-410 ...PISTON SET...PISTON SET
-
151702-205 ...PAD, BRAKE - SET (INC. 16)...PAD, BRAKE - SET (INC. 16)
-
162602-409 ......PIN, RETAINING......PIN, RETAINING
-
172602-408 ...FITTING, BLEED...FITTING, BLEED
-
182602-412 ...SCREW, CAP...SCREW, CAP
-
192602-249 DISC, BRAKEDISC, BRAKE
-
202602-473 RING, RETAININGRING, RETAINING
-
211702-280 SHAFT, DRIVEN - ASSEMBLY (INC. 22-26)SHAFT, DRIVEN - ASSEMBLY (INC. 22-26)
-
222602-622 ...SHAFT, DRIVEN...SHAFT, DRIVEN
-
230708-575 ...BRACKET, ENGINE MOUNTING - LEFT REAR (INC. 24)...BRACKET, ENGINE MOUNTING - LEFT REAR (INC. 24)
-
240608-654 ......MOUNT, ENGINE......MOUNT, ENGINE
-
252602-247 ...BEARING...BEARING
-
262602-236 ...RING, RETAINING...RING, RETAINING
-
270648-816 WASHER, SHIM (.030 IN.)WASHER, SHIM (.030 IN.)
-
270648-817 WASHER, SHIM (.060 IN.)WASHER, SHIM (.060 IN.)
-
270648-818 WASHER, SHIM (.090 IN.)WASHER, SHIM (.090 IN.)
-
280726-296 CLUTCH, DRIVEN - ASSEMBLYCLUTCH, DRIVEN - ASSEMBLY
-
290648-441 O-RINGO-RING
-
300648-715 WASHER, SHIM (.030 IN.)WASHER, SHIM (.030 IN.)
-
300648-716 WASHER, SHIM (.060 IN.)WASHER, SHIM (.060 IN.)
-
300648-714 WASHER, SHIM (.090 IN.)WASHER, SHIM (.090 IN.)
-
311702-114 ADJUSTER, SHEAVE (INC. 32)ADJUSTER, SHEAVE (INC. 32)
-
320648-788 ...WASHER, THRUST...WASHER, THRUST
-
338450-127 WASHERWASHER
-
348051-242 WASHER, LOCKWASHER, LOCK
-
358408-800 SCREW, CAPSCREW, CAP
