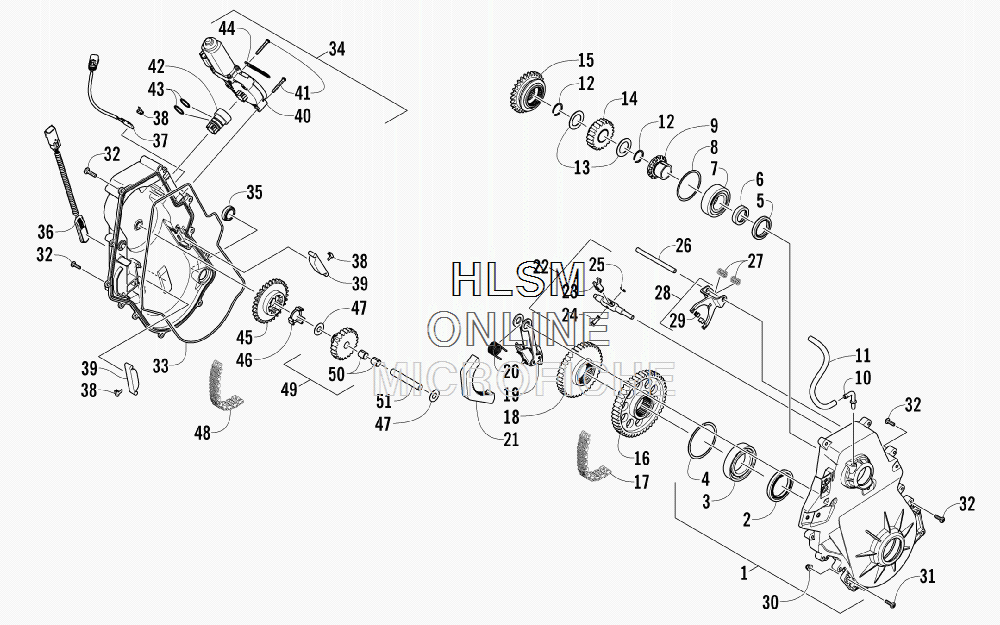

CHAIN CASE ASSEMBLY для Arctic Cat XF 1100 SNO PRO LTD - 2012 года выпуска
-
№АртикулНазвание
-
11702-070 CHAIN CASE ASSEMBLY (INC. 2-11)CHAIN CASE ASSEMBLY (INC. 2-11)
-
22602-172 ...SEAL...SEAL
-
32602-281 ...BEARING...BEARING
-
42602-280 ...RING, RETAINING...RING, RETAINING
-
52602-204 ...SEAL...SEAL
-
62602-368 ...SPACER...SPACER
-
72602-205 ...BEARING...BEARING
-
82602-236 ...RING, RETAINING...RING, RETAINING
-
92602-290 ...SLEEVE, ADAPTER...SLEEVE, ADAPTER
-
101402-102 ...FITTING, ELBOW...FITTING, ELBOW
-
112602-489 ...HOSE, VENT...HOSE, VENT
-
120623-118 WASHER, SHIM (.030 IN.)WASHER, SHIM (.030 IN.)
-
120623-119 WASHER, SHIM (.075 IN.)WASHER, SHIM (.075 IN.)
-
132602-239 RING, RETAININGRING, RETAINING
-
142602-339 WASHER, THRUSTWASHER, THRUST
-
151702-201 SPROCKET - 21T (13 WIDE)SPROCKET - 21T (13 WIDE)
-
162602-270 GEAR, SHIFT - REVERSEGEAR, SHIFT - REVERSE
-
172602-363 SPROCKET - 49T (13 WIDE)SPROCKET - 49T (13 WIDE)
-
182602-370 CHAIN - 90P (13 WIDE)CHAIN - 90P (13 WIDE)
-
192602-276 SPROCKET - 40T (11 WIDE)SPROCKET - 40T (11 WIDE)
-
202602-473 RING, RETAININGRING, RETAINING
-
211702-073 ARM, TENSIONER - ASSEMBLYARM, TENSIONER - ASSEMBLY
-
222602-336 SPRINGSPRING
-
232602-230 PLATE, RATCHETPLATE, RATCHET
-
241702-265 ARM, SHIFT FORKARM, SHIFT FORK
-
252602-418 SHAFT, REVERSESHAFT, REVERSE
-
262602-417 SPRINGSPRING
-
272602-579 BUSHINGBUSHING
-
281702-299 SHIFT FORK - ASSEMBLY (INC. 29)SHIFT FORK - ASSEMBLY (INC. 29)
-
292602-341 ...PAD, WEAR - SHIFT FORK...PAD, WEAR - SHIFT FORK
-
308427-602 NUT, LOCKNUT, LOCK
-
318476-630 SCREW, MACHINESCREW, MACHINE
-
321623-814 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
332602-208 SEAL, CHAIN CASESEAL, CHAIN CASE
-
341702-267 COVER, CHAIN CASE (INC. 35-39)COVER, CHAIN CASE (INC. 35-39)
-
352602-232 ...GLASS, SIGHT...GLASS, SIGHT
-
360730-172 ...KIT, SPEEDOMETER SENSOR...KIT, SPEEDOMETER SENSOR
-
370730-193 ...KIT, GEAR POSITION SENSOR...KIT, GEAR POSITION SENSOR
-
381623-703 ...CLIP...CLIP
-
392602-387 ...SNUBBER, CHAIN...SNUBBER, CHAIN
-
400630-289 ACTUATOR, REVERSEACTUATOR, REVERSE
-
418468-536 SCREW, MACHINESCREW, MACHINE
-
421623-984 CLAMP, ROUTINGCLAMP, ROUTING
-
430630-297 EXTENSION, ACTUATOREXTENSION, ACTUATOR
-
440830-185 O-RINGO-RING
-
452602-338 WASHER, THRUSTWASHER, THRUST
-
462602-275 GEAR, REVERSE IDLER - 30T (11 WIDE)GEAR, REVERSE IDLER - 30T (11 WIDE)
-
472602-415 INSERT, IDLERINSERT, IDLER
-
482602-342 CHAIN - 68P (11 WIDE)CHAIN - 68P (11 WIDE)
-
491702-173 IDLER, REVERSE - ASSEMBLY (INC. 50)IDLER, REVERSE - ASSEMBLY (INC. 50)
-
502602-337 ...BEARING...BEARING
-
512602-277 SHAFT, REVERSESHAFT, REVERSE
