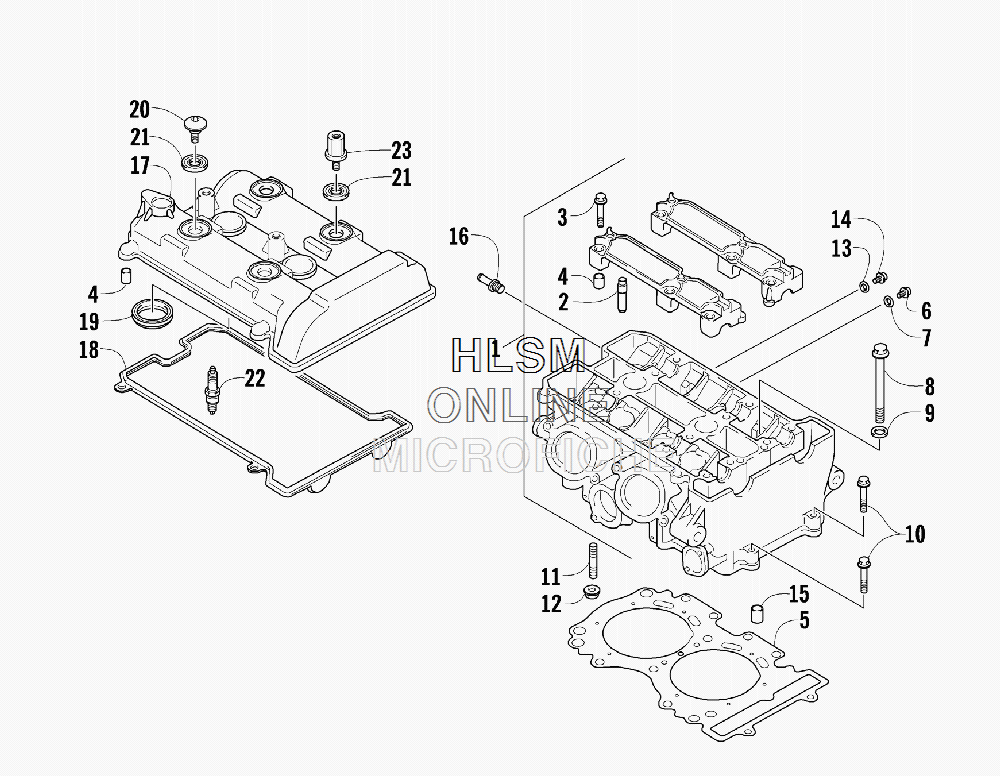

CYLINDER HEAD ASSEMBLY для Arctic Cat XF 1100 TURBO SNO PRO LTD - 2012 года выпуска
-
№АртикулНазвание
-
13007-853 HEAD, CYLINDER - ASSEMBLY (INC. 2-3 AND FOUR NO. 4)HEAD, CYLINDER - ASSEMBLY (INC. 2-3 AND FOUR NO. 4)
-
23403-056 ...GUIDE, VALVE...GUIDE, VALVE
-
33007-070 ...SCREW, CAP...SCREW, CAP
-
43423-043 ...PIN, DOWEL...PIN, DOWEL
-
53007-072 GASKET, CYLINDER HEADGASKET, CYLINDER HEAD
-
63006-598 SCREW, CAPSCREW, CAP
-
73003-290 GASKETGASKET
-
83007-073 SCREW, CAPSCREW, CAP
-
93007-495 WASHERWASHER
-
103007-496 SCREW, CAPSCREW, CAP
-
113007-074 BOLT, STUDBOLT, STUD
-
123007-390 NUTNUT
-
133003-290 GASKETGASKET
-
143007-497 PLUG, OILPLUG, OIL
-
153423-088 PIN, DOWELPIN, DOWEL
-
163007-075 FITTING, HOSEFITTING, HOSE
-
173007-076 COVER, CYLINDER HEADCOVER, CYLINDER HEAD
-
183007-077 GASKET, COVERGASKET, COVER
-
193007-078 GASKETGASKET
-
203423-646 SCREW, SHOULDERSCREW, SHOULDER
-
213423-680 WASHERWASHER
-
220217-806 PLUG, SPARK - MR8AI-9PLUG, SPARK - MR8AI-9
-
233007-776 SCREW, INTERCOOLER SUPPORTSCREW, INTERCOOLER SUPPORT
