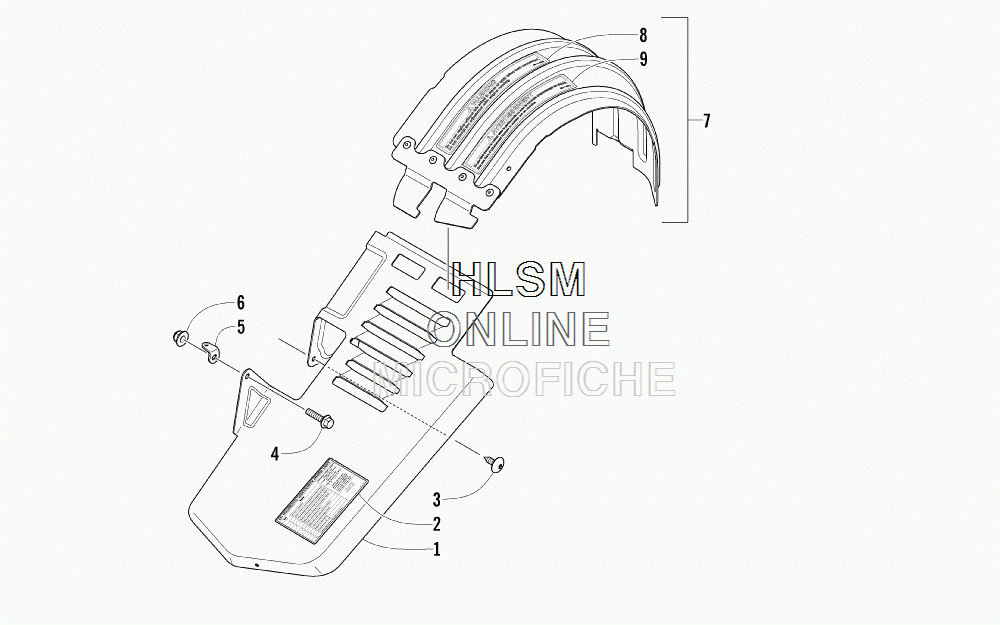

BELT GUARD ASSEMBLY для Arctic Cat XF 800 SNO PRO - HIGH COUNTRY - 2012 года выпуска
-
№АртикулНазвание
-
12602-434 GUARD, BELT - FRONTGUARD, BELT - FRONT
-
29611-743 DECAL, EFI DIAGNOSTIC CODESDECAL, EFI DIAGNOSTIC CODES
-
30623-797 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
48408-525 SCREW, CAPSCREW, CAP
-
52612-707 TAB, SPRING - RESONATORTAB, SPRING - RESONATOR
-
68427-502 NUT, LOCKNUT, LOCK
-
71702-217 GUARD, BELT - REAR (INC. 8-9)GUARD, BELT - REAR (INC. 8-9)
-
89611-690 ...DECAL, WARNING - ENGLISH...DECAL, WARNING - ENGLISH
-
99611-691 ...DECAL, WARNING - FRENCH...DECAL, WARNING - FRENCH
