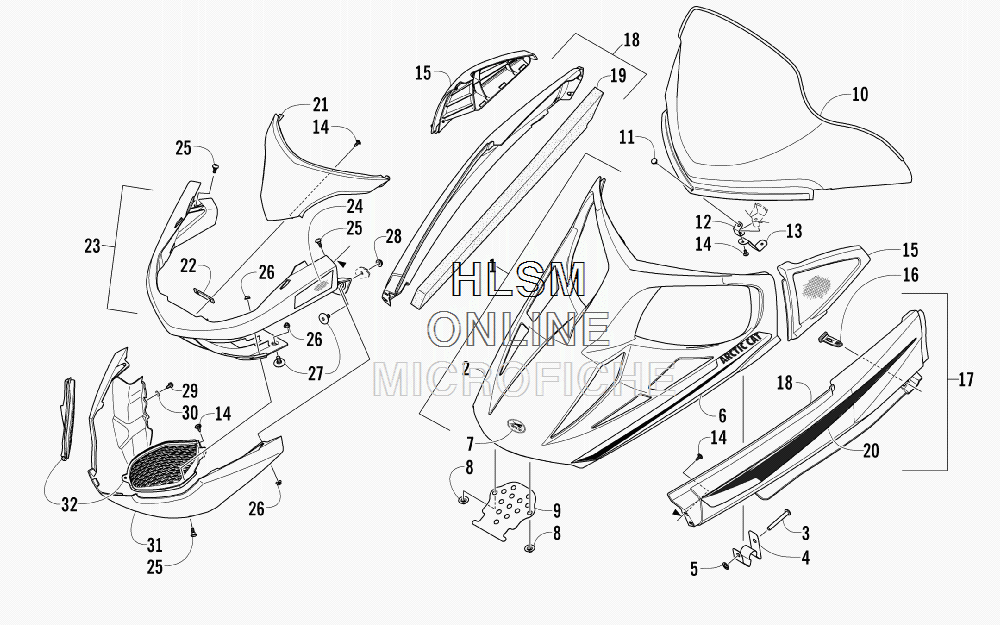

HOOD- WINDSHIELD- AND FRONT BUMPER ASSEMBLY для Arctic Cat Bearcat 570 [S2013BCDFCUSL] - 2013 года выпуска
-
№АртикулНазвание
-
13718-415 HOOD W/DECALS - BLUE (INC. 2-7)HOOD W/DECALS - BLUE (INC. 2-7)
-
27800-996 ...HOOD W/O DECALS - BLUE (INC. 3-5)...HOOD W/O DECALS - BLUE (INC. 3-5)
-
31623-610 ......PIN, RETAINING......PIN, RETAINING
-
45706-084 ......CLIP, HOOD HOLD-DOWN - RIGHT......CLIP, HOOD HOLD-DOWN - RIGHT
-
45706-085 ......CLIP, HOOD HOLD-DOWN - LEFT......CLIP, HOOD HOLD-DOWN - LEFT
-
51623-409 ......NUT, PUSH......NUT, PUSH
-
69611-756 ...DECAL, HOOD - RIGHT...DECAL, HOOD - RIGHT
-
69611-757 ...DECAL, HOOD - LEFT...DECAL, HOOD - LEFT
-
79611-751 ...DECAL, "ARCTIC CAT"...DECAL, "ARCTIC CAT"
-
81623-469 NUT, STAMPEDNUT, STAMPED
-
95606-042 BRACKET, HINGEBRACKET, HINGE
-
105606-962 WINDSHIELDWINDSHIELD
-
111623-677 RIVET, PLASTICRIVET, PLASTIC
-
124606-961 BRACKET, WINDSHIELD - HOLD-DOWNBRACKET, WINDSHIELD - HOLD-DOWN
-
135606-277 BRACKET, WINDSHIELDBRACKET, WINDSHIELD
-
141623-129 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
155606-934 BEZEL, INTAKE - RIGHT - BLUEBEZEL, INTAKE - RIGHT - BLUE
-
155606-935 BEZEL, INTAKE - LEFT - BLUEBEZEL, INTAKE - LEFT - BLUE
-
164606-926 STRAP, HOLD-DOWNSTRAP, HOLD-DOWN
-
173718-432 SPAR, FRONT W/DECALS - RIGHT - BLACK (INC. 18-20)SPAR, FRONT W/DECALS - RIGHT - BLACK (INC. 18-20)
-
173718-433 SPAR, FRONT W/DECALS - LEFT - BLACK (INC. 18-20)SPAR, FRONT W/DECALS - LEFT - BLACK (INC. 18-20)
-
183718-316 ...SPAR, FRONT W/O DECALS - RIGHT - BLACK (INC. 19)...SPAR, FRONT W/O DECALS - RIGHT - BLACK (INC. 19)
-
183718-317 ...SPAR, FRONT W/O DECALS - LEFT - BLACK (INC. 19)...SPAR, FRONT W/O DECALS - LEFT - BLACK (INC. 19)
-
190617-656 ......FOAM, FRONT SPAR - RIGHT......FOAM, FRONT SPAR - RIGHT
-
190617-657 ......FOAM, FRONT SPAR - LEFT......FOAM, FRONT SPAR - LEFT
-
209611-952 ...DECAL, FRONT SPAR - RIGHT...DECAL, FRONT SPAR - RIGHT
-
209611-953 ...DECAL, FRONT SPAR - LEFT...DECAL, FRONT SPAR - LEFT
-
214606-518 FASCIA, BUMPER - UPPER - BLACKFASCIA, BUMPER - UPPER - BLACK
-
225606-953 SPACER, UPPERSPACER, UPPER
-
232718-765 BUMPER, FRONT - BLACK (INC. 24)BUMPER, FRONT - BLACK (INC. 24)
-
249611-384 ...DECAL, REFLECTOR - RIGHT - AMBER...DECAL, REFLECTOR - RIGHT - AMBER
-
249611-385 ...DECAL, REFLECTOR - LEFT - AMBER...DECAL, REFLECTOR - LEFT - AMBER
-
250423-355 SCREW, SHOULDERSCREW, SHOULDER
-
268427-602 NUT, LOCKNUT, LOCK
-
271623-775 SCREW, SHOULDERSCREW, SHOULDER
-
288424-602 NUTNUT
-
290623-966 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
308053-242 WASHER, EXTERNAL TOOTH LOCKWASHER, EXTERNAL TOOTH LOCK
-
315606-462 FASCIA, BUMPER - LOWER - BLACKFASCIA, BUMPER - LOWER - BLACK
-
324606-604 VENT, BUMPER - RIGHT - BLACKVENT, BUMPER - RIGHT - BLACK
-
324606-605 VENT, BUMPER - LEFT - BLACKVENT, BUMPER - LEFT - BLACK
