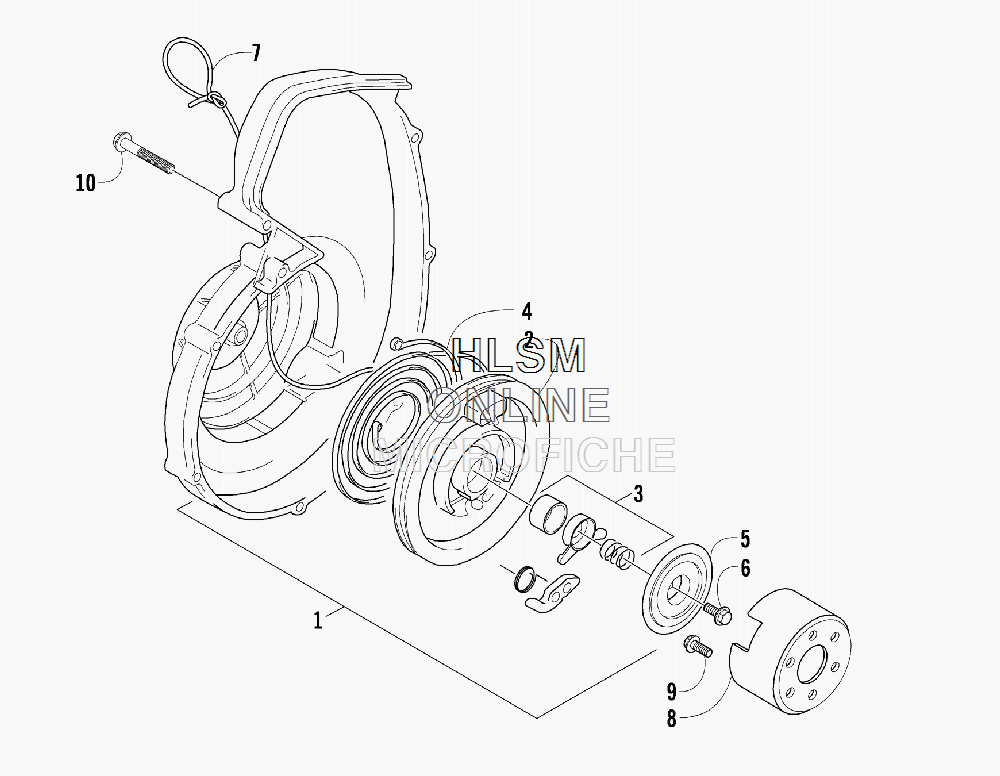

RECOIL STARTER для Arctic Cat Bearcat 570 XT INTERNATIONAL [2013BCDWTOSL] - 2013 года выпуска
-
№АртикулНазвание
-
13007-688 STARTER ASSEMBLY (INC. 2-6)STARTER ASSEMBLY (INC. 2-6)
-
23006-090 ...ROLLER, STARTER...ROLLER, STARTER
-
33006-091 ...RATCHET SET...RATCHET SET
-
43007-487 ...SPRING...SPRING
-
53006-092 ...PLATE, FRICTION...PLATE, FRICTION
-
63006-093 ...SCREW, CAP...SCREW, CAP
-
73006-889 ROPE, STARTERROPE, STARTER
-
83006-020 PULLEY, STARTERPULLEY, STARTER
-
93006-463 SCREW, CAPSCREW, CAP
-
103007-488 SCREW, CAPSCREW, CAP
