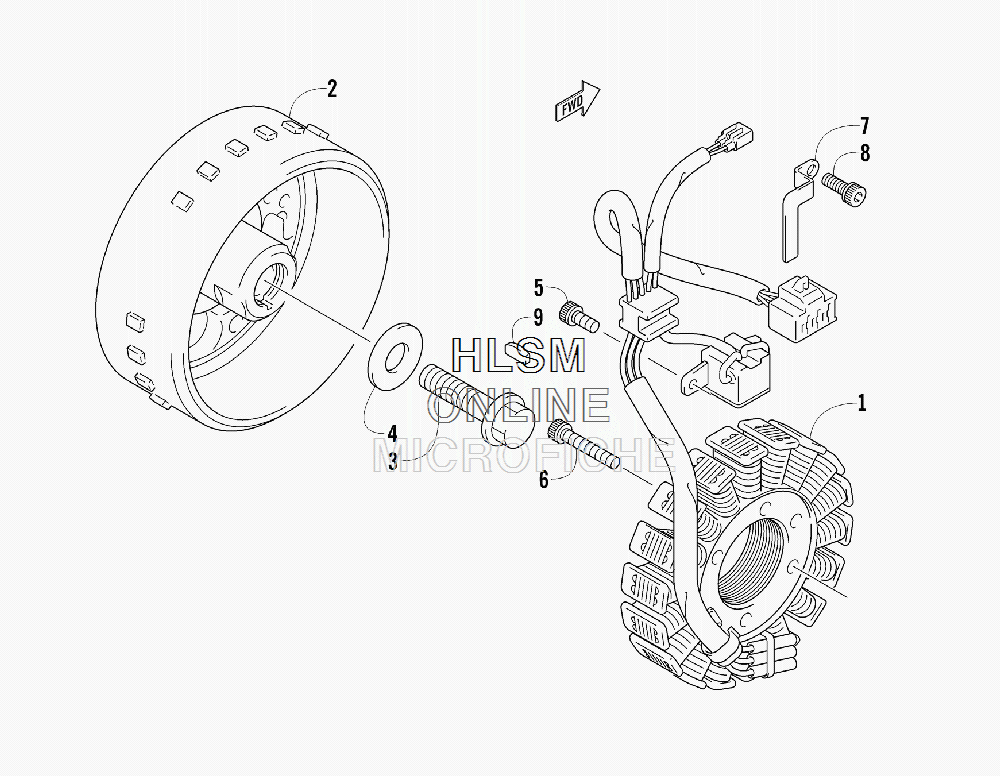

MAGNETO ASSEMBLY для Arctic Cat F 1100 LXR - GREEN [S2013F1NLXUSG] - 2013 года выпуска
-
№АртикулНазвание
-
13007-231 STATOR ASSY.STATOR ASSY.
-
23007-232 ROTOR/FLYWHEELROTOR/FLYWHEEL
-
33007-233 SCREW, CAPSCREW, CAP
-
43007-234 WASHERWASHER
-
53007-519 SCREW, CAPSCREW, CAP
-
63007-450 SCREW, CAPSCREW, CAP
-
73007-235 CLAMP, LEAD WIRECLAMP, LEAD WIRE
-
83007-519 SCREW, CAPSCREW, CAP
-
93004-540 KEYKEY
