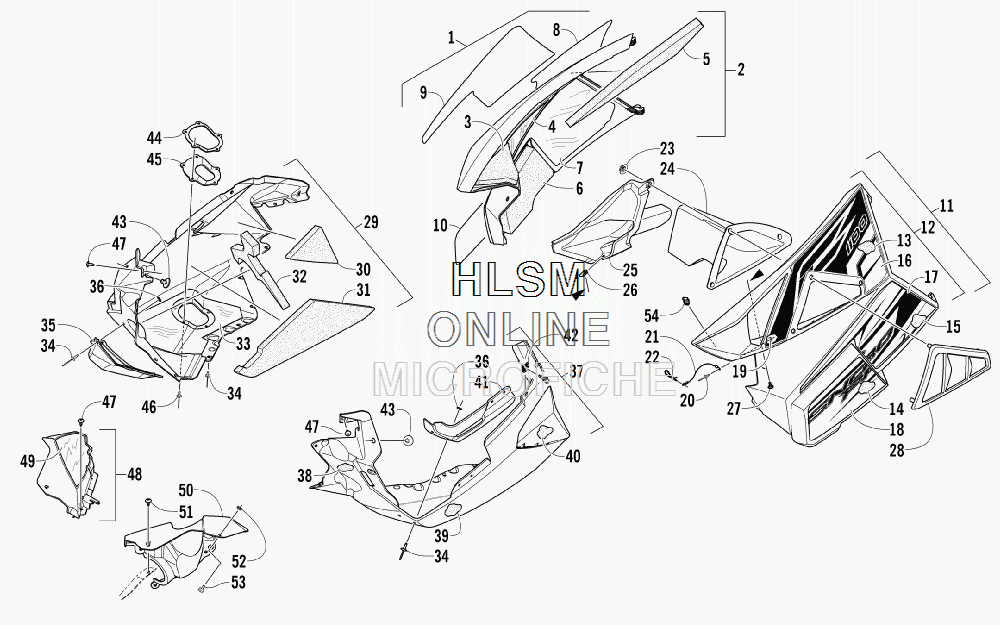

SKID PLATE AND SIDE PANEL ASSEMBLY для Arctic Cat F 1100 Turbo Sno Pro - GREEN [S2013F1NTPUSG] - 2013 года выпуска
-
№АртикулНазвание
-
13718-458 PANEL, SIDE - RIGHT W/DECALS - GREEN (INC. 2-10)PANEL, SIDE - RIGHT W/DECALS - GREEN (INC. 2-10)
-
23718-314 ...PANEL, SIDE - RIGHT W/O DECALS - GREEN (INC. 3-7)...PANEL, SIDE - RIGHT W/O DECALS - GREEN (INC. 3-7)
-
30617-626 ......FOAM, SIDE PANEL - UPPER FRONT - RIGHT......FOAM, SIDE PANEL - UPPER FRONT - RIGHT
-
46606-414 ......FOIL, PROTECTIVE - MIDDLE - RIGHT......FOIL, PROTECTIVE - MIDDLE - RIGHT
-
50617-628 ......FOAM, SIDE PANEL - UPPER REAR - RIGHT......FOAM, SIDE PANEL - UPPER REAR - RIGHT
-
60617-632 ......FOAM, SIDE PANEL - LOWER FRONT - RIGHT......FOAM, SIDE PANEL - LOWER FRONT - RIGHT
-
76606-416 ......FOIL, PROTECTIVE - LOWER - REAR - RIGHT......FOIL, PROTECTIVE - LOWER - REAR - RIGHT
-
80621-012 ...DECAL, SIDE PANEL - UPPER - RIGHT - GREEN...DECAL, SIDE PANEL - UPPER - RIGHT - GREEN
-
90621-018 ...DECAL, SIDE PANEL - LOWER REAR - RIGHT - GREEN...DECAL, SIDE PANEL - LOWER REAR - RIGHT - GREEN
-
100621-016 ...DECAL, SIDE PANEL - LOWER FRONT - RIGHT - GREEN...DECAL, SIDE PANEL - LOWER FRONT - RIGHT - GREEN
-
113718-459 PANEL, SIDE - LEFT W/DECALS - GREEN (INC. 12-18)PANEL, SIDE - LEFT W/DECALS - GREEN (INC. 12-18)
-
123718-797 ...PANEL, SIDE - LEFT W/O DECALS - GREEN (INC. 13-15)...PANEL, SIDE - LEFT W/O DECALS - GREEN (INC. 13-15)
-
130617-669 ......FOAM, SIDE PANEL - UPPER REAR - LEFT......FOAM, SIDE PANEL - UPPER REAR - LEFT
-
140617-681 ......FOAM, SIDE PANEL - LOWER FRONT - LEFT......FOAM, SIDE PANEL - LOWER FRONT - LEFT
-
150617-635 ......FOAM, SIDE PANEL - LOWER REAR - LEFT......FOAM, SIDE PANEL - LOWER REAR - LEFT
-
160621-015 ...DECAL, SIDE PANEL - UPPER - LEFT - GREEN...DECAL, SIDE PANEL - UPPER - LEFT - GREEN
-
170621-019 ...DECAL, SIDE PANEL - LOWER REAR - LEFT - GREEN...DECAL, SIDE PANEL - LOWER REAR - LEFT - GREEN
-
180621-017 ...DECAL, SIDE PANEL - LOWER FRONT - LEFT - GREEN...DECAL, SIDE PANEL - LOWER FRONT - LEFT - GREEN
-
198050-127 WASHERWASHER
-
208060-486 RIVETRIVET
-
210607-447 CABLECABLE
-
220605-283 CLIP, HAIRPINCLIP, HAIRPIN
-
231623-469 NUT, STAMPEDNUT, STAMPED
-
240708-596 DUCT, HEATDUCT, HEAT
-
252602-457 DUCT, AIR - CLUTCHDUCT, AIR - CLUTCH
-
261623-030 CLIP, U-NUTCLIP, U-NUT
-
270623-797 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
280608-648 VENT, HEAT DUCTVENT, HEAT DUCT
-
293718-422 PLATE, SKID - RIGHT W/O DECALS - BLACK (INC. 30-36)PLATE, SKID - RIGHT W/O DECALS - BLACK (INC. 30-36)
-
300617-640 ...FOAM, SKID PLATE - UPPER REAR - RIGHT...FOAM, SKID PLATE - UPPER REAR - RIGHT
-
310617-638 ...FOAM, SKID PLATE - CENTER FRONT - RIGHT...FOAM, SKID PLATE - CENTER FRONT - RIGHT
-
320617-636 ...FOAM, SKID PLATE - UPPER FRONT - RIGHT...FOAM, SKID PLATE - UPPER FRONT - RIGHT
-
332612-850 ...FOIL, PROTECTIVE...FOIL, PROTECTIVE
-
348061-708 ...RIVET...RIVET
-
352612-754 ...DEFLECTOR, HEAT...DEFLECTOR, HEAT
-
360123-802 ...WASHER...WASHER
-
373718-789 PLATE, SKID - LEFT W/O DECALS - BLACK (INC. 38-41)PLATE, SKID - LEFT W/O DECALS - BLACK (INC. 38-41)
-
380617-637 ...FOAM, SKID PLATE - UPPER FRONT - LEFT...FOAM, SKID PLATE - UPPER FRONT - LEFT
-
390617-639 ...FOAM, SKID PLATE - CENTER FRONT - LEFT...FOAM, SKID PLATE - CENTER FRONT - LEFT
-
400617-641 ...FOAM, SKID PLATE - UPPER REAR - LEFT...FOAM, SKID PLATE - UPPER REAR - LEFT
-
416606-613 ...PANEL, REINFORCEMENT...PANEL, REINFORCEMENT
-
421623-748 CLIP, RETAININGCLIP, RETAINING
-
435606-639 PIN, RETAININGPIN, RETAINING
-
442612-796 PLATE, EXHAUST OUTLETPLATE, EXHAUST OUTLET
-
452612-799 SEAL, EXHAUST OUTLETSEAL, EXHAUST OUTLET
-
468061-710 RIVETRIVET
-
471623-129 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
483718-302 FASCIA, FRONT RIGHT - BLACK (INC. 49)FASCIA, FRONT RIGHT - BLACK (INC. 49)
-
496606-404 ...FOIL, PROTECTIVE...FOIL, PROTECTIVE
-
506606-351 FASCIA, FRONT LEFT - BLACKFASCIA, FRONT LEFT - BLACK
-
510623-784 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
522623-001 NUT, PUSHNUT, PUSH
-
531623-999 SCREW, THUMBSCREW, THUMB
-
541623-637 CLIP, U-NUTCLIP, U-NUT
