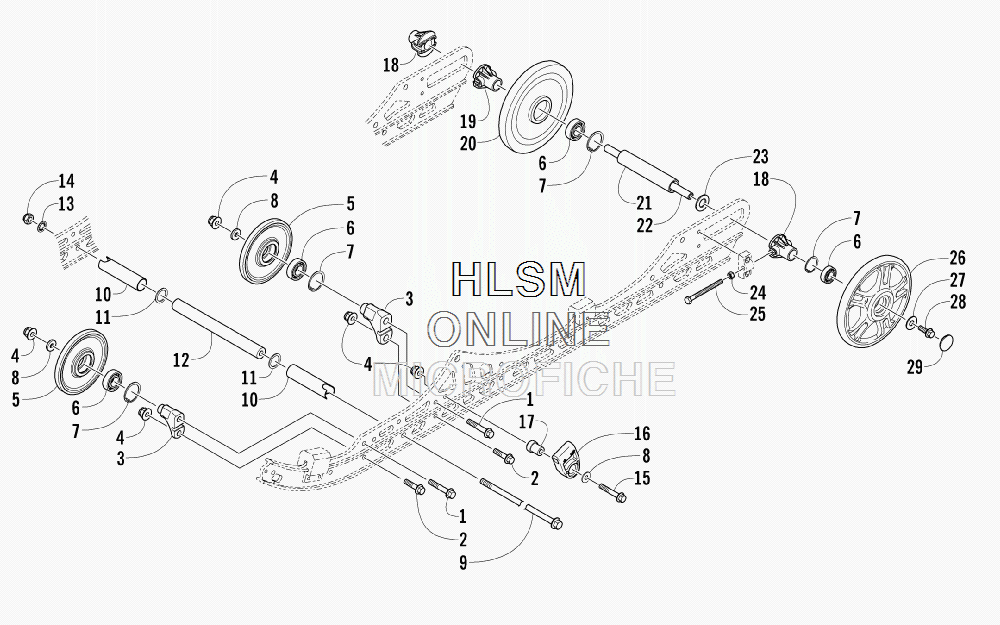

IDLER WHEEL ASSEMBLY для Arctic Cat F5 - ORANGE [S2013F5CEFUSO] - 2013 года выпуска
-
№АртикулНазвание
-
18408-880 SCREW, CAPSCREW, CAP
-
28408-830 SCREW, CAPSCREW, CAP
-
33604-004 BLOCK, MOUNTING - IDLER WHEELBLOCK, MOUNTING - IDLER WHEEL
-
48427-802 NUT, LOCKNUT, LOCK
-
53604-807 WHEEL, IDLER (INC. 6-7)WHEEL, IDLER (INC. 6-7)
-
63604-033 ...BEARING...BEARING
-
70623-946 ...RING, RETAINING...RING, RETAINING
-
88450-133 WASHERWASHER
-
91423-064 SCREW, CAPSCREW, CAP
-
103604-083 SPACER, SHOCK - FRONT ARMSPACER, SHOCK - FRONT ARM
-
110623-912 WASHERWASHER
-
123604-269 AXLEAXLE
-
131623-992 WASHER, INTERNAL TOOTH LOCKWASHER, INTERNAL TOOTH LOCK
-
148422-002 NUT, LOCKNUT, LOCK
-
158408-850 SCREW, CAPSCREW, CAP
-
162604-516 SLIDE, SPRINGSLIDE, SPRING
-
173604-204 BLOCK, SLIDEBLOCK, SLIDE
-
181704-490 BUSHING, ADJUSTER 3 WHEELBUSHING, ADJUSTER 3 WHEEL
-
192604-881 BUSHING, ADJUSTER 4 WHEELBUSHING, ADJUSTER 4 WHEEL
-
203604-060 WHEEL, IDLER (INC. 6-7)WHEEL, IDLER (INC. 6-7)
-
211604-940 SPACER, REAR WHEELSPACER, REAR WHEEL
-
223604-292 AXLE, REARAXLE, REAR
-
230623-921 WASHERWASHER
-
248042-486 NUTNUT
-
250124-310 SCREW, CAPSCREW, CAP
-
263604-298 WHEEL, IDLER - WHITE (INC. 6-7)WHEEL, IDLER - WHITE (INC. 6-7)
-
270623-664 WASHERWASHER
-
288408-831 SCREW, CAPSCREW, CAP
-
291604-952 CAP, IDLER WHEELCAP, IDLER WHEEL
