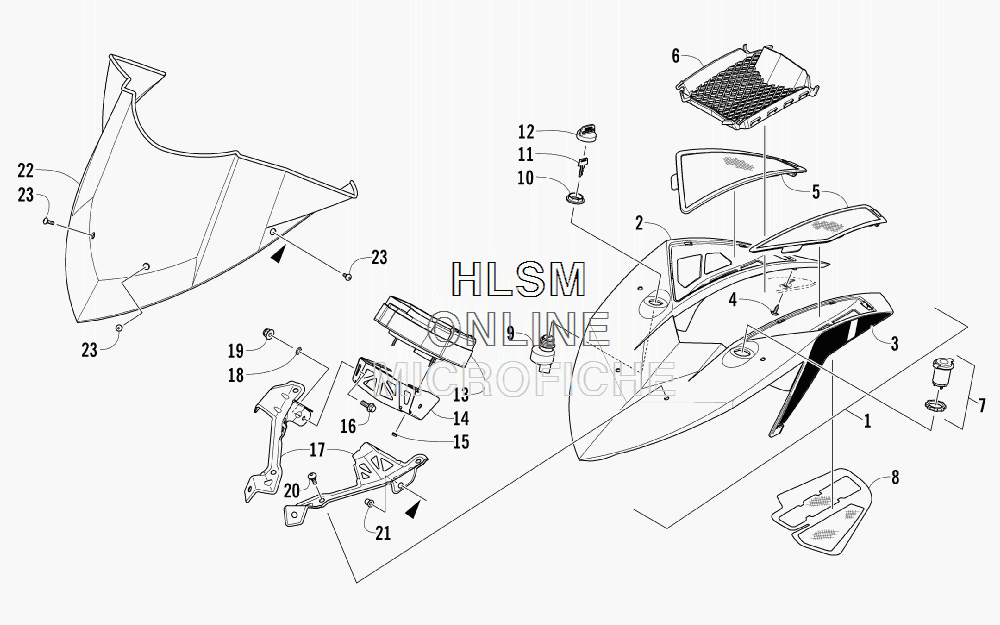

WINDSHIELD AND INSTRUMENTS ASSEMBLIES для Arctic Cat M 1100 Turbo Sno Pro - GREEN [S2013M1NE4USG] - 2013 года выпуска
-
№АртикулНазвание
-
13718-517 POD W/DECALS - GREEN (INC. 2-3)POD W/DECALS - GREEN (INC. 2-3)
-
25706-237 ...POD, INSTRUMENT - GREEN...POD, INSTRUMENT - GREEN
-
30621-140 ...DECAL, POD - RIGHT - GREEN...DECAL, POD - RIGHT - GREEN
-
30621-141 ...DECAL, POD - LEFT - GREEN...DECAL, POD - LEFT - GREEN
-
41623-129 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
50608-640 VENT, INTAKE - RIGHTVENT, INTAKE - RIGHT
-
50608-641 VENT, INTAKE - LEFTVENT, INTAKE - LEFT
-
66606-577 VENT, INTAKEVENT, INTAKE
-
70641-897 OUTLET, ACCESSORY - 12VOUTLET, ACCESSORY - 12V
-
80608-688 SCREEN, INTAKE - RIGHTSCREEN, INTAKE - RIGHT
-
80608-689 SCREEN, INTAKE - LEFTSCREEN, INTAKE - LEFT
-
90609-911 SWITCH, IGNITION (INC. 10-12)SWITCH, IGNITION (INC. 10-12)
-
100430-050 ...NUT, RETAINING...NUT, RETAINING
-
110430-042 ...KEY, IGNITION Y SERIES - LEFT-SIDE CUT...KEY, IGNITION Y SERIES - LEFT-SIDE CUT
-
110430-043 ...KEY, IGNITION Z SERIES - RIGHT-SIDE CUT...KEY, IGNITION Z SERIES - RIGHT-SIDE CUT
-
120430-054 ...COVER, KEY...COVER, KEY
-
130620-368 GAUGE, SPEEDOMETERGAUGE, SPEEDOMETER
-
146606-288 BRACKET, SPEEDOMETER GAUGE - CENTERBRACKET, SPEEDOMETER GAUGE - CENTER
-
150423-493 NUT W/WASHERNUT W/WASHER
-
168410-616 SCREW, CAPSCREW, CAP
-
176606-130 BRACKET, SPEEDOMETER GAUGE - RIGHTBRACKET, SPEEDOMETER GAUGE - RIGHT
-
176606-131 BRACKET, SPEEDOMETER GAUGE - LEFTBRACKET, SPEEDOMETER GAUGE - LEFT
-
188053-212 WASHER, EXTERNAL TOOTH LOCKWASHER, EXTERNAL TOOTH LOCK
-
198427-602 NUT, LOCKNUT, LOCK
-
200423-355 SCREW, SHOULDERSCREW, SHOULDER
-
211623-764 NUT, EXPANSIONNUT, EXPANSION
-
226606-481 WINDSHIELD - LOW - GREENWINDSHIELD - LOW - GREEN
-
238477-516 SCREW, MACHINESCREW, MACHINE
