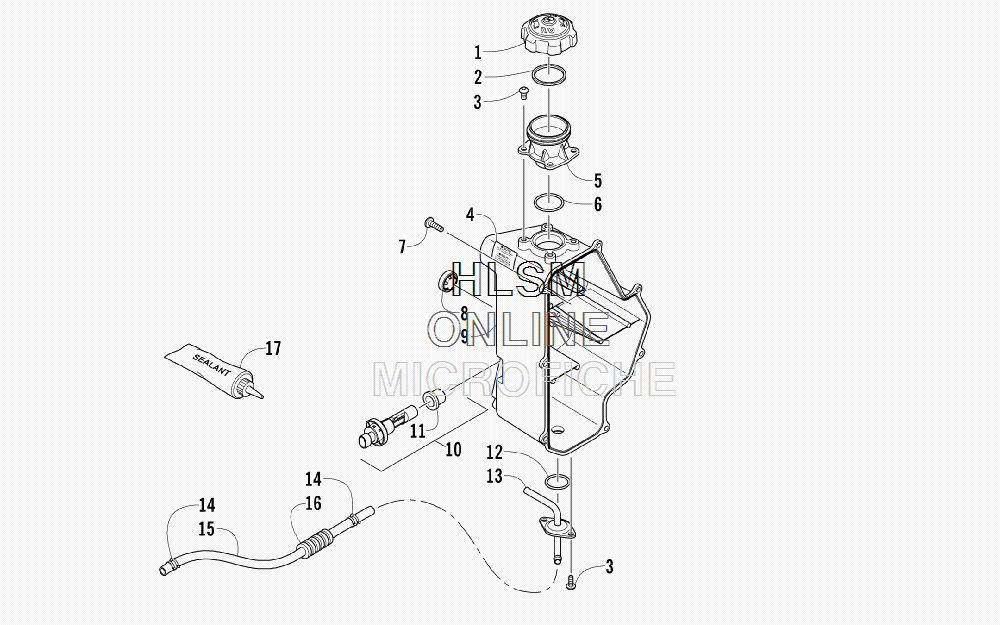

OIL TANK ASSEMBLY для Arctic Cat M 800 HCR - WHITE - INTERNATIONAL [S2013M8HHCOSW] - 2013 года выпуска
-
№АртикулНазвание
-
11670-365 CAP, OIL TANK (INC. 2)CAP, OIL TANK (INC. 2)
-
20109-733 ...SEAL, CAP - OIL TANK...SEAL, CAP - OIL TANK
-
31623-969 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
44611-532 DECAL, OIL TANKDECAL, OIL TANK
-
52670-329 NECK, OIL FILLNECK, OIL FILL
-
61623-972 O-RINGO-RING
-
71623-814 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
82670-257 GLASS, SIGHTGLASS, SIGHT
-
91770-019 TANK, OILTANK, OIL
-
100609-915 SENSOR, LOW OIL (INC. 11)SENSOR, LOW OIL (INC. 11)
-
110609-924 ...GROMMET...GROMMET
-
120648-441 O-RINGO-RING
-
132670-229 FITTING, OUTLETFITTING, OUTLET
-
141623-042 CLAMP, HOSECLAMP, HOSE
-
150610-692 HOSE - GREEN - 25 FTHOSE - GREEN - 25 FT
-
150610-693 HOSE - GREEN - 100 FTHOSE - GREEN - 100 FT
-
161619-345 CONDUIT, FLEXIBLE - 3 FTCONDUIT, FLEXIBLE - 3 FT
-
171048-063 SEALANT - 70 MLSEALANT - 70 ML
