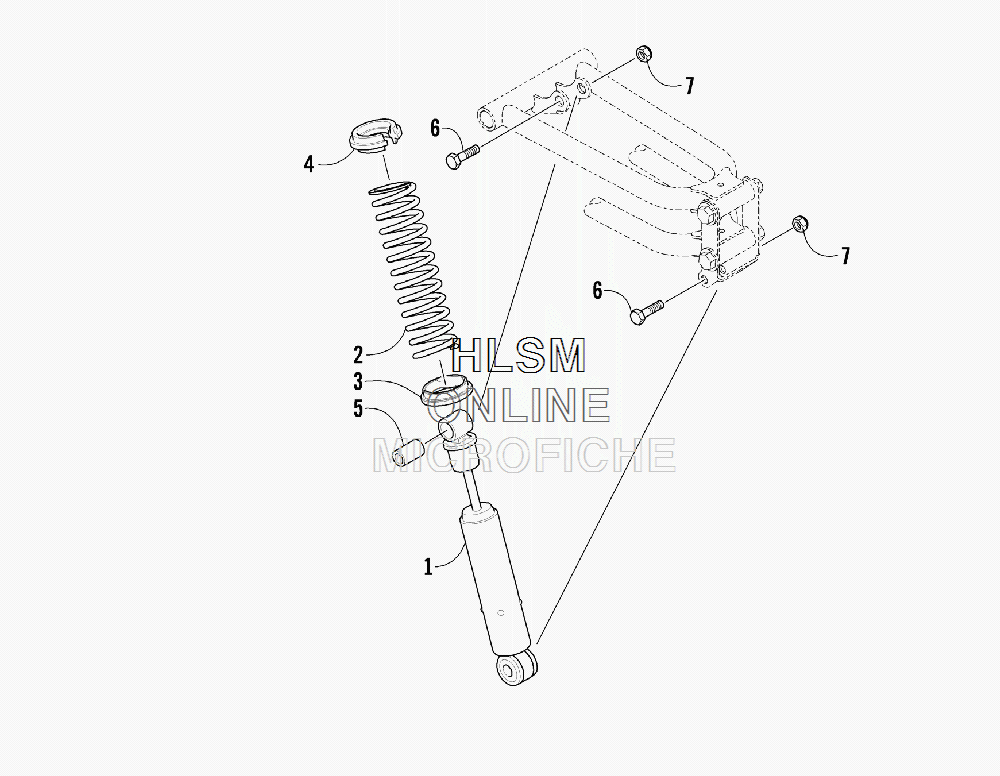

FRONT SUSPENSION SHOCK ABSORBER для Arctic Cat Sno Pro 120 [S2013ACAAAUSG] - 2013 года выпуска
-
№АртикулНазвание
-
12603-517 SHOCK, SKISHOCK, SKI
-
22703-397 SPRING, SHOCK - WHITESPRING, SHOCK - WHITE
-
30403-027 RETAINER, SPRING - LOWERRETAINER, SPRING - LOWER
-
42603-520 RETAINER, SPRING - UPPERRETAINER, SPRING - UPPER
-
51603-531 AXLEAXLE
-
61623-854 SCREW, CAPSCREW, CAP
-
71623-866 NUT, LOCKNUT, LOCK
