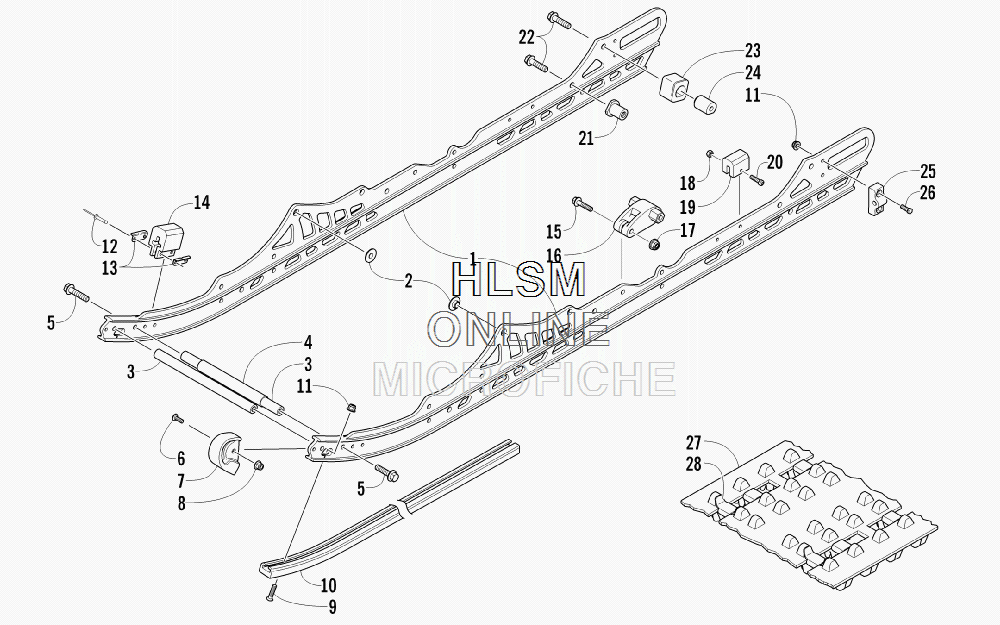

SLIDE RAIL AND TRACK ASSEMBLY для Arctic Cat TZ1 LXR [S2013TZNLXUSB] - 2013 года выпуска
-
№АртикулНазвание
-
-2704-227 COMPLETE SKID FRAME ASSEMBLYCOMPLETE SKID FRAME ASSEMBLY
-
12704-226 RAIL, FORMED - BLACKRAIL, FORMED - BLACK
-
23604-266 INSERT, RAILINSERT, RAIL
-
33604-268 AXLEAXLE
-
42604-281 SPACERSPACER
-
58408-826 SCREW, CAPSCREW, CAP
-
68476-625 SCREW, MACHINESCREW, MACHINE
-
73604-003 END CAP, SLIDE RAILEND CAP, SLIDE RAIL
-
88427-602 NUT, LOCKNUT, LOCK
-
90123-859 SCREW, MACHINESCREW, MACHINE
-
103604-302 WEARSTRIP, SLIDE RAILWEARSTRIP, SLIDE RAIL
-
118047-366 NUT, LOCKNUT, LOCK
-
128060-633 RIVETRIVET
-
130604-967 BRACKET, RETAININGBRACKET, RETAINING
-
140604-918 PAD, SHOCKPAD, SHOCK
-
158408-850 SCREW, CAPSCREW, CAP
-
163604-513 BLOCK, SPRING TENSIONBLOCK, SPRING TENSION
-
178427-802 NUT, LOCKNUT, LOCK
-
188427-502 NUT, LOCKNUT, LOCK
-
191604-429 PAD, SHOCKPAD, SHOCK
-
208470-540 SCREW, MACHINESCREW, MACHINE
-
213604-275 BUSHING, STOP - REAR ARMBUSHING, STOP - REAR ARM
-
228408-031 SCREW, CAPSCREW, CAP
-
232604-545 BLOCK, REAR ARM COUPLERBLOCK, REAR ARM COUPLER
-
243604-291 BUSHING, COUPLER BLOCKBUSHING, COUPLER BLOCK
-
250704-352 ADJUSTER, TRACKADJUSTER, TRACK
-
268002-042 SCREW, CAPSCREW, CAP
-
272602-101 TRACK ASSEMBLY (INC. 28)TRACK ASSEMBLY (INC. 28)
-
282602-385 ...CLIP, GUIDE...CLIP, GUIDE
