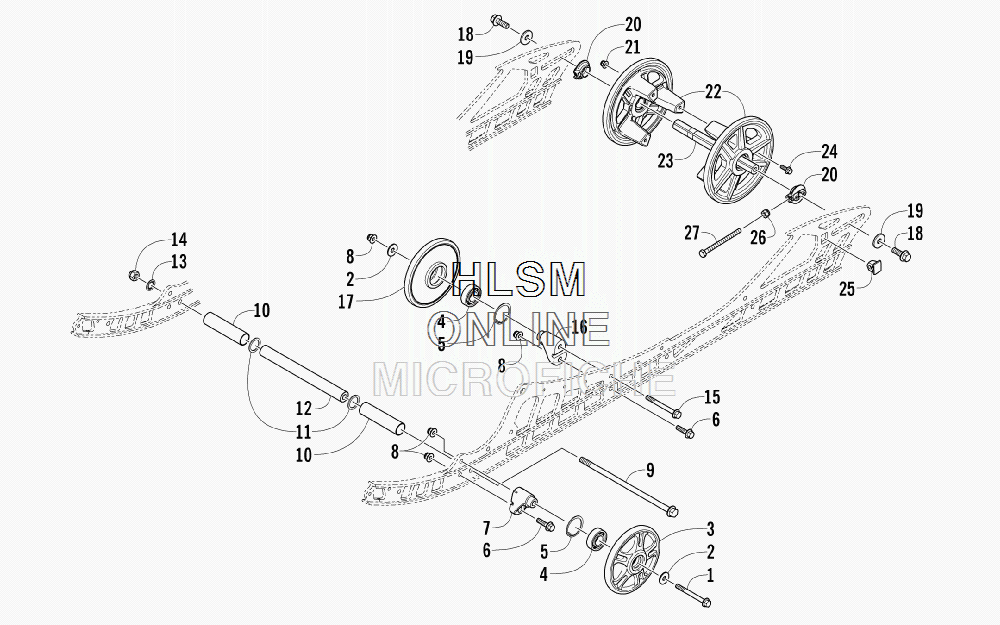

IDLER WHEEL ASSEMBLY для Arctic Cat XF 1100 CrossTour - ORANGE [SAC2013XFNXPUSO] - 2013 года выпуска
-
№АртикулНазвание
-
18408-870 SCREW, CAPSCREW, CAP
-
28450-133 WASHERWASHER
-
33604-386 WHEEL, IDLER - BLACK (INC. 4-5)WHEEL, IDLER - BLACK (INC. 4-5)
-
43604-033 ...BEARING...BEARING
-
50623-946 ...RING, RETAINING...RING, RETAINING
-
68408-830 SCREW, CAPSCREW, CAP
-
73604-207 BLOCK, MOUNTING - IDLER WHEELBLOCK, MOUNTING - IDLER WHEEL
-
88427-802 NUT, LOCKNUT, LOCK
-
91423-064 SCREW, CAPSCREW, CAP
-
103604-083 SPACER, SHOCK - FRONT ARMSPACER, SHOCK - FRONT ARM
-
110623-912 WASHERWASHER
-
123604-269 AXLEAXLE
-
131623-992 WASHER, INTERNAL TOOTH LOCKWASHER, INTERNAL TOOTH LOCK
-
148422-002 NUT, LOCKNUT, LOCK
-
158408-880 SCREW, CAPSCREW, CAP
-
163604-004 BLOCK, MOUNTING - IDLER WHEELBLOCK, MOUNTING - IDLER WHEEL
-
173604-807 WHEEL, IDLER (INC. 4-5)WHEEL, IDLER (INC. 4-5)
-
188408-031 SCREW, CAPSCREW, CAP
-
191623-931 WASHERWASHER
-
203604-641 BUSHING, ADJUSTERBUSHING, ADJUSTER
-
218427-602 NUT, LOCKNUT, LOCK
-
223604-792 WHEEL, IDLERWHEEL, IDLER
-
233604-640 AXLE, REARAXLE, REAR
-
248408-620 SCREW, CAPSCREW, CAP
-
253604-647 ADJUSTER, TRACKADJUSTER, TRACK
-
268422-802 NUT, LOCKNUT, LOCK
-
271623-682 SCREW, CAPSCREW, CAP
