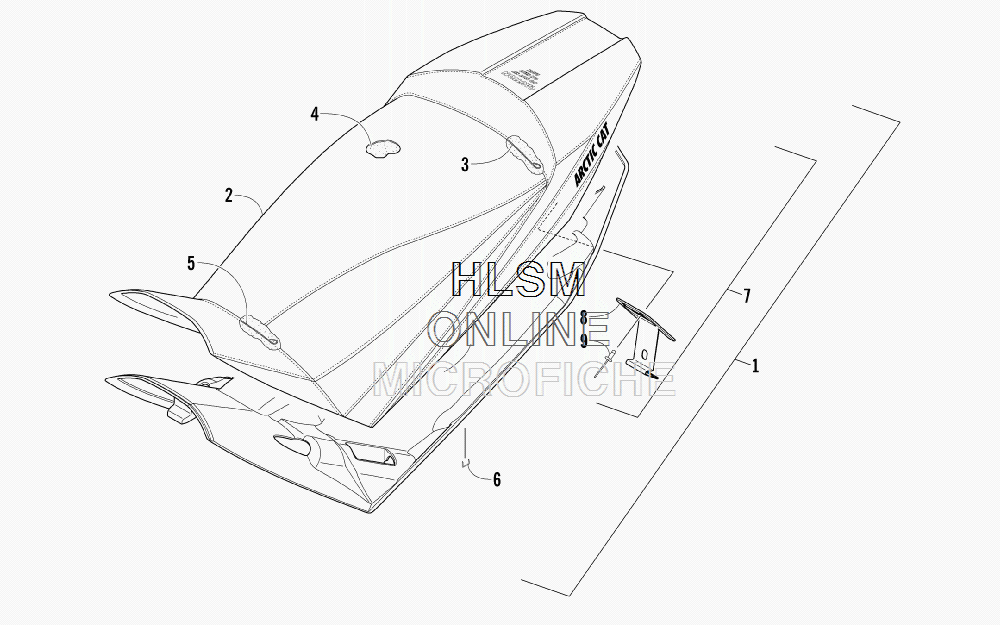

SEAT ASSEMBLY для Arctic Cat XF 1100 Sno Pro - GREEN [S2013XFNSPUSG] - 2013 года выпуска
-
№АртикулНазвание
-
15706-310 COMPLETE SEAT ASSEMBLY - GREEN (INC. 2-9)COMPLETE SEAT ASSEMBLY - GREEN (INC. 2-9)
-
25706-311 ...COVER, SEAT - GREEN (INC. 3)...COVER, SEAT - GREEN (INC. 3)
-
33606-369 ......WIRE, SEAT......WIRE, SEAT
-
40717-202 ...FOAM, SEAT...FOAM, SEAT
-
56606-461 ...WIRE, SEAT...WIRE, SEAT
-
60624-528 ...STAPLE...STAPLE
-
75706-240 ...SEAT-BASE (INC. 8-9)...SEAT-BASE (INC. 8-9)
-
86606-452 ......LATCH, SEAT......LATCH, SEAT
-
98061-686 ......RIVET......RIVET
