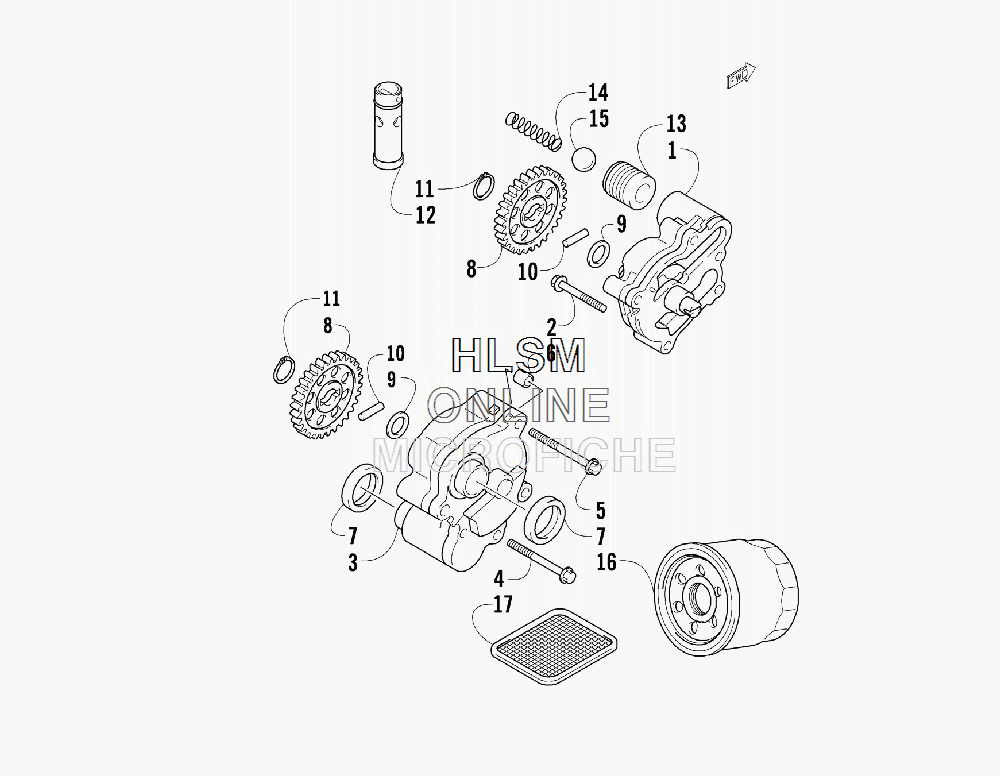

OIL PUMP ASSEMBLY для Arctic Cat XF 1100 Turbo Sno Pro Limited - WHITE [S2013XFNLEUSW] - 2013 года выпуска
-
№АртикулНазвание
-
13007-161 PUMP, OIL - FEEDPUMP, OIL - FEED
-
23007-496 SCREW, CAPSCREW, CAP
-
33007-162 PUMP, OIL - SCAVENGEPUMP, OIL - SCAVENGE
-
43007-505 SCREW, CAPSCREW, CAP
-
53007-370 SCREW, CAPSCREW, CAP
-
63005-206 PIN, DOWELPIN, DOWEL
-
73007-163 SEAL, OILSEAL, OIL
-
83007-164 GEAR, DRIVENGEAR, DRIVEN
-
93007-165 WASHERWASHER
-
103007-166 PINPIN
-
113423-876 RING, RETAININGRING, RETAINING
-
123007-167 VALVE, OIL-RELIEFVALVE, OIL-RELIEF
-
133007-168 SEAT, OIL-FEED CHECK VALVESEAT, OIL-FEED CHECK VALVE
-
143007-169 SPRING, OIL-FEED CHECK VALVESPRING, OIL-FEED CHECK VALVE
-
153007-170 BALL, OIL-FEED CHECK VALVEBALL, OIL-FEED CHECK VALVE
-
163007-171 FILTER, OILFILTER, OIL
-
173007-172 STRAINER, OILSTRAINER, OIL
