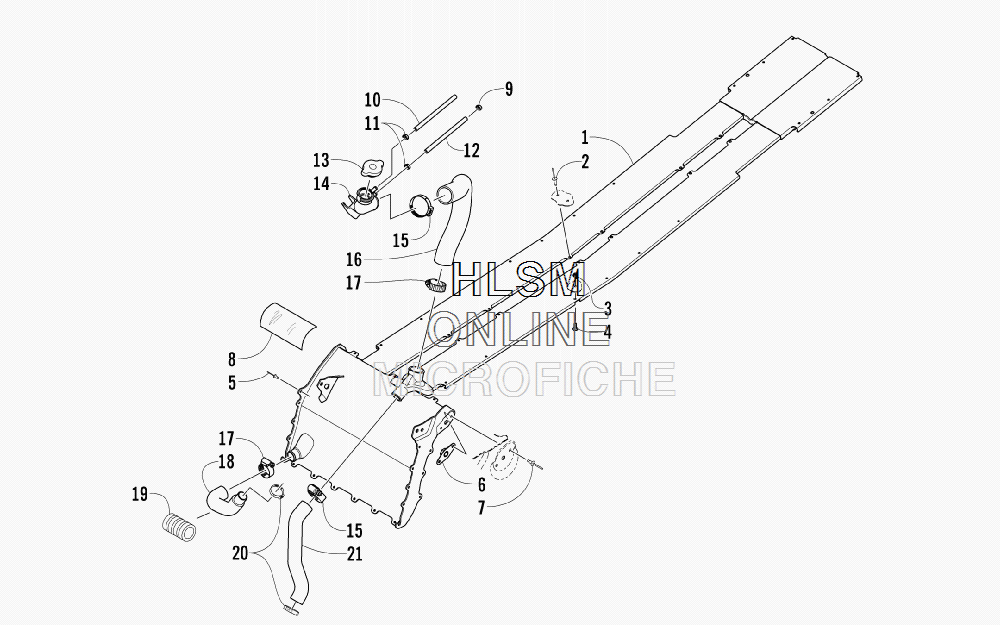

COOLING ASSEMBLY для Arctic Cat XF 800 Sno Pro - ORANGE [S2013XFHSPUSO] - 2013 года выпуска
-
№АртикулНазвание
-
10713-082 EXCHANGER, HEATEXCHANGER, HEAT
-
28060-682 RIVETRIVET
-
38422-502 NUT, LOCKNUT, LOCK
-
48476-516 SCREW, MACHINESCREW, MACHINE
-
58060-686 RIVETRIVET
-
60608-631 PLATE, RETAININGPLATE, RETAINING
-
78060-688 RIVETRIVET
-
80619-206 FOIL, PROTECTIVE - 30 FTFOIL, PROTECTIVE - 30 FT
-
91623-619 CLAMP, HOSECLAMP, HOSE
-
100610-692 HOSE - GREEN - 25 FTHOSE - GREEN - 25 FT
-
100610-693 HOSE - GREEN - 100 FTHOSE - GREEN - 100 FT
-
111623-655 CLAMP, HOSECLAMP, HOSE
-
120610-538 HOSE, VENT - 25 FTHOSE, VENT - 25 FT
-
132606-284 CAPCAP
-
140613-030 NECK, FILLERNECK, FILLER
-
150423-317 CLAMP, HOSECLAMP, HOSE
-
160613-097 HOSE, COOLANT - FILLER NECK/HEAT EXCHANGERHOSE, COOLANT - FILLER NECK/HEAT EXCHANGER
-
171623-981 CLAMP, HOSECLAMP, HOSE
-
180610-864 HOSE, COOLANT - ENGINE/HEAT EXCHANGERHOSE, COOLANT - ENGINE/HEAT EXCHANGER
-
190619-619 CONDUIT, FLEXIBLE - 4 IN.CONDUIT, FLEXIBLE - 4 IN.
-
201623-656 CLAMP, HOSECLAMP, HOSE
-
210613-033 HOSE, COOLANT - HEAT EXCHANGER/ENGINEHOSE, COOLANT - HEAT EXCHANGER/ENGINE
