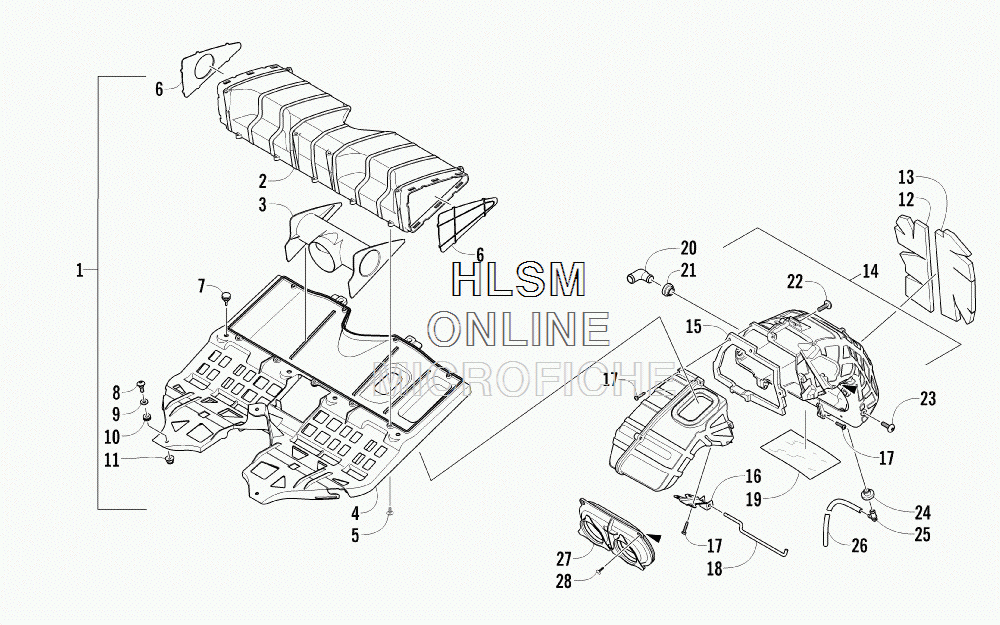

AIR SILENCER ASSEMBLY для Arctic Cat Bearcat Z1 XT - BLUE [S2014BCNWTUSL] - 2014 года выпуска
-
№АртикулНазвание
-
10770-805 INTAKE, SUPPORT - ASSEMBLY (INC. 2-5)INTAKE, SUPPORT - ASSEMBLY (INC. 2-5)
-
21670-732 ...INTAKE, SUPPORT - TOP...INTAKE, SUPPORT - TOP
-
31670-828 ...RESONATOR, TOP - PLENUM...RESONATOR, TOP - PLENUM
-
41670-980 ...INTAKE, SUPPORT - BOTTOM...INTAKE, SUPPORT - BOTTOM
-
50623-784 ...SCREW, SELF-TAPPING...SCREW, SELF-TAPPING
-
61670-830 COVER, TOP PLENUM - RIGHTCOVER, TOP PLENUM - RIGHT
-
61670-831 COVER, TOP PLENUM - LEFTCOVER, TOP PLENUM - LEFT
-
74606-276 GROMMETGROMMET
-
80423-356 SCREW, SHOULDERSCREW, SHOULDER
-
98050-212 WASHERWASHER
-
104606-275 GROMMETGROMMET
-
118427-602 NUT, LOCKNUT, LOCK
-
120617-542 FOAM, AIR SILENCER - RIGHTFOAM, AIR SILENCER - RIGHT
-
130617-543 FOAM, AIR SILENCER - LEFTFOAM, AIR SILENCER - LEFT
-
140770-951 SILENCER, AIR - ASSEMBLY (INC. 15-18)SILENCER, AIR - ASSEMBLY (INC. 15-18)
-
152670-209 ...SEAL...SEAL
-
162670-208 ...BRACKET, LATCH...BRACKET, LATCH
-
171623-934 ...SCREW, MACHINE...SCREW, MACHINE
-
181623-910 ...PIN, RETAINING...PIN, RETAINING
-
190619-206 FOIL, PROTECTIVE - 30 FTFOIL, PROTECTIVE - 30 FT
-
201670-784 FITTING, ELBOW-PLASTICFITTING, ELBOW-PLASTIC
-
211670-785 GROMMETGROMMET
-
221623-609 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
230423-029 SCREW, MACHINESCREW, MACHINE
-
241670-325 GROMMETGROMMET
-
251670-324 ELBOW, 90 DEG-1/4 BARBELBOW, 90 DEG-1/4 BARB
-
260610-692 HOSE - GREEN - 25 FTHOSE - GREEN - 25 FT
-
260610-693 HOSE - GREEN - 100 FTHOSE - GREEN - 100 FT
-
272670-024 BOOT, DUAL INTAKEBOOT, DUAL INTAKE
-
280623-165 CLIP, X-MAS TREE-5/32CLIP, X-MAS TREE-5/32
