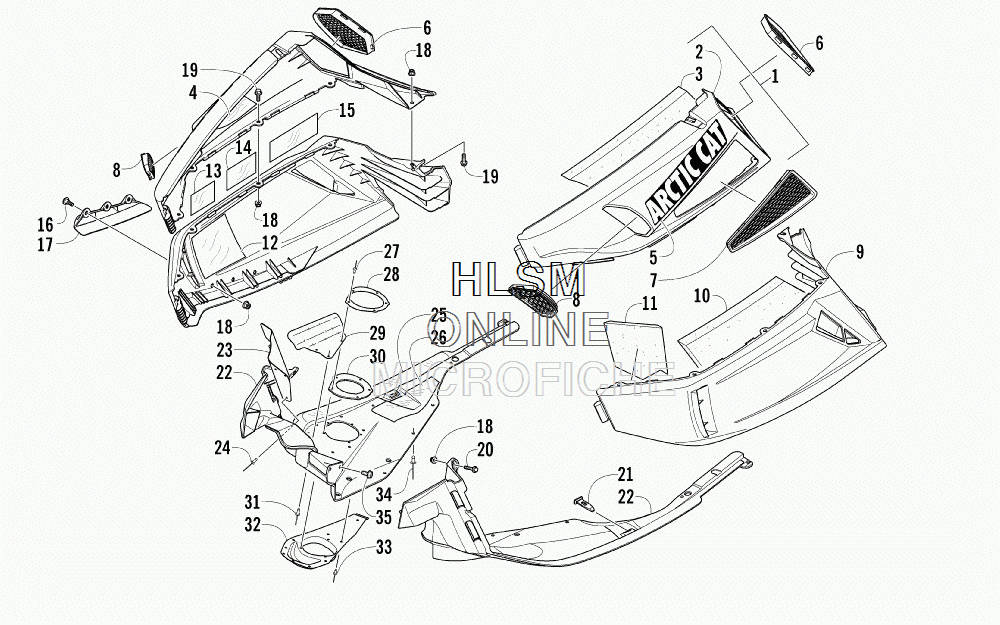

SKID PLATE AND SIDE PANEL ASSEMBLY для Arctic Cat F570 [S2014F5DFCUSG] - 2014 года выпуска

№

Артикул

Название
1

3718-820 PANEL, SIDE - UPPER - RIGHT W/DECALS - BLACK (INC. 2-5)

PANEL, SIDE - UPPER - RIGHT W/DECALS - BLACK (INC. 2-5)

44 300 ₽
1

4718-457 PANEL, SIDE - UPPER - LEFT W/DECALS - BLACK (INC. 2-3 AND 5)

PANEL, SIDE - UPPER - LEFT W/DECALS - BLACK (INC. 2-3 AND 5)

55 530 ₽
2

2718-288 ...PANEL, SIDE - UPPER - RIGHT W/O DECALS - BLACK (INC. 3-4)

...PANEL, SIDE - UPPER - RIGHT W/O DECALS - BLACK (INC. 3-4)

40 550 ₽
2

2718-793 ...PANEL, SIDE - UPPER - LEFT W/O DECALS - BLACK (INC. 3)

...PANEL, SIDE - UPPER - LEFT W/O DECALS - BLACK (INC. 3)

39 310 ₽
3

0617-562 ......FOAM, UPPER SIDE PANEL - RIGHT

......FOAM, UPPER SIDE PANEL - RIGHT

6 860 ₽
3

0617-057 ......FOAM, UPPER SIDE PANEL - LEFT

......FOAM, UPPER SIDE PANEL - LEFT

1 020 ₽
4

4606-799 ......FOIL, PROTECTIVE

......FOIL, PROTECTIVE

360 ₽
5

0621-056 ...DECAL, "ARCTIC CAT"

...DECAL, "ARCTIC CAT"

11 020 ₽
6

4606-650 VENT, UPPER SIDE PANEL - REAR - RIGHT

VENT, UPPER SIDE PANEL - REAR - RIGHT

3 950 ₽
6

4606-651 VENT, UPPER SIDE PANEL - REAR - LEFT

VENT, UPPER SIDE PANEL - REAR - LEFT

3 950 ₽
7

5606-185 VENT, UPPER SIDE PANEL - CENTER - LEFT

VENT, UPPER SIDE PANEL - CENTER - LEFT

3 320 ₽
8

4606-662 VENT, UPPER SIDE PANEL - FORWARD - RIGHT

VENT, UPPER SIDE PANEL - FORWARD - RIGHT

3 110 ₽
8

4606-663 VENT, UPPER SIDE PANEL - FORWARD - LEFT

VENT, UPPER SIDE PANEL - FORWARD - LEFT

3 110 ₽
9

2718-274 PANEL, SIDE - LOWER - RIGHT - BLACK (INC. 10-12)

PANEL, SIDE - LOWER - RIGHT - BLACK (INC. 10-12)

44 510 ₽
9

2718-349 PANEL, SIDE - LOWER - LEFT - BLACK (INC. 10-11)

PANEL, SIDE - LOWER - LEFT - BLACK (INC. 10-11)

44 510 ₽
10

0617-568 ...FOAM, LOWER SIDE PANEL - REAR - RIGHT

...FOAM, LOWER SIDE PANEL - REAR - RIGHT

13 930 ₽
10

0617-567 ...FOAM, LOWER SIDE PANEL - REAR - LEFT

...FOAM, LOWER SIDE PANEL - REAR - LEFT

13 930 ₽
11

0617-564 ...FOAM, LOWER SIDE PANEL - FRONT - RIGHT

...FOAM, LOWER SIDE PANEL - FRONT - RIGHT

2 490 ₽
11

0617-566 ...FOAM, LOWER SIDE PANEL - FRONT - LEFT

...FOAM, LOWER SIDE PANEL - FRONT - LEFT

2 490 ₽
12

5606-548 ...FOIL, PROTECTIVE - RIGHT

...FOIL, PROTECTIVE - RIGHT

400 ₽
13

6606-219 FOIL, PROTECTIVE-127X191

FOIL, PROTECTIVE-127X191

690 ₽
14

6606-218 FOIL, PROTECTIVE-102X152

FOIL, PROTECTIVE-102X152

520 ₽
15

6606-220 FOIL, PROTECTIVE-127X343

FOIL, PROTECTIVE-127X343

960 ₽
16

0423-355 SCREW, SHOULDER

SCREW, SHOULDER

150 ₽
17

5606-404 DEFLECTOR, EXHAUST

DEFLECTOR, EXHAUST

2 280 ₽
18

8427-602 NUT, LOCK

NUT, LOCK

440 ₽
19

8408-620 SCREW, CAP

SCREW, CAP

110 ₽
20

8408-635 SCREW, CAP

SCREW, CAP

110 ₽
21

4606-926 STRAP, HOLD-DOWN

STRAP, HOLD-DOWN

710 ₽
22

5706-172 PLATE, SKID - RIGHT

PLATE, SKID - RIGHT

8 310 ₽
22

4706-073 PLATE, SKID - LEFT

PLATE, SKID - LEFT

8 520 ₽
23

6606-423 SHIELD, HEAT - HINGE

SHIELD, HEAT - HINGE

1 870 ₽
24

8061-506 RIVET, BLIND-LF SS54 BLACK

RIVET, BLIND-LF SS54 BLACK

150 ₽
25

4606-798 FOIL,PROTECTIVE-RH SKID PLATE-OUTER

FOIL,PROTECTIVE-RH SKID PLATE-OUTER

380 ₽
26

4606-797 FOIL,PROTECTIVE-RH SKID PLATE-CENTER

FOIL,PROTECTIVE-RH SKID PLATE-CENTER

650 ₽
27

8060-510 RIVET, BLIND-DH SS58 BLK

RIVET, BLIND-DH SS58 BLK

110 ₽
28

1712-348 PLATE, EXHAUST - OUTLET

PLATE, EXHAUST - OUTLET

2 280 ₽
29

2612-268 SHIELD, HEAT

SHIELD, HEAT

3 320 ₽
30

2612-287 SEAL, EXHAUST - OUTLET

SEAL, EXHAUST - OUTLET

2 490 ₽
31

8061-508 RIVET, BLIND-LF SS56 BLACK

RIVET, BLIND-LF SS56 BLACK

110 ₽
32

1712-501 SHIELD, HEAT - EXHAUST OUTLET

SHIELD, HEAT - EXHAUST OUTLET

4 780 ₽
33

0623-778 RIVET, BULBEX-BF01-0625

RIVET, BULBEX-BF01-0625

170 ₽
34

8061-708 RIVET, BLIND-LF SS66 BLACK

RIVET, BLIND-LF SS66 BLACK

150 ₽
35

0623-966 SCREW, SELF-TAPPING

SCREW, SELF-TAPPING

170 ₽
