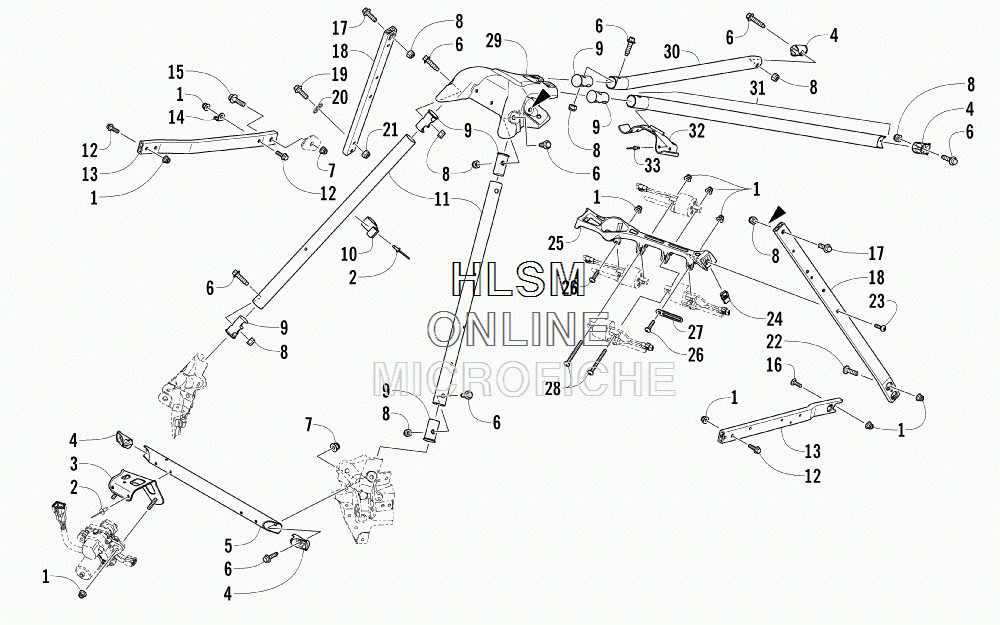

STEERING SUPPORT ASSEMBLY для Arctic Cat M 8000 - GREEN [S2014M8HE3USG] - 2014 года выпуска
-
№АртикулНазвание
-
18427-602 NUT, LOCKNUT, LOCK
-
28060-686 RIVETRIVET
-
34706-845 BRACKET, MOUNTING - SERVOMOTORBRACKET, MOUNTING - SERVOMOTOR
-
41607-002 INSERTINSERT
-
51707-582 SUPPORT, SHOCK MOUNT BRACKETSUPPORT, SHOCK MOUNT BRACKET
-
61623-982 SCREW, CAPSCREW, CAP
-
78427-802 NUT, LOCKNUT, LOCK
-
88422-802 NUT, LOCKNUT, LOCK
-
91607-094 INSERTINSERT
-
101623-938 CLAMP, ROUTINGCLAMP, ROUTING
-
111707-956 SPAR, FRONTSPAR, FRONT
-
128408-630 SCREW, CAPSCREW, CAP
-
130607-248 SUPPORT, CHASSIS - RIGHTSUPPORT, CHASSIS - RIGHT
-
131607-368 SUPPORT, CHASSIS - LEFTSUPPORT, CHASSIS - LEFT
-
142612-707 TAB, SPRINGTAB, SPRING
-
158408-885 SCREW, CAPSCREW, CAP
-
161623-917 BOLT, CARRIAGEBOLT, CARRIAGE
-
178408-820 SCREW, CAPSCREW, CAP
-
180607-252 SUPPORT, SIDE - REAR RIGHTSUPPORT, SIDE - REAR RIGHT
-
181607-393 SUPPORT, SIDE - REAR LEFTSUPPORT, SIDE - REAR LEFT
-
198408-625 SCREW, CAPSCREW, CAP
-
208053-212 WASHER, EXTERNAL TOOTH LOCKWASHER, EXTERNAL TOOTH LOCK
-
218422-602 NUT, LOCKNUT, LOCK
-
228476-616 SCREW, MACHINESCREW, MACHINE
-
238476-626 SCREW, MACHINESCREW, MACHINE
-
240423-577 CLIP, U-NUTCLIP, U-NUT
-
250708-626 BRACKET, MOUNTING - COILBRACKET, MOUNTING - COIL
-
268468-640 SCREW, MACHINESCREW, MACHINE
-
271623-984 CLAMP, ROUTINGCLAMP, ROUTING
-
288468-665 SCREW, MACHINESCREW, MACHINE
-
291707-570 SUPPORT, STEERINGSUPPORT, STEERING
-
301707-566 SPAR, REAR - RIGHTSPAR, REAR - RIGHT
-
315706-225 SPAR, REAR - LEFT (INC. 32-33)SPAR, REAR - LEFT (INC. 32-33)
-
326606-391 ...BRACKET, HOLD-DOWN - SEAT-BASE...BRACKET, HOLD-DOWN - SEAT-BASE
-
338060-484 ...RIVET...RIVET
