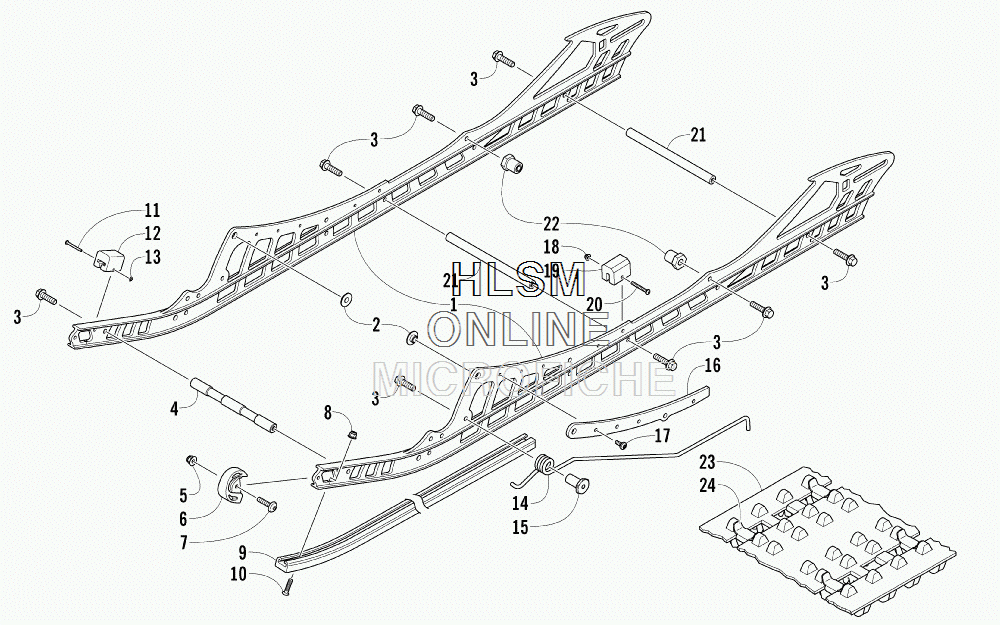

SLIDE RAIL AND TRACK ASSEMBLY для Arctic Cat M 9000 HCR - GREEN [S2014M9NHCUSG] - 2014 года выпуска
-
№АртикулНазвание
-
-2704-436 COMPLETE SKID FRAME ASSEMBLYCOMPLETE SKID FRAME ASSEMBLY
-
13604-889 RAIL, FORMEDRAIL, FORMED
-
23604-266 INSERT, RAILINSERT, RAIL
-
38408-826 SCREW, CAPSCREW, CAP
-
43604-630 AXLEAXLE
-
58427-602 NUT, LOCKNUT, LOCK
-
63604-836 END CAP, SLIDE RAILEND CAP, SLIDE RAIL
-
78476-625 SCREW, MACHINESCREW, MACHINE
-
88047-366 NUT, LOCKNUT, LOCK
-
93604-940 WEARSTRIP, SLIDE RAILWEARSTRIP, SLIDE RAIL
-
100123-859 SCREW, MACHINESCREW, MACHINE
-
110123-767 RIVET, SOLIDRIVET, SOLID
-
120104-631 PAD, SHOCKPAD, SHOCK
-
130123-766 NUT, PUSHNUT, PUSH
-
141704-734 SCRATCHER, ICE - RIGHTSCRATCHER, ICE - RIGHT
-
141704-735 SCRATCHER, ICE - LEFTSCRATCHER, ICE - LEFT
-
153604-678 BUSHINGBUSHING
-
163604-686 BRACE, SLIDE RAILBRACE, SLIDE RAIL
-
170423-538 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
188427-502 NUT, LOCKNUT, LOCK
-
191604-429 PAD, SHOCKPAD, SHOCK
-
208470-540 SCREW, MACHINESCREW, MACHINE
-
213604-667 AXLEAXLE
-
223604-635 BUSHING, STOP - REAR ARMBUSHING, STOP - REAR ARM
-
232602-484 TRACK, P/C-15X162X2.60(3.0 PITCH) (85D) (INC. 24)TRACK, P/C-15X162X2.60(3.0 PITCH) (85D) (INC. 24)
-
242602-385 ...CLIP, GUIDE...CLIP, GUIDE
