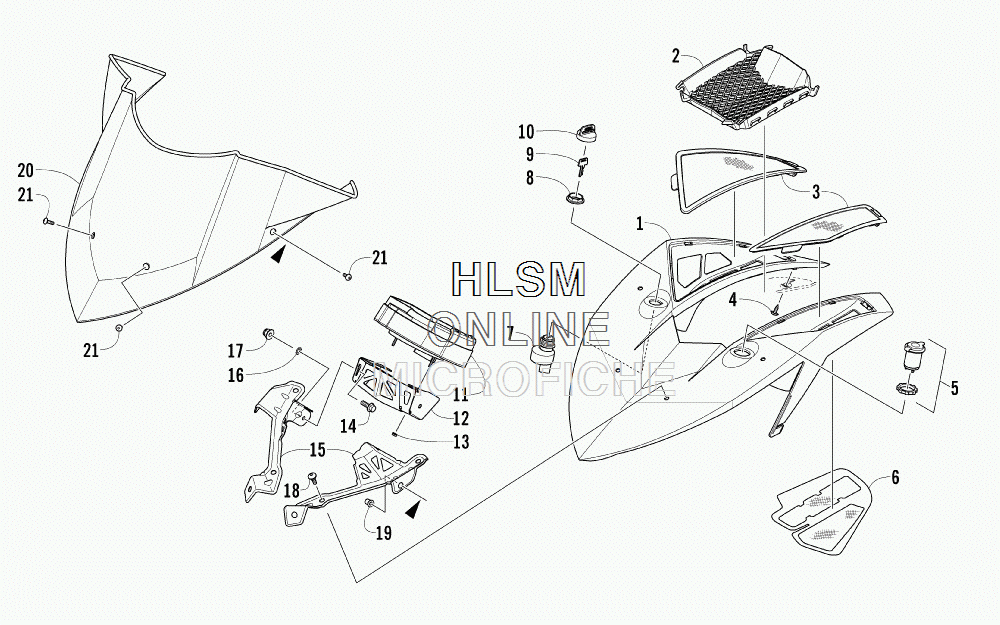

WINDSHIELD AND INSTRUMENTS ASSEMBLIES для Arctic Cat M 9000 Sno Pro - GREEN [S2014M9NSEUSG] - 2014 года выпуска
-
№АртикулНазвание
-
15706-388 POD, INSTRUMENT - GREENPOD, INSTRUMENT - GREEN
-
26606-577 VENT, INTAKEVENT, INTAKE
-
30608-640 VENT, INTAKE - RIGHTVENT, INTAKE - RIGHT
-
30608-641 VENT, INTAKE - LEFTVENT, INTAKE - LEFT
-
41623-129 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
50641-897 OUTLET, ACCESSORY - 12VOUTLET, ACCESSORY - 12V
-
60608-688 SCREEN, INTAKE - RIGHTSCREEN, INTAKE - RIGHT
-
60608-689 SCREEN, INTAKE - LEFTSCREEN, INTAKE - LEFT
-
70609-911 SWITCH, IGNITION (INC. 8-10)SWITCH, IGNITION (INC. 8-10)
-
80430-050 ...NUT, RETAINING...NUT, RETAINING
-
90430-042 ...KEY, IGNITION Y SERIES - LEFT-SIDE CUT...KEY, IGNITION Y SERIES - LEFT-SIDE CUT
-
90430-043 ...KEY, IGNITION Z SERIES - RIGHT-SIDE CUT...KEY, IGNITION Z SERIES - RIGHT-SIDE CUT
-
100430-054 ...COVER, KEY...COVER, KEY
-
110620-368 GAUGE, SPEEDOMETERGAUGE, SPEEDOMETER
-
126606-288 BRACKET, SPEEDOMETER GAUGE - CENTERBRACKET, SPEEDOMETER GAUGE - CENTER
-
130423-493 NUT W/WASHERNUT W/WASHER
-
148410-616 SCREW, CAPSCREW, CAP
-
156606-130 BRACKET, SPEEDOMETER GAUGE - RIGHTBRACKET, SPEEDOMETER GAUGE - RIGHT
-
156606-131 BRACKET, SPEEDOMETER GAUGE - LEFTBRACKET, SPEEDOMETER GAUGE - LEFT
-
168053-212 WASHER, EXTERNAL TOOTH LOCKWASHER, EXTERNAL TOOTH LOCK
-
178427-602 NUT, LOCKNUT, LOCK
-
180423-355 SCREW, SHOULDERSCREW, SHOULDER
-
191623-764 NUT, EXPANSIONNUT, EXPANSION
-
206606-647 WINDSHIELD - LOW - GREENWINDSHIELD - LOW - GREEN
-
218477-516 SCREW, MACHINESCREW, MACHINE
