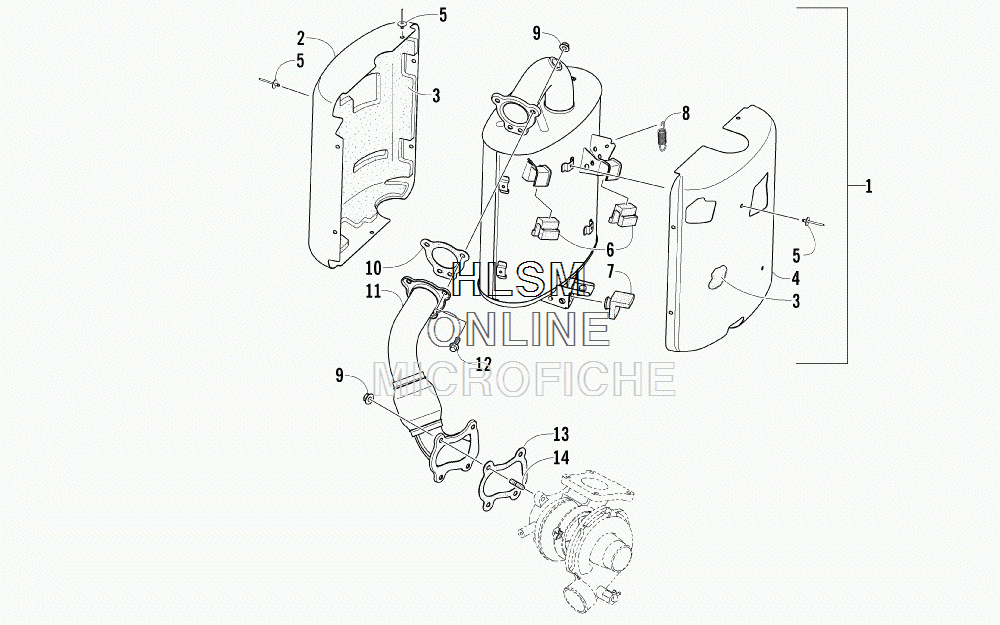

EXHAUST ASSEMBLY для Arctic Cat M 9000 Sno Pro LTD - ORANGE [S2014M9NLEUSO] - 2014 года выпуска
-
№АртикулНазвание
-
11712-760 RESONATOR ASSEMBLY (INC. 2-5)RESONATOR ASSEMBLY (INC. 2-5)
-
22612-650 ...SHIELD, HEAT - RIGHT...SHIELD, HEAT - RIGHT
-
32612-648 ...PACKING, RESONATOR...PACKING, RESONATOR
-
42612-651 ...SHIELD, HEAT - LEFT...SHIELD, HEAT - LEFT
-
51623-799 ...RIVET...RIVET
-
62612-893 GROMMET, RESONATOR MOUNTGROMMET, RESONATOR MOUNT
-
72612-706 GROMMET, RESONATOR MOUNTGROMMET, RESONATOR MOUNT
-
80612-471 SPRING, EXHAUSTSPRING, EXHAUST
-
91623-912 NUT, LOCKNUT, LOCK
-
102612-663 GASKET, EXHAUSTGASKET, EXHAUST
-
111712-698 PIPE, EXHAUSTPIPE, EXHAUST
-
121623-918 SCREW, CAPSCREW, CAP
-
132612-701 GASKET, EXHAUSTGASKET, EXHAUST
-
141623-954 BOLT, STUDBOLT, STUD
