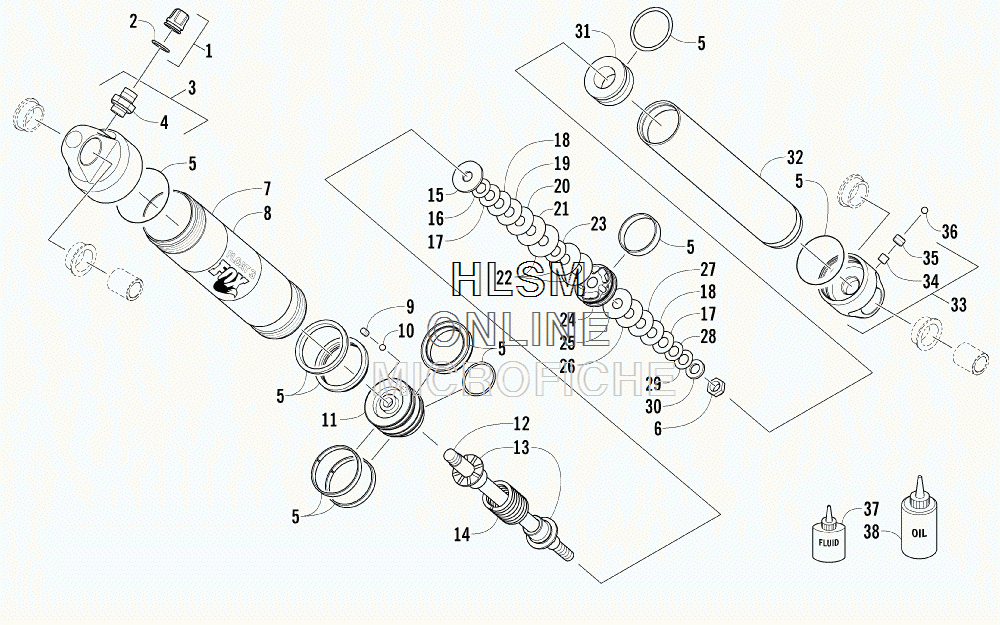

FRONT SUSPENSION SHOCK ABSORBER для Arctic Cat M 9000 Sno Pro LTD - ORANGE [S2014M9NLEUSO] - 2014 года выпуска

№

Артикул

Название
-

3703-256 COMPLETE SHOCK ABSORBER

COMPLETE SHOCK ABSORBER

94 220 ₽
1

3603-334 CAP, AIR VALVE (INC. 2)

CAP, AIR VALVE (INC. 2)

5 400 ₽
2

3603-294 ...O-RING

...O-RING

520 ₽
3

3603-333 END CAP, SHOCK (INC. 4)

END CAP, SHOCK (INC. 4)

23 910 ₽
4

2603-511 ...VALVE, AIR

...VALVE, AIR

4 990 ₽
5

3603-293 KIT, SEAL/CAP REBUILD (INC. 6)

KIT, SEAL/CAP REBUILD (INC. 6)

16 430 ₽
6

3603-018 ...NUT, LOCK

...NUT, LOCK

420 ₽
7

3603-301 BODY, SHOCK - UPPER

BODY, SHOCK - UPPER

35 980 ₽
8

3603-336 DECAL, SHOCK

DECAL, SHOCK

2 490 ₽
9

1603-940 SCREW, SET

SCREW, SET

190 ₽
10

1604-315 BALL, BLEED

BALL, BLEED

630 ₽
11

3603-291 BEARING - ASSEMBLY

BEARING - ASSEMBLY

33 270 ₽
12

2603-415 ROD, SHOCK

ROD, SHOCK

23 290 ₽
13

2603-522 GUIDE, SPRING

GUIDE, SPRING

13 720 ₽
14

2603-656 SPRING

SPRING

14 550 ₽
15

0603-540 WASHER, TOP OUT

WASHER, TOP OUT

2 490 ₽
16

0603-878 VALVE, 0.700 X 0.012 IN.

VALVE, 0.700 X 0.012 IN.

1 870 ₽
17

0603-334 VALVE, 0.800 X 0.008 IN.

VALVE, 0.800 X 0.008 IN.

1 870 ₽
18

0603-337 VALVE, 0.900 X 0.008 IN.

VALVE, 0.900 X 0.008 IN.

1 870 ₽
19

0603-339 VALVE, 1.000 X 0.006 IN.

VALVE, 1.000 X 0.006 IN.

1 040 ₽
20

0603-342 VALVE, 1.100 X 0.006 IN.

VALVE, 1.100 X 0.006 IN.

1 040 ₽
21

0603-346 VALVE, 1.250 X 0.008 IN.

VALVE, 1.250 X 0.008 IN.

1 040 ₽
22

0603-348 VALVE, 1.300 X 0.006 IN.

VALVE, 1.300 X 0.006 IN.

2 070 ₽
23

0603-335 VALVE, 0.800 X 0.010 IN.

VALVE, 0.800 X 0.010 IN.

1 870 ₽
24

0603-209 PISTON, 0.081 IN. - ORIFICE

PISTON, 0.081 IN. - ORIFICE

11 850 ₽
25

0603-347 VALVE, 1.250 X 0.010 IN.

VALVE, 1.250 X 0.010 IN.

2 070 ₽
26

0603-344 VALVE, 1.100 X 0.010 IN.

VALVE, 1.100 X 0.010 IN.

1 870 ₽
27

0603-340 VALVE, 1.000 X 0.008 IN.

VALVE, 1.000 X 0.008 IN.

1 870 ₽
28

0603-330 VALVE, 0.700 X 0.006 IN.

VALVE, 0.700 X 0.006 IN.

1 870 ₽
29

2603-902 VALVE, 0.550 X 0.020 IN.

VALVE, 0.550 X 0.020 IN.

1 020 ₽
30

0603-389 WASHER, BACKUP

WASHER, BACKUP

1 870 ₽
31

3603-023 PISTON, FLOATING W/O-RING

PISTON, FLOATING W/O-RING

8 520 ₽
32

3603-299 BODY, SHOCK - LOWER

BODY, SHOCK - LOWER

20 380 ₽
33

3603-332 END CAP, SHOCK (INC. 34-35)

END CAP, SHOCK (INC. 34-35)

21 830 ₽
34

1604-428 ...PLUG, RUBBER - VALVE

...PLUG, RUBBER - VALVE

2 070 ₽
35

2603-338 ...SCREW, SET

...SCREW, SET

2 280 ₽
36

2603-337 BALL, AIR VALVE

BALL, AIR VALVE

770 ₽
37

4639-012 FLUID, FLOAT SHOCK - 8 OZ

FLUID, FLOAT SHOCK - 8 OZ

5 200 ₽
38

5639-530 OIL, SHOCK - 1 QT

OIL, SHOCK - 1 QT

3 950 ₽
