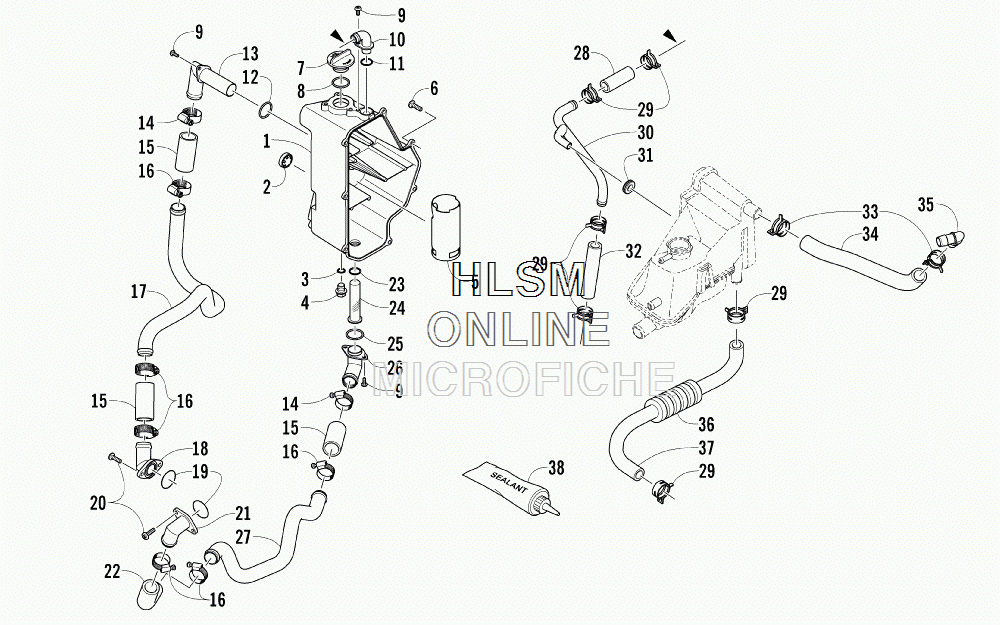

OIL TANK ASSEMBLY для Arctic Cat M 9000 Sno Pro LTD - WHITE [S2014M9NLEUSW] - 2014 года выпуска
![](/wa-data/public/shop/sheme/arctic-cat/snow/515d910f-41d1-407b-92be-1bc63e5d1211.gif)
-
№АртикулНазвание
-
10770-963 TANK, OILTANK, OIL
-
22670-257 GLASS, SIGHTGLASS, SIGHT
-
31602-213 O-RINGO-RING
-
42602-099 PLUG, DRAINPLUG, DRAIN
-
52670-219 TUBE, OIL TANKTUBE, OIL TANK
-
61623-814 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
72670-224 CAP, OIL TANK (INC. 8)CAP, OIL TANK (INC. 8)
-
82670-135 ...SEAL, CAP - OIL TANK...SEAL, CAP - OIL TANK
-
91623-969 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
102670-218 FITTING, ELBOWFITTING, ELBOW
-
110670-183 O-RINGO-RING
-
122670-406 O-RINGO-RING
-
132670-221 FITTING, OIL RETURN - ENGINEFITTING, OIL RETURN - ENGINE
-
141623-981 CLAMP, HOSECLAMP, HOSE
-
150610-840 HOSEHOSE
-
161623-230 CLAMP, HOSECLAMP, HOSE
-
172670-226 TUBE, OIL RETURNTUBE, OIL RETURN
-
182670-170 FITTING, OIL RETURN - ENGINEFITTING, OIL RETURN - ENGINE
-
190648-441 O-RINGO-RING
-
208471-616 SCREW, MACHINESCREW, MACHINE
-
212670-169 FITTING, OIL SUPPLY - ENGINEFITTING, OIL SUPPLY - ENGINE
-
220610-839 HOSE, OIL FEEDHOSE, OIL FEED
-
230673-459 O-RINGO-RING
-
242670-222 SCREEN, OIL TANKSCREEN, OIL TANK
-
252670-290 O-RINGO-RING
-
262670-220 FITTING, OIL SUPPLY - ENGINEFITTING, OIL SUPPLY - ENGINE
-
272670-227 TUBE, OIL FEEDTUBE, OIL FEED
-
280610-869 HOSE, BREATHER - UPPERHOSE, BREATHER - UPPER
-
291623-288 CLAMP, HOSECLAMP, HOSE
-
302670-267 TUBE, BREATHERTUBE, BREATHER
-
311623-958 GROMMETGROMMET
-
320610-844 HOSE, BREATHER - OIL TANKHOSE, BREATHER - OIL TANK
-
331623-292 CLAMP, HOSECLAMP, HOSE
-
340610-880 HOSE, BREATHER - OIL SEPARATOR/AIR FILTERHOSE, BREATHER - OIL SEPARATOR/AIR FILTER
-
352670-324 FITTING, ELBOWFITTING, ELBOW
-
361619-486 CONDUIT, FLEXIBLE - 5 FTCONDUIT, FLEXIBLE - 5 FT
-
370610-843 HOSE, BREATHER - OIL SEPARATORHOSE, BREATHER - OIL SEPARATOR
-
381048-063 SEALANT - 70 MLSEALANT - 70 ML
