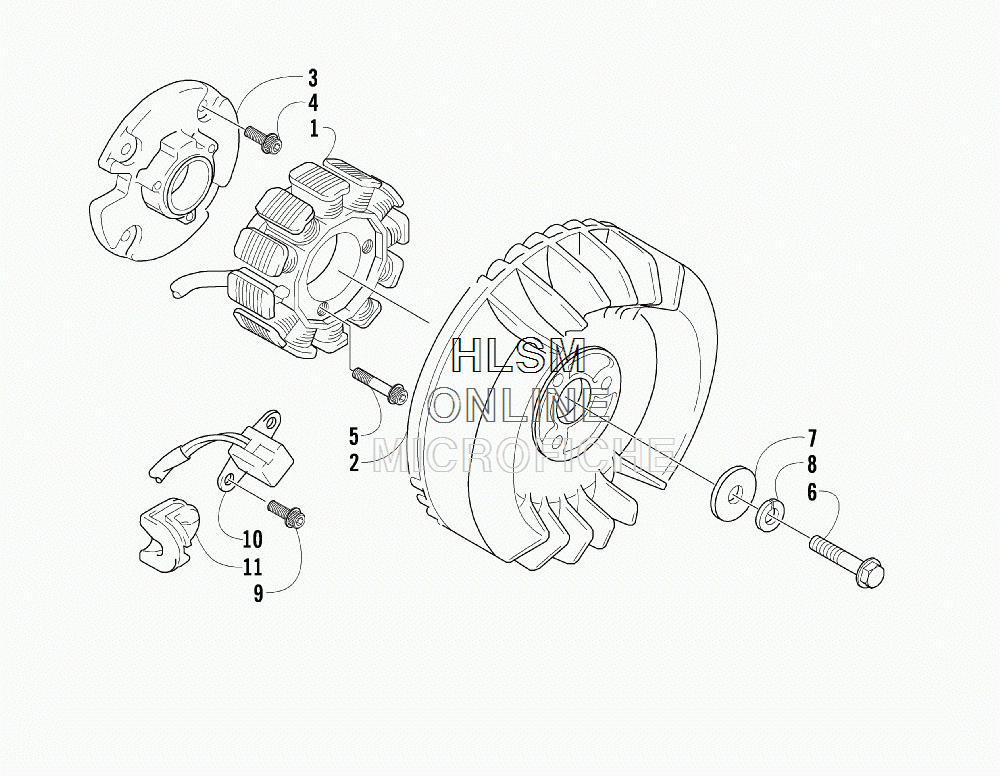

MAGNETO для Arctic Cat T570 - BLACK [S2014T5DFCUSB] - 2014 года выпуска
-
№АртикулНазвание
-
13005-636 STATOR ASSEMBLYSTATOR ASSEMBLY
-
23007-867 ROTOR/FLYWHEELROTOR/FLYWHEEL
-
33006-022 BASE, STATOR - PLATEBASE, STATOR - PLATE
-
43007-449 BOLTBOLT
-
53007-489 BOLTBOLT
-
63006-476 BOLTBOLT
-
73005-987 WASHERWASHER
-
83007-424 WASHER, LOCKWASHER, LOCK
-
93007-433 BOLTBOLT
-
103005-926 SENSOR, IGNITION TIMINGSENSOR, IGNITION TIMING
-
113006-531 GROMMETGROMMET
