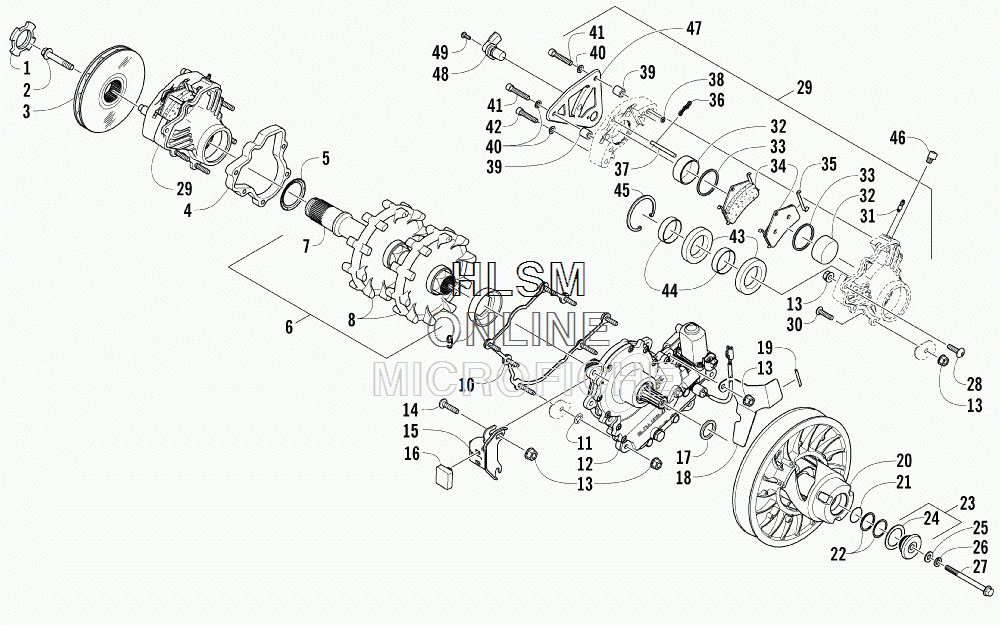

DRIVE TRAIN SHAFT AND BRAKE ASSEMBLIES для Arctic Cat TZ1 - BLACK [S2014TZNTOUSB] - 2014 года выпуска
-
№АртикулНазвание
-
11602-957 NUT, RETAININGNUT, RETAINING
-
21623-461 SCREW, CAPSCREW, CAP
-
31602-656 DISC, BRAKEDISC, BRAKE
-
41602-480 SPACER, BRAKE CALIPERSPACER, BRAKE CALIPER
-
52602-076 SHIELD, BEARINGSHIELD, BEARING
-
60728-181 TRACK, DRIVE - ASSEMBLY (INC. 7-8)TRACK, DRIVE - ASSEMBLY (INC. 7-8)
-
70702-880 ...DRIVESHAFT...DRIVESHAFT
-
81602-783 ...SPROCKET, DRIVE...SPROCKET, DRIVE
-
91602-984 SEALSEAL
-
101702-060 PLATE, MOUNTING - REVERSEPLATE, MOUNTING - REVERSE
-
111623-355 NUT, PUSHNUT, PUSH
-
121702-287 GEARCASE ASSEMBLYGEARCASE ASSEMBLY
-
138427-802 NUT, LOCKNUT, LOCK
-
148476-830 SCREW, MACHINESCREW, MACHINE
-
150708-487 BRACKET, RUBBER SNUBBERBRACKET, RUBBER SNUBBER
-
160608-486 SNUBBER, RUBBERSNUBBER, RUBBER
-
170648-442 WASHER, SHIM (.030 IN.)WASHER, SHIM (.030 IN.)
-
170648-443 WASHER, SHIM (.060 IN.)WASHER, SHIM (.060 IN.)
-
184606-939 SHIELD, ACTUATORSHIELD, ACTUATOR
-
190706-371 TRIM - 3 FTTRIM - 3 FT
-
200726-303 CLUTCH, DRIVEN - ASSEMBLYCLUTCH, DRIVEN - ASSEMBLY
-
210648-441 O-RINGO-RING
-
220648-715 WASHER, SHIM (.030 IN.)WASHER, SHIM (.030 IN.)
-
220648-716 WASHER, SHIM (.060 IN.)WASHER, SHIM (.060 IN.)
-
220648-714 WASHER, SHIM (.090 IN.)WASHER, SHIM (.090 IN.)
-
231702-114 ADJUSTER, SHEAVE (INC. 24)ADJUSTER, SHEAVE (INC. 24)
-
240648-788 ...WASHER, THRUST...WASHER, THRUST
-
251623-415 WASHERWASHER
-
268051-272 WASHER, LOCKWASHER, LOCK
-
271623-572 SCREW, CAPSCREW, CAP
-
288477-845 SCREW, MACHINESCREW, MACHINE
-
291702-018 CALIPER, BRAKE - ASSEMBLY (INC. 30-45)CALIPER, BRAKE - ASSEMBLY (INC. 30-45)
-
301623-713 ...BOLT, CARRIAGE - RIBBED...BOLT, CARRIAGE - RIBBED
-
311602-458 ...FITTING, BLEED...FITTING, BLEED
-
321602-461 ...PISTON...PISTON
-
331602-669 ...O-RING...O-RING
-
340702-563 ...PAD, BRAKE - SET (INC. 35-36)...PAD, BRAKE - SET (INC. 35-36)
-
351602-466 ......CLIP, ANTI-RATTLE......CLIP, ANTI-RATTLE
-
361602-467 ......CLIP, HAIRPIN......CLIP, HAIRPIN
-
371602-464 ...PIN, RETAINING - BRAKE PAD...PIN, RETAINING - BRAKE PAD
-
380602-729 ...O-RING, HOUSING...O-RING, HOUSING
-
392602-132 ...SPACER...SPACER
-
400402-165 ...WASHER...WASHER
-
411602-670 ...SCREW, CAP...SCREW, CAP
-
421602-671 ...SCREW, CAP...SCREW, CAP
-
432602-131 ...BEARING...BEARING
-
441602-463 ...SLEEVE, DRIVESHAFT...SLEEVE, DRIVESHAFT
-
451602-456 ...RING, RETAINING...RING, RETAINING
-
461602-978 FITTING, INLETFITTING, INLET
-
470630-287 PLATE, MOUNTING - SPEEDOMETER SENSORPLATE, MOUNTING - SPEEDOMETER SENSOR
-
480430-091 SENSOR, SPEEDOMETERSENSOR, SPEEDOMETER
-
498468-617 SCREW, MACHINESCREW, MACHINE
