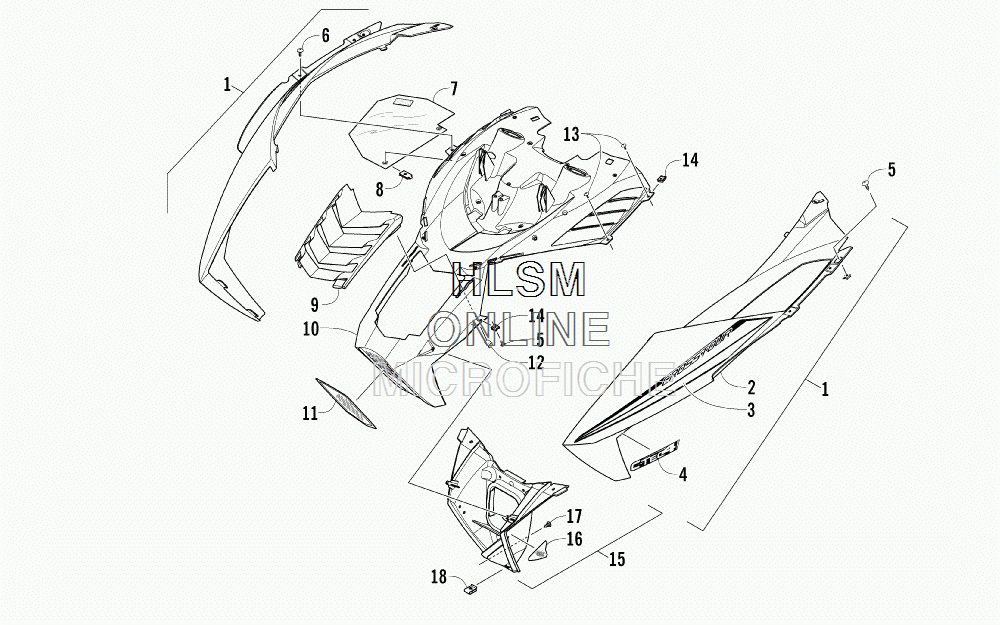

HOOD AND AIR INTAKE ASSEMBLY для Arctic Cat XF 7000 Crosstour - ORANGE [S2014X7UCTUSO] - 2014 года выпуска
-
№АртикулНазвание
-
14718-090 HOOD W/DECALS - RIGHT - ORANGE (INC. 2-4)HOOD W/DECALS - RIGHT - ORANGE (INC. 2-4)
-
14718-091 HOOD W/DECALS - LEFT - ORANGE (INC. 2-4)HOOD W/DECALS - LEFT - ORANGE (INC. 2-4)
-
26606-580 ...HOOD W/O DECALS - RIGHT - ORANGE...HOOD W/O DECALS - RIGHT - ORANGE
-
26606-581 ...HOOD W/O DECALS - LEFT - ORANGE...HOOD W/O DECALS - LEFT - ORANGE
-
30621-714 ...DECAL, HOOD - RIGHT...DECAL, HOOD - RIGHT
-
30621-715 ...DECAL, HOOD - LEFT...DECAL, HOOD - LEFT
-
40621-993 ...DECAL, HOOD - "C-TEC"...DECAL, HOOD - "C-TEC"
-
50623-784 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
61623-031 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
71712-899 SHIELD, HEAT - RIGHTSHIELD, HEAT - RIGHT
-
81623-030 CLIP, U-NUTCLIP, U-NUT
-
96606-388 GRILLE, INTERCOOLERGRILLE, INTERCOOLER
-
106606-510 PLENUM, INTAKE - UPPERPLENUM, INTAKE - UPPER
-
110608-696 SCREEN, VENTSCREEN, VENT
-
121623-694 CLIP, RETAININGCLIP, RETAINING
-
130623-797 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
141623-939 CLIP, U-NUTCLIP, U-NUT
-
155706-879 PLENUM, INTAKE - LOWER FRONT (INC. 16)PLENUM, INTAKE - LOWER FRONT (INC. 16)
-
160621-989 ...DECAL, REFLECTOR - AMBER...DECAL, REFLECTOR - AMBER
-
171623-129 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
181623-637 CLIP, U-NUTCLIP, U-NUT
