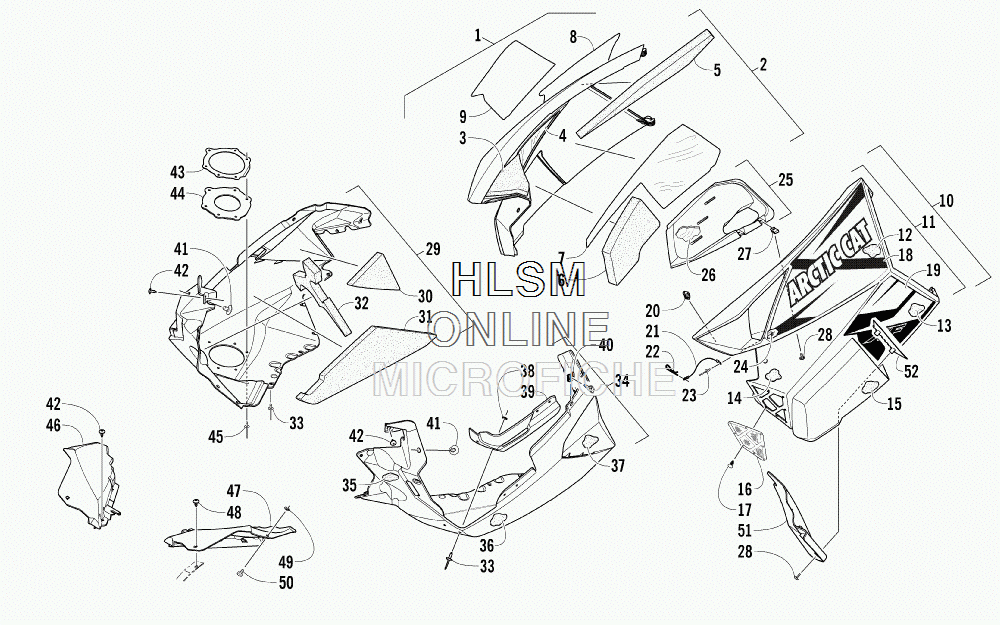

SKID PLATE AND SIDE PANEL ASSEMBLY для Arctic Cat XF 7000 LXR - BLACK [S2014XFULXUSB] - 2014 года выпуска
-
№АртикулНазвание
-
13718-916 PANEL, SIDE - RIGHT W/DECALS - BLACK (INC. 2-9)PANEL, SIDE - RIGHT W/DECALS - BLACK (INC. 2-9)
-
23718-312 ...PANEL, SIDE - RIGHT W/O DECALS - BLACK (INC. 3-7)...PANEL, SIDE - RIGHT W/O DECALS - BLACK (INC. 3-7)
-
30617-626 ......FOAM, SIDE PANEL - UPPER FRONT - RIGHT......FOAM, SIDE PANEL - UPPER FRONT - RIGHT
-
46606-414 ......FOIL, PROTECTIVE - MIDDLE - RIGHT......FOIL, PROTECTIVE - MIDDLE - RIGHT
-
50617-628 ......FOAM, SIDE PANEL - UPPER REAR - RIGHT......FOAM, SIDE PANEL - UPPER REAR - RIGHT
-
60617-632 ......FOAM, SIDE PANEL - LOWER FRONT - RIGHT......FOAM, SIDE PANEL - LOWER FRONT - RIGHT
-
76606-416 ......FOIL, PROTECTIVE - LOWER - RIGHT......FOIL, PROTECTIVE - LOWER - RIGHT
-
80621-636 ...DECAL, SIDE PANEL - UPPER - RIGHT...DECAL, SIDE PANEL - UPPER - RIGHT
-
90621-646 ...DECAL, SIDE PANEL - LOWER - RIGHT...DECAL, SIDE PANEL - LOWER - RIGHT
-
103718-897 PANEL, SIDE - LEFT W/DECALS - BLACK (INC. 11-19)PANEL, SIDE - LEFT W/DECALS - BLACK (INC. 11-19)
-
114718-101 ...PANEL, SIDE - LEFT W/O DECALS - BLACK (INC. 12-17)...PANEL, SIDE - LEFT W/O DECALS - BLACK (INC. 12-17)
-
120617-629 ......FOAM, SIDE PANEL - UPPER REAR - LEFT......FOAM, SIDE PANEL - UPPER REAR - LEFT
-
130617-681 ......FOAM, SIDE PANEL - LOWER FRONT - LEFT......FOAM, SIDE PANEL - LOWER FRONT - LEFT
-
140617-631 ......FOAM, SIDE PANEL - CENTER FRONT - LEFT......FOAM, SIDE PANEL - CENTER FRONT - LEFT
-
150617-635 ......FOAM, SIDE PANEL - LOWER REAR - LEFT......FOAM, SIDE PANEL - LOWER REAR - LEFT
-
162602-704 ......SCREEN, VENT......SCREEN, VENT
-
170623-269 ......CLIP, RETAINING......CLIP, RETAINING
-
180621-637 ...DECAL, SIDE PANEL - UPPER - LEFT...DECAL, SIDE PANEL - UPPER - LEFT
-
190621-647 ...DECAL, SIDE PANEL - LOWER - LEFT...DECAL, SIDE PANEL - LOWER - LEFT
-
201623-637 CLIP, U-NUTCLIP, U-NUT
-
210607-447 CABLECABLE
-
220605-283 CLIP, HAIRPINCLIP, HAIRPIN
-
238060-486 RIVETRIVET
-
248050-127 WASHERWASHER
-
251702-369 DUCT, AIR - CLUTCH (INC. 26)DUCT, AIR - CLUTCH (INC. 26)
-
266606-694 ...FOIL, PROTECTIVE...FOIL, PROTECTIVE
-
271623-030 CLIP, U-NUTCLIP, U-NUT
-
280623-797 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
293718-788 PLATE, SKID - RIGHT W/O DECALS - BLACK (INC. 30-32)PLATE, SKID - RIGHT W/O DECALS - BLACK (INC. 30-32)
-
300617-640 ...FOAM, SKID PLATE - UPPER REAR - RIGHT...FOAM, SKID PLATE - UPPER REAR - RIGHT
-
310617-638 ...FOAM, SKID PLATE - CENTER FRONT - RIGHT...FOAM, SKID PLATE - CENTER FRONT - RIGHT
-
320617-636 ...FOAM, SKID PLATE - UPPER FRONT - RIGHT...FOAM, SKID PLATE - UPPER FRONT - RIGHT
-
338061-708 RIVETRIVET
-
343718-789 PLATE, SKID - LEFT W/O DECALS - BLACK (INC. 35-39)PLATE, SKID - LEFT W/O DECALS - BLACK (INC. 35-39)
-
350617-637 ...FOAM, SKID PLATE - UPPER FRONT - LEFT...FOAM, SKID PLATE - UPPER FRONT - LEFT
-
360617-639 ...FOAM, SKID PLATE - CENTER FRONT - LEFT...FOAM, SKID PLATE - CENTER FRONT - LEFT
-
370617-641 ...FOAM, SKID PLATE - UPPER REAR - LEFT...FOAM, SKID PLATE - UPPER REAR - LEFT
-
380123-802 ...WASHER...WASHER
-
396606-613 ...PANEL, REINFORCEMENT...PANEL, REINFORCEMENT
-
402623-005 CLIP, RETAININGCLIP, RETAINING
-
416606-592 PIN, RETAININGPIN, RETAINING
-
421623-129 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
432612-685 PLATE, EXHAUST OUTLETPLATE, EXHAUST OUTLET
-
442612-964 SEAL, EXHAUST OUTLETSEAL, EXHAUST OUTLET
-
458061-510 RIVETRIVET
-
466606-342 FASCIA, FRONT RIGHT - BLACKFASCIA, FRONT RIGHT - BLACK
-
476606-579 FASCIA, FRONT LEFT - BLACKFASCIA, FRONT LEFT - BLACK
-
480623-784 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
492623-001 NUT, PUSH - OPTIONALNUT, PUSH - OPTIONAL
-
501623-999 SCREW, THUMB - OPTIONALSCREW, THUMB - OPTIONAL
-
512602-711 DEFLECTOR, AIRDEFLECTOR, AIR
-
522602-703 RETAINER, AIR DEFLECTORRETAINER, AIR DEFLECTOR
