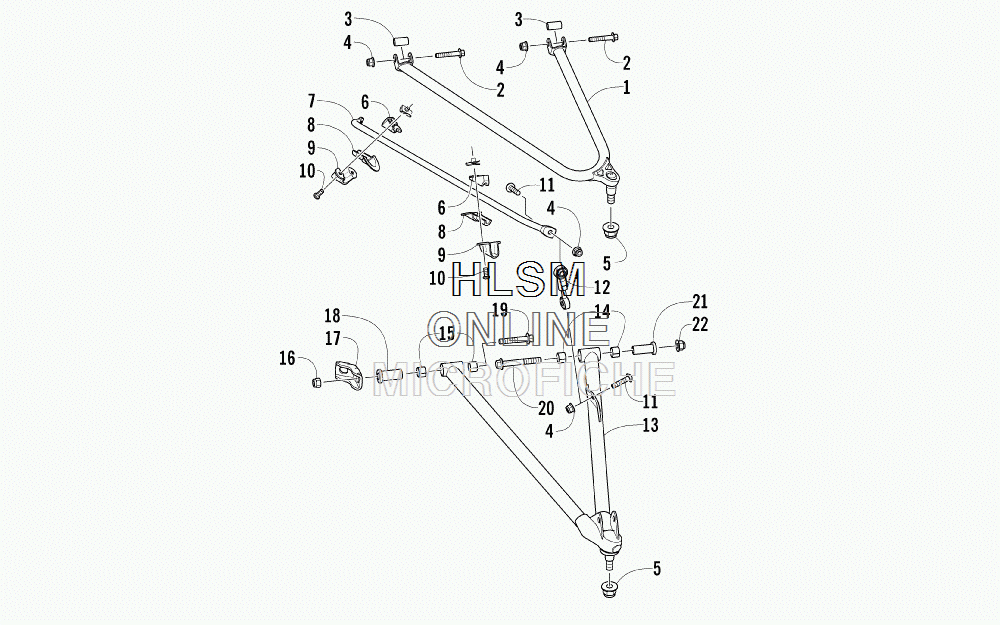

A-ARM AND SWAY BAR ASSEMBLY для Arctic Cat XF 8000 Crosstour - BLACK [S2014X8HCTUSB] - 2014 года выпуска
-
№АртикулНазвание
-
12703-786 A-ARM, UPPER RIGHT - BLACKA-ARM, UPPER RIGHT - BLACK
-
12703-787 A-ARM, UPPER LEFT - BLACKA-ARM, UPPER LEFT - BLACK
-
28408-845 SCREW, CAPSCREW, CAP
-
32603-841 AXLEAXLE
-
48427-802 NUT, LOCKNUT, LOCK
-
58427-202 NUT, LOCKNUT, LOCK
-
62603-944 BUSHINGBUSHING
-
72703-615 BAR, SWAYBAR, SWAY
-
82603-945 BUSHINGBUSHING
-
92603-857 BRACKET, MOUNTING - SWAY BARBRACKET, MOUNTING - SWAY BAR
-
108468-621 SCREW, MACHINESCREW, MACHINE
-
118476-830 SCREW, MACHINESCREW, MACHINE
-
122603-893 LINK, SWAY BARLINK, SWAY BAR
-
133703-124 A-ARM, LOWER RIGHT - BLACK (INC. 14-15)A-ARM, LOWER RIGHT - BLACK (INC. 14-15)
-
133703-125 A-ARM, LOWER LEFT - BLACK (INC. 14-15)A-ARM, LOWER LEFT - BLACK (INC. 14-15)
-
141603-895 ...BEARING...BEARING
-
152603-911 ...BEARING...BEARING
-
161623-965 NUT, LOCKNUT, LOCK
-
172603-909 BRACE, LOWER A-ARMBRACE, LOWER A-ARM
-
182603-916 AXLE, INNER - LOWER A-ARM - FRONTAXLE, INNER - LOWER A-ARM - FRONT
-
191623-953 SCREW, CAPSCREW, CAP
-
208409-075 SCREW, CAPSCREW, CAP
-
212603-543 AXLE, LOWER A-ARM - REARAXLE, LOWER A-ARM - REAR
-
228427-002 NUT, LOCKNUT, LOCK
