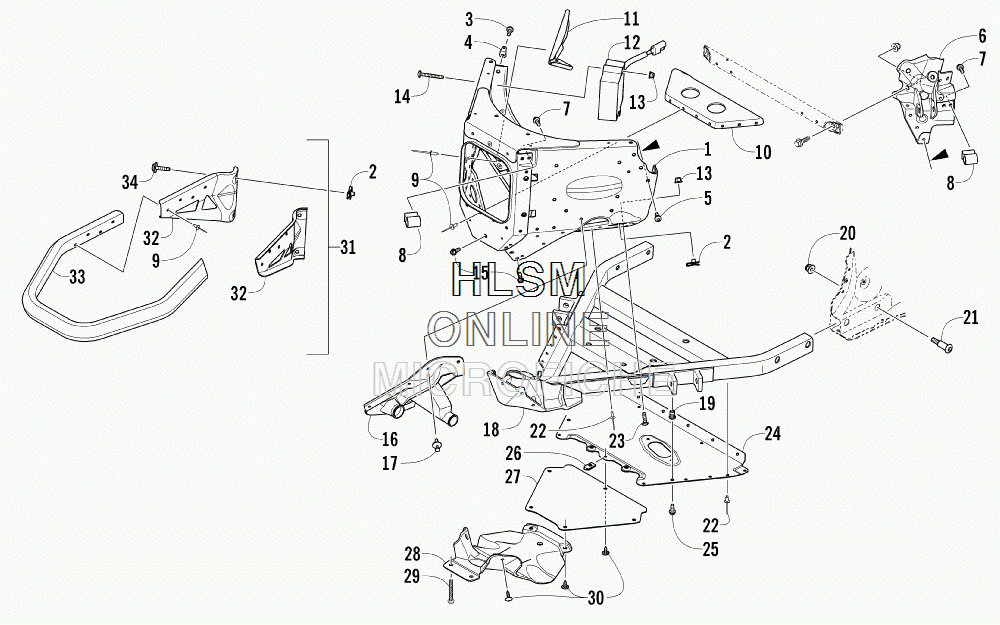

FRONT BUMPER AND FRAME ASSEMBLY для Arctic Cat XF 8000 Sno Pro Cross Country - BLACK - INTERNATIONAL [S2014X8HCCOSB] - 2014 года выпуска
-
№АртикулНазвание
-
11707-961 PANEL, FRONT - ASSEMBLY - BLACK (INC. 2-6)PANEL, FRONT - ASSEMBLY - BLACK (INC. 2-6)
-
20423-577 ...CLIP, U-NUT...CLIP, U-NUT
-
31623-683 ...SCREW, SELF-TAPPING...SCREW, SELF-TAPPING
-
42612-707 ...TAB, SPRING...TAB, SPRING
-
50423-538 ...SCREW, SELF-TAPPING...SCREW, SELF-TAPPING
-
61707-668 ...BRACKET, SHOCK MOUNT - UPPER RIGHT - BLACK...BRACKET, SHOCK MOUNT - UPPER RIGHT - BLACK
-
61707-669 ...BRACKET, SHOCK MOUNT - UPPER LEFT - BLACK...BRACKET, SHOCK MOUNT - UPPER LEFT - BLACK
-
78413-617 SCREW, CAPSCREW, CAP
-
81607-233 BRACKET, MOUNTING - UPPER A-ARMBRACKET, MOUNTING - UPPER A-ARM
-
98060-706 RIVETRIVET
-
100607-603 BRACKET, REINFORCEMENTBRACKET, REINFORCEMENT
-
110607-991 BRACKET, STEERING STOPBRACKET, STEERING STOP
-
120630-323 REGULATOR/RECTIFIERREGULATOR/RECTIFIER
-
138427-602 NUT, LOCKNUT, LOCK
-
148477-650 SCREW, MACHINESCREW, MACHINE
-
151623-959 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
161605-028 BOOT, STEERING - RIGHTBOOT, STEERING - RIGHT
-
161605-029 BOOT, STEERING - LEFTBOOT, STEERING - LEFT
-
170623-362 CLIP, RETAININGCLIP, RETAINING
-
181707-844 FRAME, FRONT - LOWERFRAME, FRONT - LOWER
-
191623-797 INSERTINSERT
-
208427-802 NUT, LOCKNUT, LOCK
-
211623-817 SCREW, SHOULDERSCREW, SHOULDER
-
228060-686 RIVETRIVET
-
238468-620 SCREW, MACHINESCREW, MACHINE
-
240607-983 BELLY PAN - CENTERBELLY PAN - CENTER
-
258476-520 SCREW, MACHINESCREW, MACHINE
-
261623-052 CLIP, U-NUTCLIP, U-NUT
-
271607-063 PANEL, ACCESSPANEL, ACCESS
-
286606-614 BELLY PAN - FRONTBELLY PAN - FRONT
-
291623-929 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
301623-129 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
311707-596 BUMPER, FRONT - ASSEMBLY - BLACKBUMPER, FRONT - ASSEMBLY - BLACK
-
321707-576 ...BRACKET, MOUNTING - BUMPER - RIGHT - BLACK...BRACKET, MOUNTING - BUMPER - RIGHT - BLACK
-
321707-577 ...BRACKET, MOUNTING - BUMPER - LEFT - BLACK...BRACKET, MOUNTING - BUMPER - LEFT - BLACK
-
331707-578 ...BUMPER, FRONT - BLACK...BUMPER, FRONT - BLACK
-
340423-609 SCREW, MACHINESCREW, MACHINE
