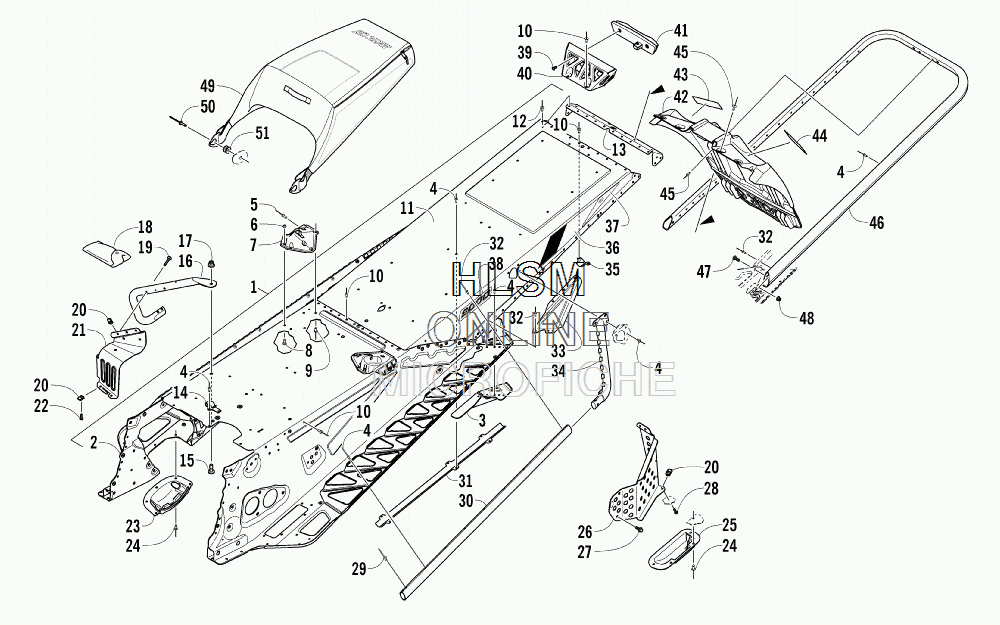

TUNNEL- REAR BUMPER- AND SNOWFLAP ASSEMBLY для Arctic Cat XF 8000 Sno Pro LTD - WHITE [S2014XFHLEUSW] - 2014 года выпуска
-
№АртикулНазвание
-
-2707-114 COMPLETE CHASSIS ASSEMBLY - WHITECOMPLETE CHASSIS ASSEMBLY - WHITE
-
12707-242 TUNNEL ASSEMBLY - WHITE (INC. 2-13)TUNNEL ASSEMBLY - WHITE (INC. 2-13)
-
22707-241 ...TUNNEL, FRONT - ASSEMBLY - WHITE (INC. 3-4)...TUNNEL, FRONT - ASSEMBLY - WHITE (INC. 3-4)
-
32707-246 ......BRACKET, MOUNTING - SUSPENSION - RIGHT - WHITE......BRACKET, MOUNTING - SUSPENSION - RIGHT - WHITE
-
32707-247 ......BRACKET, MOUNTING - SUSPENSION - LEFT - WHITE......BRACKET, MOUNTING - SUSPENSION - LEFT - WHITE
-
48060-686 ......RIVET......RIVET
-
51623-206 ...RIVET...RIVET
-
68422-502 ...NUT, LOCK...NUT, LOCK
-
71707-904 ...BRACKET, MOUNTING - REAR SPAR - RIGHT - WHITE...BRACKET, MOUNTING - REAR SPAR - RIGHT - WHITE
-
71707-905 ...BRACKET, MOUNTING - REAR SPAR - LEFT - WHITE...BRACKET, MOUNTING - REAR SPAR - LEFT - WHITE
-
88476-512 ...SCREW, MACHINE...SCREW, MACHINE
-
91623-257 ...RIVET...RIVET
-
108060-682 ...RIVET...RIVET
-
111707-839 ...TUNNEL, REAR - WHITE...TUNNEL, REAR - WHITE
-
128060-484 ...RIVET...RIVET
-
131707-834 ...END CAP, TUNNEL - WHITE...END CAP, TUNNEL - WHITE
-
140645-709 CLIP, ROUTINGCLIP, ROUTING
-
158476-820 SCREW, MACHINESCREW, MACHINE
-
161707-800 SUPPORT, FOOTREST - RIGHT - WHITESUPPORT, FOOTREST - RIGHT - WHITE
-
161707-801 SUPPORT, FOOTREST - LEFT - WHITESUPPORT, FOOTREST - LEFT - WHITE
-
178427-802 NUT, LOCKNUT, LOCK
-
180744-076 KIT, TOOLKIT, TOOL
-
198468-536 SCREW, MACHINESCREW, MACHINE
-
201623-637 CLIP, U-NUTCLIP, U-NUT
-
211707-802 FOOTREST - RIGHT - WHITEFOOTREST - RIGHT - WHITE
-
211707-803 FOOTREST - LEFT - WHITEFOOTREST - LEFT - WHITE
-
228470-516 SCREW, MACHINESCREW, MACHINE
-
231607-109 PROTECTOR, CHAIN CASEPROTECTOR, CHAIN CASE
-
248061-708 RIVETRIVET
-
250607-351 PROTECTOR, BRAKE DISCPROTECTOR, BRAKE DISC
-
262707-084 SHIELD, BRAKE DISC - WHITESHIELD, BRAKE DISC - WHITE
-
278408-613 SCREW, CAPSCREW, CAP
-
288470-520 SCREW, MACHINESCREW, MACHINE
-
291623-130 RIVETRIVET
-
301707-899 ROLL, TUNNEL - WHITEROLL, TUNNEL - WHITE
-
310630-309 PROTECTOR, HARNESS - TAILLIGHT EXTENSIONPROTECTOR, HARNESS - TAILLIGHT EXTENSION
-
321623-241 RIVETRIVET
-
331707-906 GUSSET, RUNNING BOARD - RIGHT - WHITEGUSSET, RUNNING BOARD - RIGHT - WHITE
-
331707-907 GUSSET, RUNNING BOARD - LEFT - WHITEGUSSET, RUNNING BOARD - LEFT - WHITE
-
341707-908 GUSSET, TUNNEL ROLL - RIGHT - WHITEGUSSET, TUNNEL ROLL - RIGHT - WHITE
-
341707-909 GUSSET, TUNNEL ROLL - LEFT - WHITEGUSSET, TUNNEL ROLL - LEFT - WHITE
-
350630-292 PROTECTOR, HARNESS - TAILLIGHTPROTECTOR, HARNESS - TAILLIGHT
-
360621-892 DECAL, TUNNEL - RIGHT - WHITEDECAL, TUNNEL - RIGHT - WHITE
-
360621-893 DECAL, TUNNEL - LEFT - WHITEDECAL, TUNNEL - LEFT - WHITE
-
370621-990 DECAL, REFLECTOR - REDDECAL, REFLECTOR - RED
-
380621-862 DECAL, TUNNEL - "8000" - WHITEDECAL, TUNNEL - "8000" - WHITE
-
398470-512 SCREW, MACHINESCREW, MACHINE
-
400730-185 BRACKET, MOUNTING - TAILLIGHT - WHITEBRACKET, MOUNTING - TAILLIGHT - WHITE
-
410609-898 TAILLIGHT, LEDTAILLIGHT, LED
-
426606-394 SNOWFLAPSNOWFLAP
-
435611-852 DECAL, WARNING - TOWING (FRENCH)DECAL, WARNING - TOWING (FRENCH)
-
445611-853 DECAL, WARNING - TOWING (ENGLISH)DECAL, WARNING - TOWING (ENGLISH)
-
458061-706 RIVETRIVET
-
461707-818 BUMPER, REAR - BLACKBUMPER, REAR - BLACK
-
478476-620 SCREW, MACHINESCREW, MACHINE
-
488427-602 NUT, LOCKNUT, LOCK
-
496606-600 SADDLEBAGSADDLEBAG
-
508060-630 RIVETRIVET
-
511623-940 MOUNT, SADDLEBAGMOUNT, SADDLEBAG
