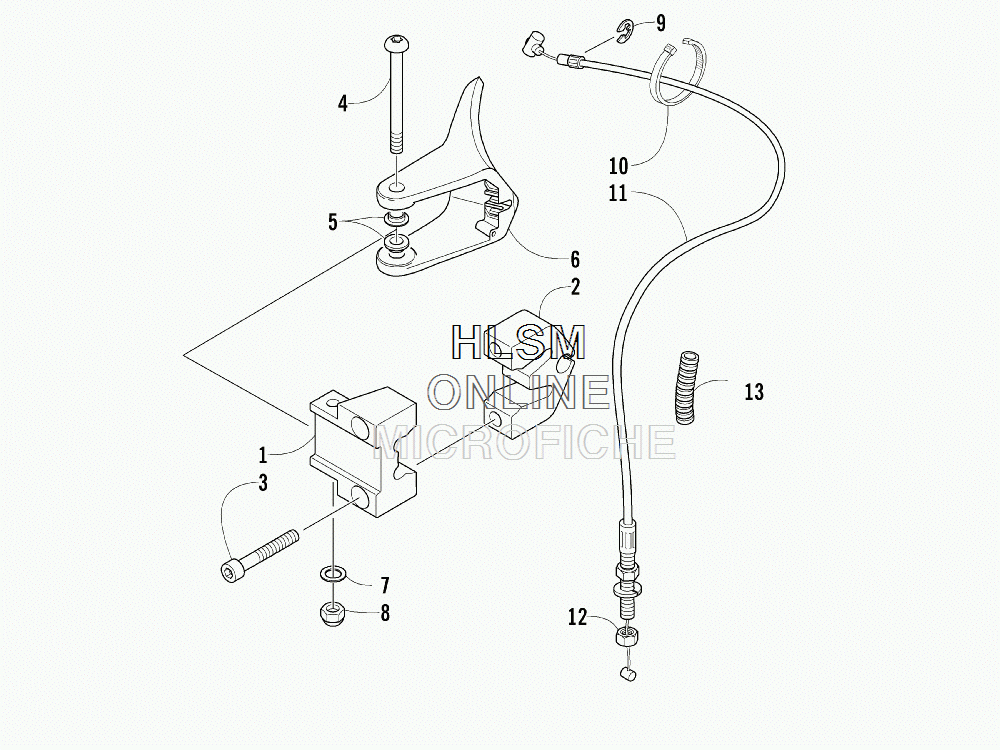

THROTTLE CONTROL ASSEMBLY для Arctic Cat ZR 6000 Cross Country Sno Pro R - GREEN - INTERNATIONAL [S2014ACDCCUSG] - 2014 года выпуска
-
№АртикулНазвание
-
10605-383 BLOCK, MOUNTING - THROTTLE LEVER - FRONTBLOCK, MOUNTING - THROTTLE LEVER - FRONT
-
20605-384 BLOCK, MOUNTING - THROTTLE LEVER - REARBLOCK, MOUNTING - THROTTLE LEVER - REAR
-
38005-494 SCREW, CAPSCREW, CAP
-
40609-789 SCREW, SHOULDERSCREW, SHOULDER
-
50609-038 SEAL, THROTTLE LEVERSEAL, THROTTLE LEVER
-
60609-481 LEVER, THROTTLELEVER, THROTTLE
-
71623-616 WASHERWASHER
-
80609-790 NUT, CAPNUT, CAP
-
90123-231 RING, RETAININGRING, RETAINING
-
100123-811 TIE, CABLE - 4 IN.TIE, CABLE - 4 IN.
-
100123-788 TIE, CABLE - 8 IN.TIE, CABLE - 8 IN.
-
110687-238 CABLE, THROTTLE (INC. 12)CABLE, THROTTLE (INC. 12)
-
120623-464 ...NUT, LOCKING - THROTTLE CABLE...NUT, LOCKING - THROTTLE CABLE
-
131619-221 CONDUIT, HIGH TEMPERATURECONDUIT, HIGH TEMPERATURE
