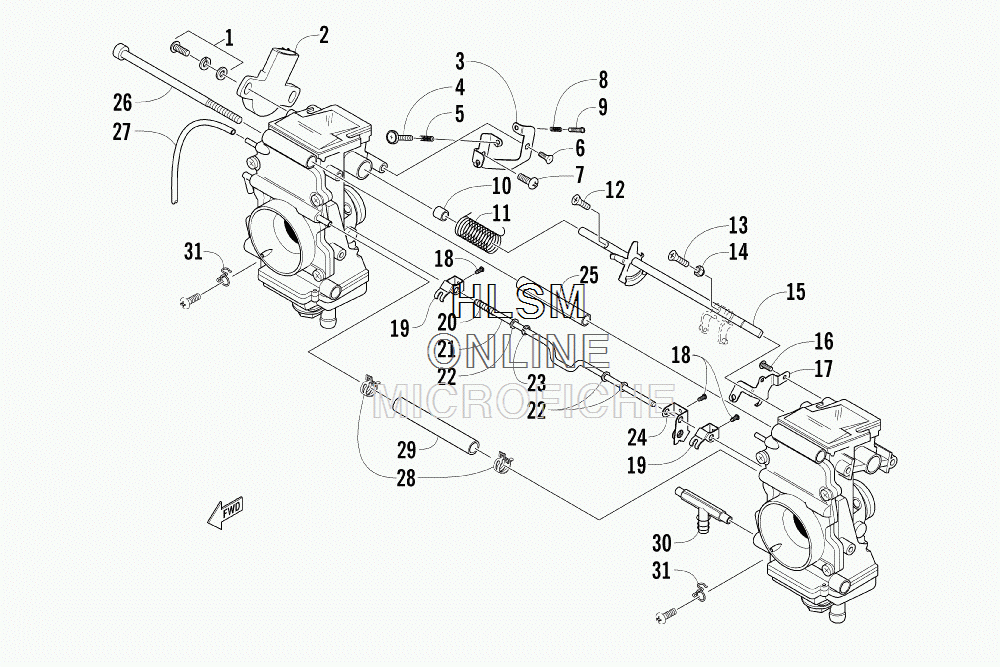

CARBURETOR - EXTERNAL PARTS для Arctic Cat ZR 6000 Sno Cross Sno Pro R - GREEN [S2014ACDPRUSG] - 2014 года выпуска
-
№АртикулНазвание
-
16506-075 SCREW W/WASHERSSCREW W/WASHERS
-
26506-311 THROTTLE POSITION SENSOR ASSEMBLYTHROTTLE POSITION SENSOR ASSEMBLY
-
36506-331 BRACKET, MOUNTING - IDLE SPEED SCREWBRACKET, MOUNTING - IDLE SPEED SCREW
-
46506-061 SCREW, IDLE SPEEDSCREW, IDLE SPEED
-
56506-062 SPRINGSPRING
-
66506-063 SCREW, MACHINESCREW, MACHINE
-
76506-064 SCREW, MACHINESCREW, MACHINE
-
86506-056 SPRINGSPRING
-
96506-134 SCREW, THROTTLE STOPSCREW, THROTTLE STOP
-
106506-048 SPACERSPACER
-
116506-330 SPRING, THROTTLESPRING, THROTTLE
-
126506-046 SCREW, MACHINESCREW, MACHINE
-
136506-042 SCREW, LEVER RINGSCREW, LEVER RING
-
146506-041 RING, LEVERRING, LEVER
-
156506-412 SHAFT, THROTTLE LEVER - ASSEMBLYSHAFT, THROTTLE LEVER - ASSEMBLY
-
166506-085 SCREW, MACHINESCREW, MACHINE
-
176506-326 BRACKET, RETAININGBRACKET, RETAINING
-
186506-066 SCREW, MACHINESCREW, MACHINE
-
196506-333 LEVER, STARTERLEVER, STARTER
-
206506-082 SPRINGSPRING
-
216506-372 SHAFTSHAFT
-
226506-081 WASHERWASHER
-
236506-084 E-CLIPE-CLIP
-
246506-375 LEVER, STARTERLEVER, STARTER
-
256506-152 SPACERSPACER
-
266506-065 SCREW, CAPSCREW, CAP
-
270770-333 HOSE, VENTHOSE, VENT
-
286506-338 CLAMP, HOSECLAMP, HOSE
-
296506-423 HOSEHOSE
-
306506-127 T-FITTINGT-FITTING
-
316506-317 CLIP, RETAININGCLIP, RETAINING
