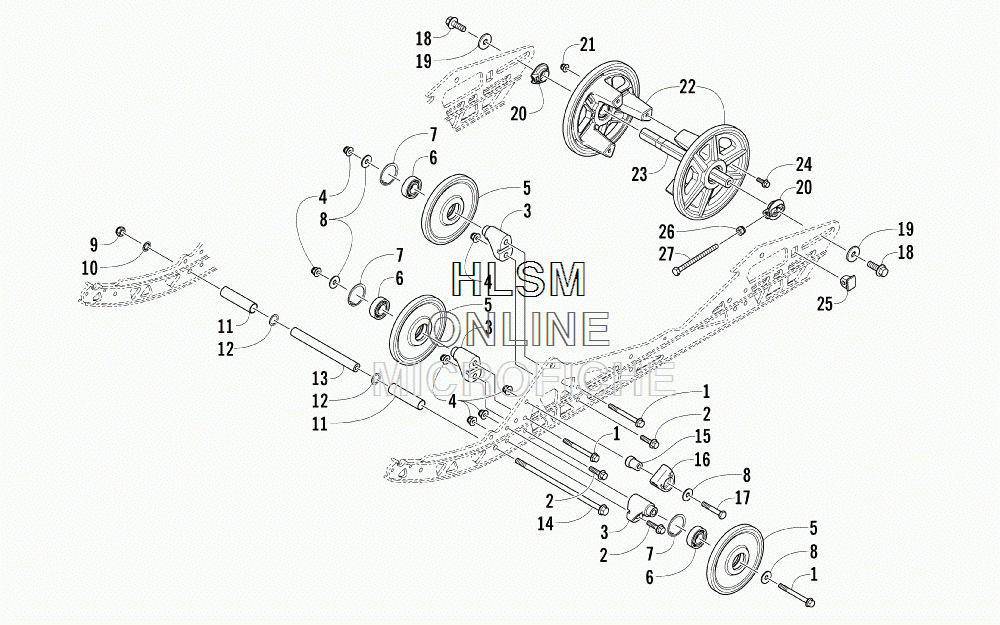

IDLER WHEEL ASSEMBLY для Arctic Cat ZR 7000 LXR - BLACK [S2014ZRULXUSB] - 2014 года выпуска
-
№АртикулНазвание
-
18408-880 SCREW, CAP-HFH M8X1.25X80 CL8.8 Z & YSCREW, CAP-HFH M8X1.25X80 CL8.8 Z & Y
-
28408-830 SCREW, CAP-HFH M8X1.25X30 CL8.8 Z & YSCREW, CAP-HFH M8X1.25X30 CL8.8 Z & Y
-
33604-004 BLOCK, MOUNTING - IDLER WHEELBLOCK, MOUNTING - IDLER WHEEL
-
48427-802 NUT, LOCKNUT, LOCK
-
53604-807 WHEEL, IDLER (INC. 6-7)WHEEL, IDLER (INC. 6-7)
-
63604-033 ...BEARING...BEARING
-
70623-946 ...RING, RETAINING...RING, RETAINING
-
88450-133 WASHERWASHER
-
98422-002 NUT, LOCKNUT, LOCK
-
101623-992 WASHER, INTERNAL TOOTH LOCKWASHER, INTERNAL TOOTH LOCK
-
113604-083 SPACER, SHOCK - FRONT ARMSPACER, SHOCK - FRONT ARM
-
120623-912 WASHERWASHER
-
133604-269 AXLEAXLE
-
141423-064 SCREW, CAPSCREW, CAP
-
153604-204 BLOCK, SLIDEBLOCK, SLIDE
-
162604-515 SLIDE, SPRINGSLIDE, SPRING
-
178408-850 SCREW, CAPSCREW, CAP
-
188408-031 SCREW, CAPSCREW, CAP
-
191623-931 WASHERWASHER
-
203604-641 BUSHING, ADJUSTERBUSHING, ADJUSTER
-
218427-602 NUT, LOCKNUT, LOCK
-
223604-643 WHEEL, IDLERWHEEL, IDLER
-
233604-640 AXLE, REARAXLE, REAR
-
248408-620 SCREW, CAPSCREW, CAP
-
253604-647 ADJUSTER, TRACKADJUSTER, TRACK
-
268422-802 NUT, LOCKNUT, LOCK
-
271623-682 SCREW, CAPSCREW, CAP
